24 Rockwell Automation Publication CC-QS034C-EN-P - March 2015
Chapter 1 PowerFlex Compact-class AC Drive Setup

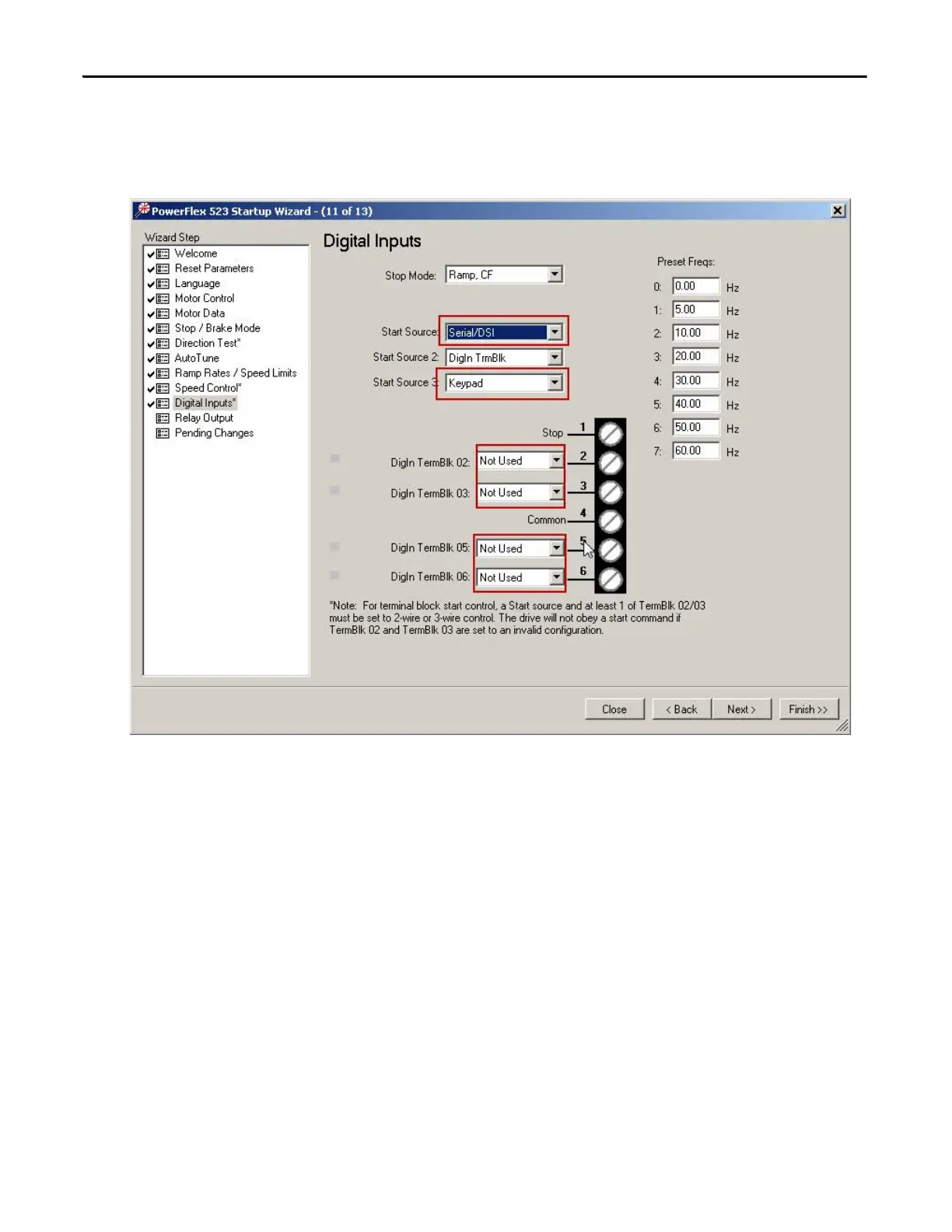

9. When the Digital Inputs step appears, from the Start Source pull-down menu, choose Serial/DSI as the Start Source.
10. To avoid a conflict with the Start Source choice, from the Start Source 3 pull-down menu, choose Keypad.
11. From the DignIn TermBlk xx pull-down menus, choose Not Used.
12. Continue the Startup Wizard steps to complete your drive commissioning.
