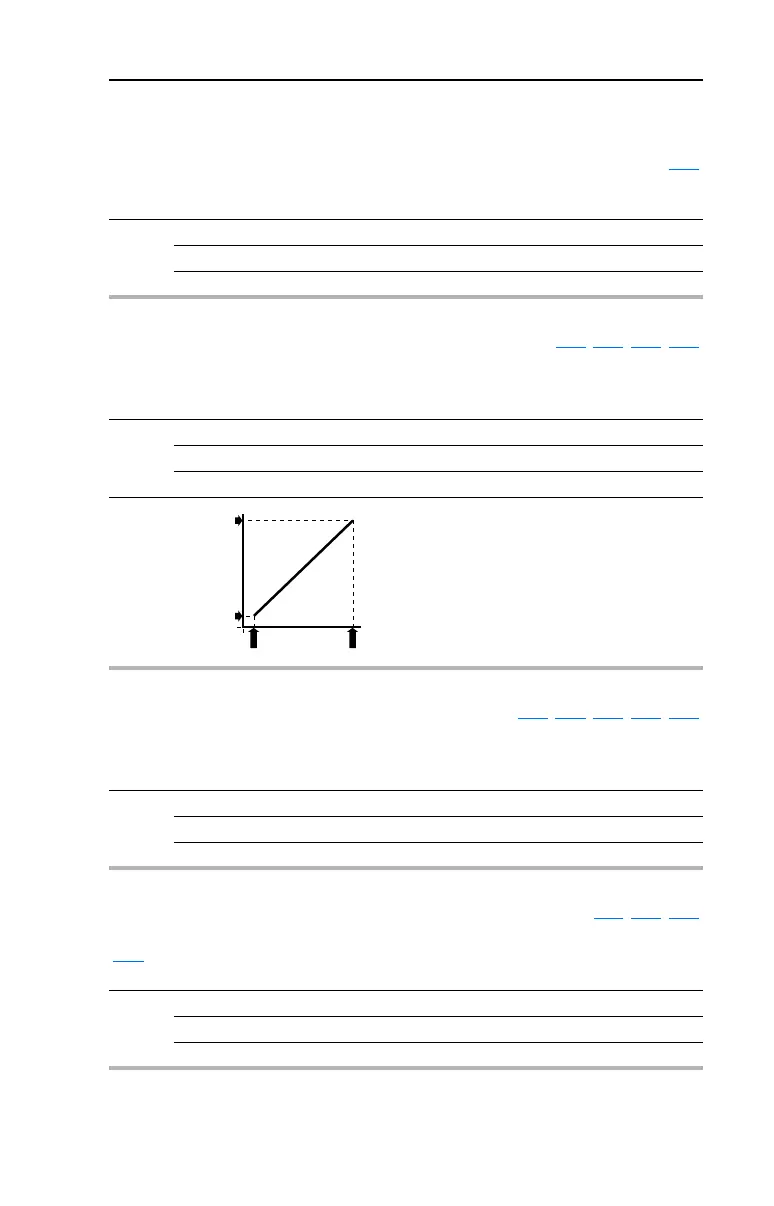

Programming and Parameters 3-33
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E
Advanced Program Group (continued)
A109 [Anlg Out Setpt] Related Parameter(s): A065
When A065 [Analog Out Sel] is set to option 18, 19 or 20, this parameter sets the percentage of
analog output desired.
Values Default: 0.0%
Min/Max: 0.0/100.0%
Display: 0.1%
A110 [Anlg In 0-10V Lo] Related Parameter(s): d020, P034, P038, A122
Sets the analog input level that corresponds to P034 [Minimum Freq] if a 0-10V input is used by P038
[Speed Reference].
Analog inversion can be accomplished by setting this value larger than A111 [Anlg In 0-10V Hi].
Values Default: 0.0%
Min/Max: 0.0/100.0%
Display: 0.1%
0
P035 [Maximum Freq]
P034 [Minimum Freq]
A110 [Anlg In 0-10V Lo] A111 [Anlg In 0-10V Hi]
0
Speed Reference
A111 [Anlg In 0-10V Hi] Related Parameter(s): d020, P035, P038, A122, A123
Sets the analog input level that corresponds to P035 [Maximum Freq] if a 0-10V input is used by P038
[Speed Reference].
Analog inversion can be accomplished by setting this value smaller than A110 [Anlg In 0-10V Lo].
Values Default: 100.0%
Min/Max: 0.0/100.0%
Display: 0.1%
A112 [Anlg In4-20mA Lo] Related Parameter(s): d021, P034, P038
Sets the analog input level that corresponds to P034 [Minimum Freq] if a 4-20mA input is used by
P038
[Speed Reference].
Analog inversion can be accomplished by setting this value larger than A113 [Anlg In4-20mA Hi].
Values Default: 0.0%
Min/Max: 0.0/100.0%
Display: 0.1%
22B-UM001.book Page 33 Tuesday, May 30, 2017 5:22 PM
