ROCON DeltaPoint Jr - Appendix; Specifications for DeltaPoint Jr

20
ROCON LLC

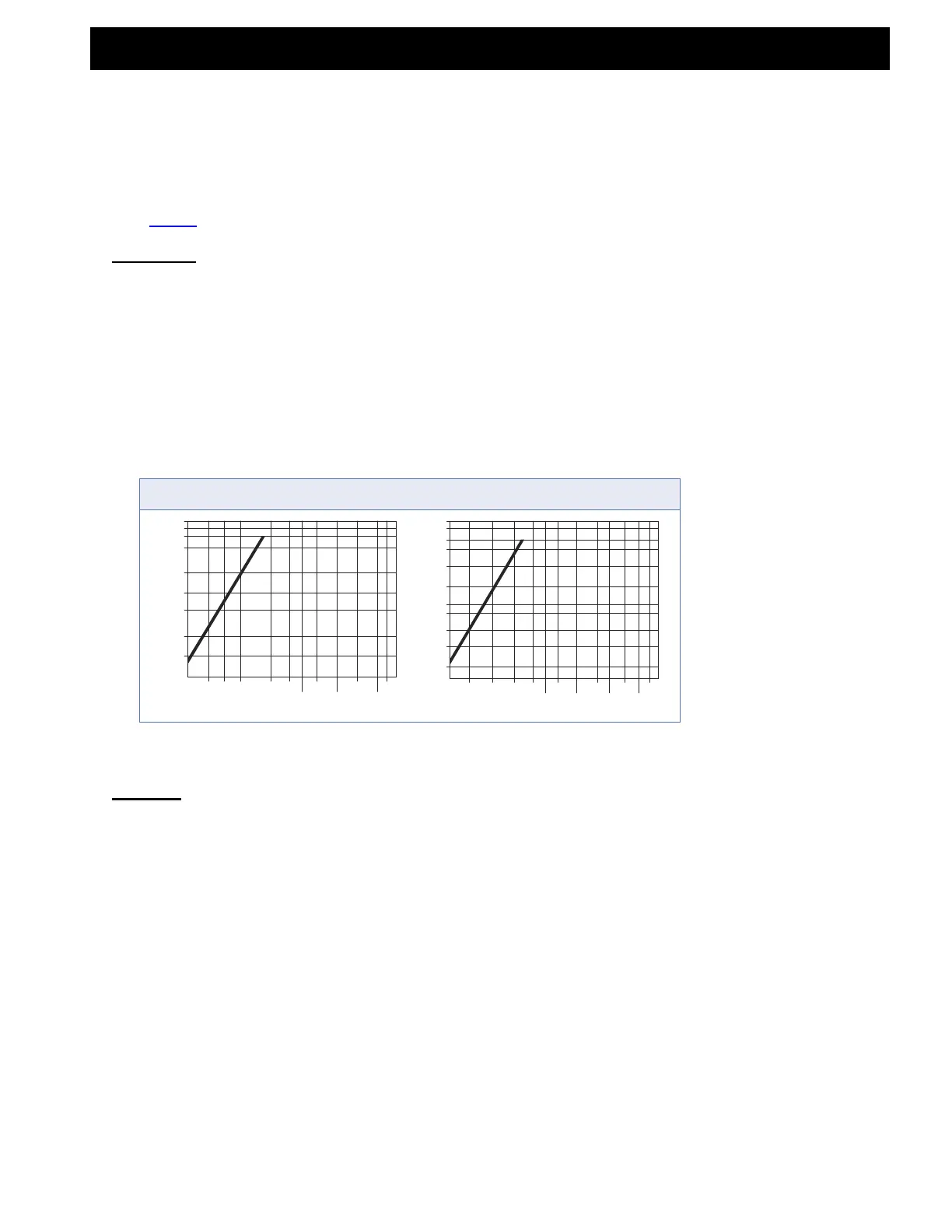

PRESSURE DROP CHARTS
12
10
8
5
2
1
.5
.2
.1
.05
.3
.6 1 2 5 10 25 100 250
15 50 200 300
FLOW (GPM)
1000
750
500
350
200
100
50
35
20
10
5
3.5
2 5 10 20 50 200 600 1200
30 100 300 800
FLOW (LPM)
APPENDIX
Specifications for DeltaPoint Jr
(See page 4 for complete device specifications)
Mechanical
Maximum operating pressure: 190 PSIG (12.9 Bar)
Minimum operating pressure: See Chart
Maximum operating temperature: 210 °F (99 °C) Fluid
Minimum operating temperature: 40 °F (4 °C) Fluid
Maximum Flow: 4.0 GPM (15 LPM)
Minimum Flow: 0.4 GPM (1.5 LPM)
Wetted Parts: Brass, PVDF and Viton
Power Requirement: 10–30 VDC @ 80 mA
Display: 3-digit LED digital display, 0.3” high
Electrical
Accuracy: ± 2% full-scale (± 0.3 LPM)
Repeatability: 0.25% of actual flow
Alarm Output: Solid-state relay rated to 125 mA @ VDC, up to 185 °F (85 °C);
50 mA @ 30 VDC between 186-210 °F (86–99 °C)
Alarm Deadband: 2.5% of full-scale
Alarm State: NO (24VDC) or NC (0VDC) with internal 2K pull-up resistor (factory
setting ONLY)
Electrical Connection: Direct cable to junction box
