INSTALLATION
There are no upstream or downstream piping requirements to achieve proper operation. Refer to page 22
to review requested water flow test using 90 degree elbow. The unit should be installed on the fence line
for best results. The unit can be installed in any position as long as good piping installation requirements
are adhered to. Unions of the same pipe size and full ported isolation valves may be installed for ease of
servicing the unit and shutting off the water. Teflon® tape or pipe sealant can be used in mounting the
unit to the piping system. Teflon® tape, if not applied properly to the connecting pipe, can become caught
on the bluff and affect the flow measurement.
Piping systems should be filled slowly to prevent water hammer from damaging sensor.
Hold Down hole pattern - 2 holes, 5/16-inch (8 mm) diameter, inline and 6 3/16 inches (157 mm) apart.
Porting – Supply and Return water ports - ¾ NPTF,
To Cell and From Cell – ½ NPTF
Flow path and Port Identification located switch box cover.
Electrical Circuit – See page 10

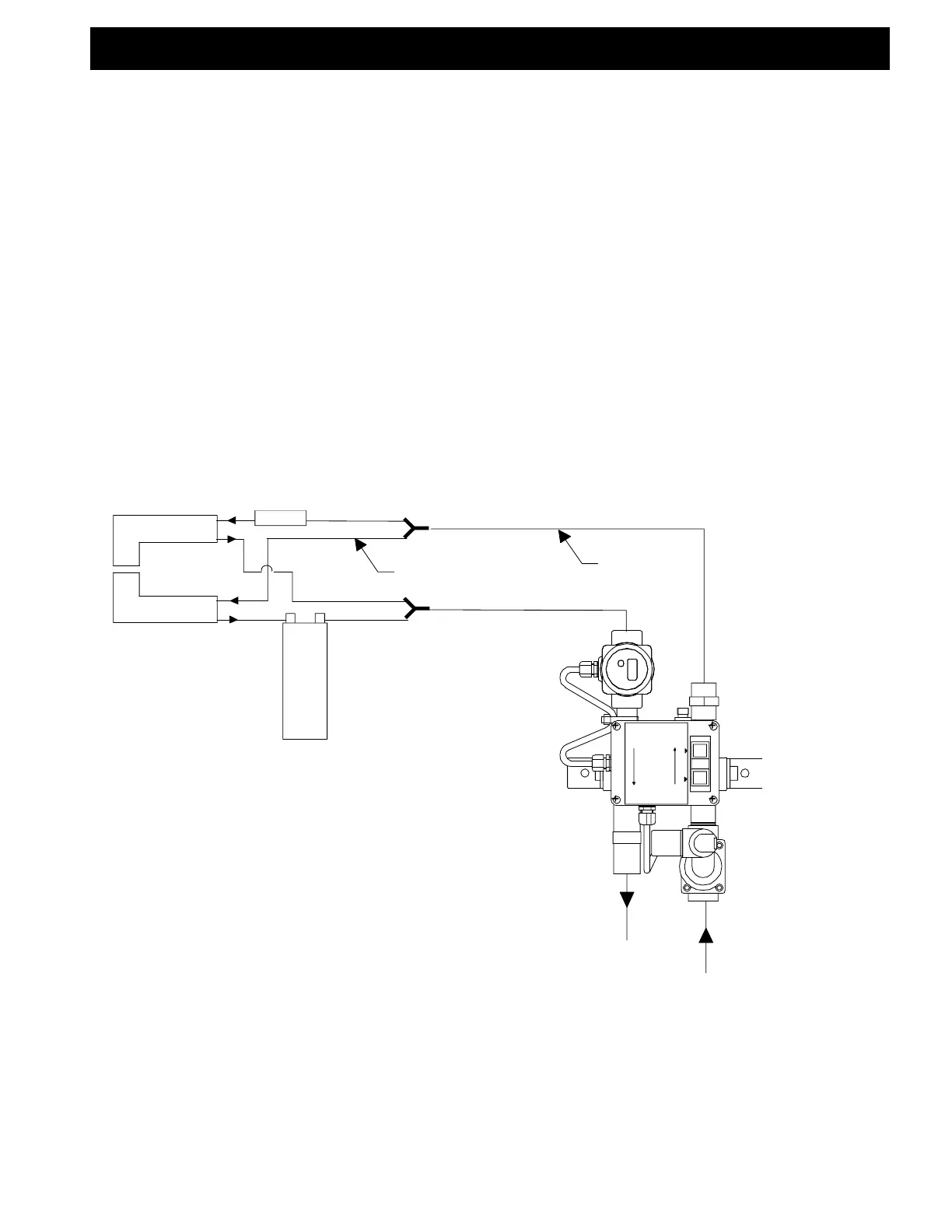

Suggested Hose Dress:
