Chapter 1
20
CONNECTING THE POWER CORD,
EXPRESSION PEDAL AND SPEAKERS

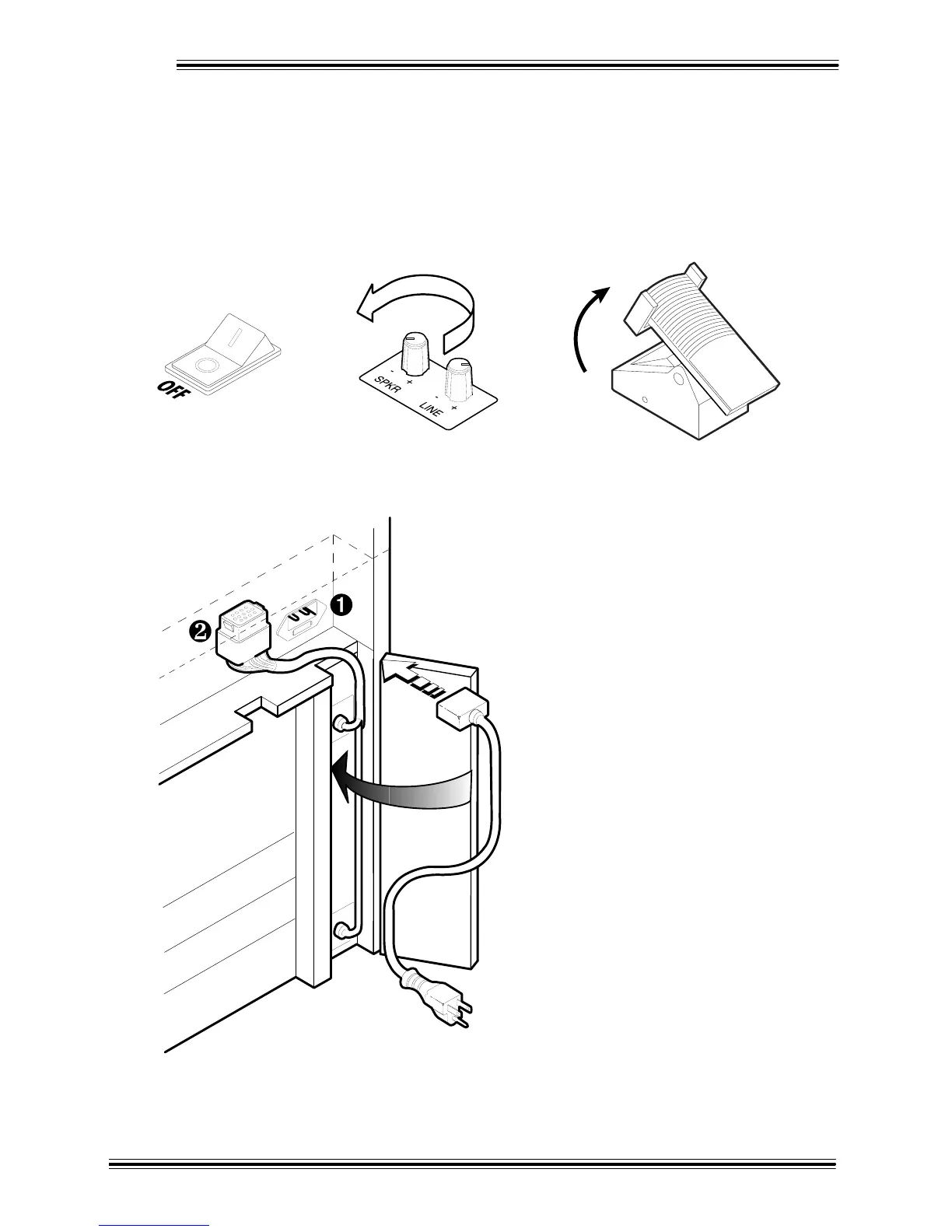

Be sure the [Power] switch (on the far left-hand side of the panel) is in the OFF position. Also be sure the
[SPKR] knob (main volume) (just below the Power switch) is at the minimum position and that the
Expression pedal is in the full-up (minimum) position:
Connect the included AC power cord to the MAIN POWER inlet on the rear panel of the instrument; tuck
the power cord into the channel in the leg of the stand (but don't close the cover just yet):
Ê MAIN POWER connection
Ë Speaker / Expression Pedal /
Pedalboard connection.
