• Current capability on +AUX: typically 1A, 2A maximum, fuse less electronic shutdown at 2.2A,
automatic restore.
I
NPUTS
• 6 fully programmable EOL zones;
MAIN BOARD OUTPUTS
• 2 “open-collector” outputs, with negative trigger (NPN), max. 50mA;
• 1 “open-collector” supervised siren output with positive trigger (PNP) (current capability on +BELL:
typically 1A, 2A maximum, fuse less electronic shutdown at 2.2A, automatic restore)
Note: Current capability and protections for the auxiliary power supply (+AUX) and for the bell control output (+BELL) as well are
valid only if the control panel is powered both from the AC source (220Vac) and the backup battery, too.
2. KEYPADS
Within protected area, you can install up to 4 keypads, one for each and every entry/exit door.
KEYPAD TYPES
The next keypads are available:
KP-064P: keypad with 6-zone LEDs and 4 status LEDs.
KP-064EP: keypad with 6-zone LEDs, 4 status LEDs and scrolling keys.

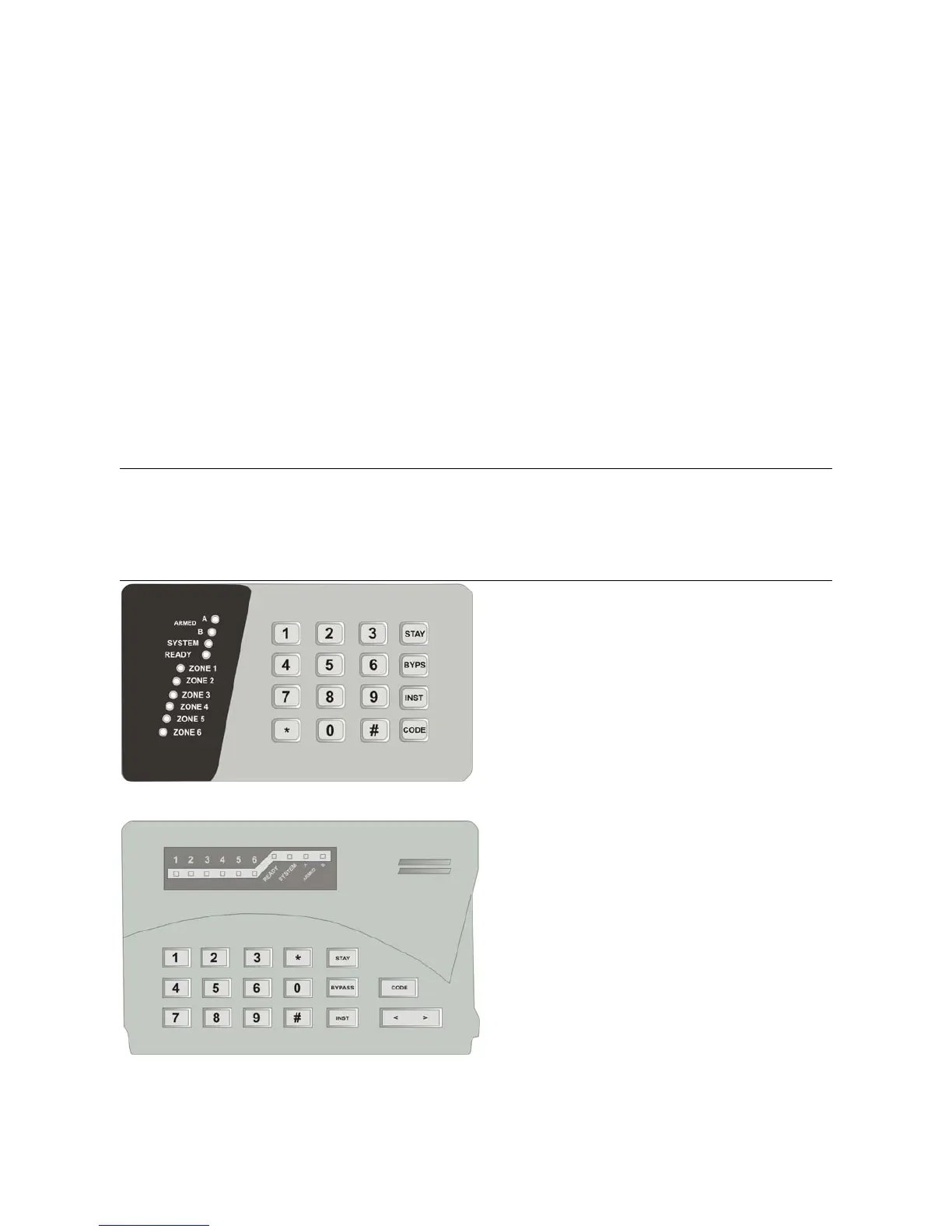

KEYPAD LAYOUT
KP-064P
KP-064EP
