Roger Technology CTRL User Manual

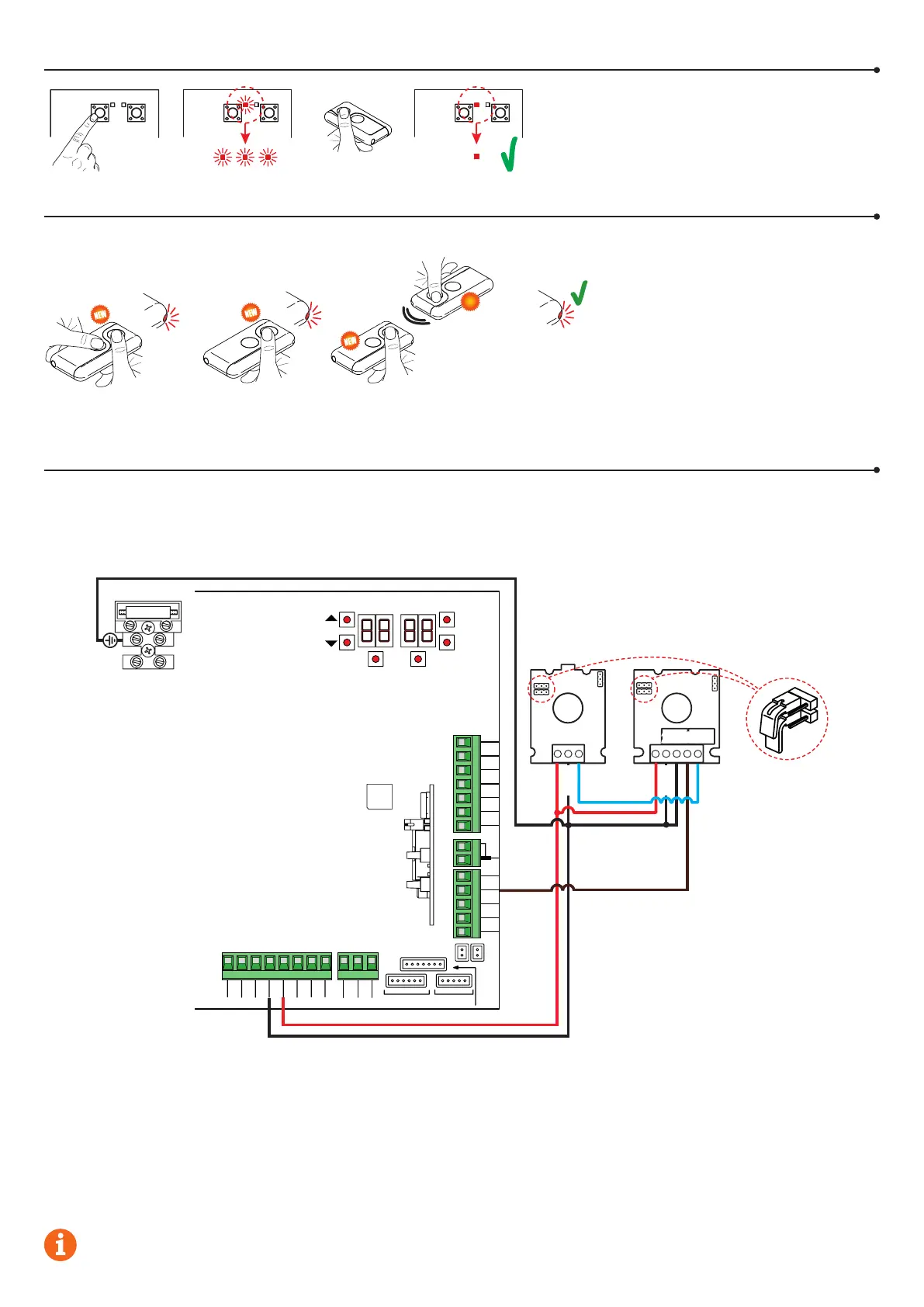

7. Programming a NEW transmitter
8. Copying a transmitter
x5 s
x3 s
x1 s
A
A
A
A
B
OLD
P1
L1 L2
P2 P1
L1 L2
P2
ON
P1
L1 L2
P2
1 click
1. Press channel P1 (P2) of the receiver.
2. When LED L1 (L2) ashes 3 times (or 4 times
with rolling code function), press any button on
the transmitter.
3. If LED L1 (L2) remains steadily lit the transmitter
has been stored correctly.
1. Press buttons A and B on the NEW transmitter
simultaneously.
2. The LED ashes for 5 s.
3. Hold button (A) only on the NEW transmitter
you want to store.
4. The LED ashes 3 s.
5. Hold the previously stored transmitter as close
as possible to the NEW transmitter.
6. Press button (A) on the OLD transmitter.
7. The LED lights for 1 s to conrm that the copy
procedure was successful.
This document is a basic quick guide for the initial installation of a barrier.
For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the website
www.rogertechnology.it
9. Photocells grounding connection
Grounding connection negative terminal (COM) photocells series F4ES/F4S or other than Roger Technology
In case of malfunction, or failure to intervene in case of dimming, or continuous detection, or abnormal behaviour of the automation (gate, overhead door,
barrier, etc.), it is advisable to connect the negative terminal (COM) of the photocells to the grounding of the system.
PROG TEST
+
-
RECEIVER CARD
ENC2
ENC1
LOCKS
LED LIGHT
COM +24V +ES +LAM COM COM LNA LNB +SC
10 11 12 13 14 15 16 17 18 19 20
+LUCI
ST
COM
COS
FT
COM
ANT
21 22 23 24 25
COM
PED
PP
CH
AP
28 29 30 31 32
ORO
33
COM
3426 27
RX
TX
1 2 3
1 2 345
MASTER
F4
COM(-)
COM(-)
COM(-)
COM(-)
