This document is a basic quick guide for the initial installation of a BRUSHLESS swing gate motor.
For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the
website www.rogertechnology.it
7. Programming a NEW transmitter
8. Copying a transmitter
P1
L1 L2
P2 P1
L1 L2
P2
ON
P1
L1 L2
P2
1 click
x5 s
x3 s
x1 s
A
A
A
A
B
OLD
1. Press channel P1 (P2) of the receiver.
2. When LED L1 (L2) ashes 3 times (or 4 times
with rolling code function), press any button
on the transmitter.
3. If LED L1 (L2) remains steadily lit the
transmitter has been stored correctly.
1. Press buttons A and B on the NEW
transmitter simultaneously.
2. The LED ashes for 5 s.
3. Hold button (A) only on the NEW transmitter
you want to store.
4. The LED ashes 3 s.
5. Hold the previously stored transmitter as
close as possible to the NEW transmitter.
6. Press button (A) on the OLD transmitter.
7. The LED lights for 1 s to conrm that the copy
procedure was successful.

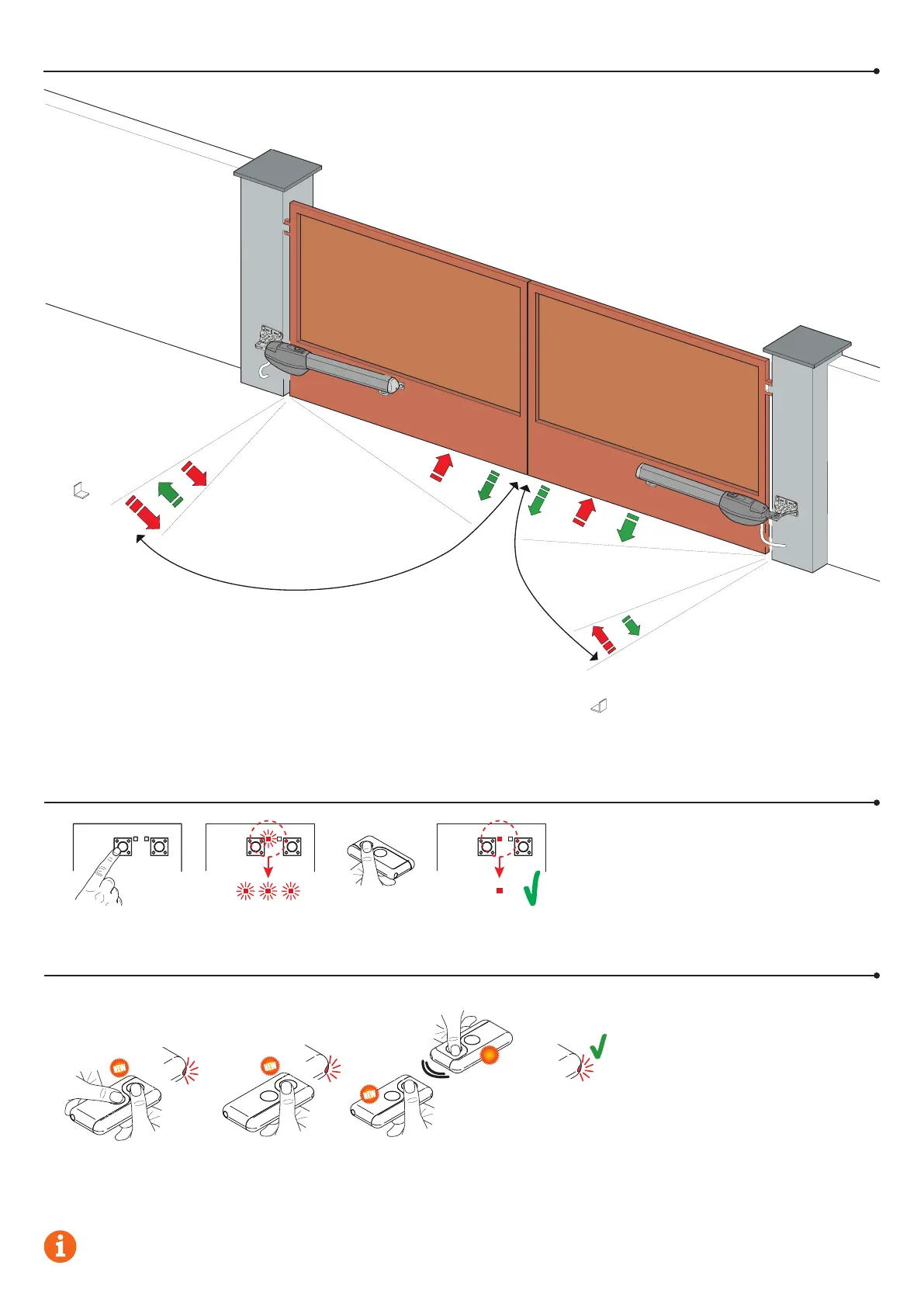

6. Setting basic parameters
31 Motor torque during open/close manoeuvre
32 Motor torque during deceleration
33 Motor torque boost at start of manoeuvre
34 Initial acceleration
when opening
34 Initial acceleration
when closing
34 Initial acceleration when closing
11 MOTOR 1
deceleration space
12 MOTOR 2 deceleration space
26 Opening delay
of MOTOR 1
14 Position control
13 Position control
13 Position control
14 Position control
25 Opening delay
of MOTOR 2
11 MOTOR 1
deceleration space
12 MOTOR 2
deceleration space
34 Initial acceleration
when opening
MOTOR 1
MOTOR 2
