Roger Technology H70/200AC User Manual

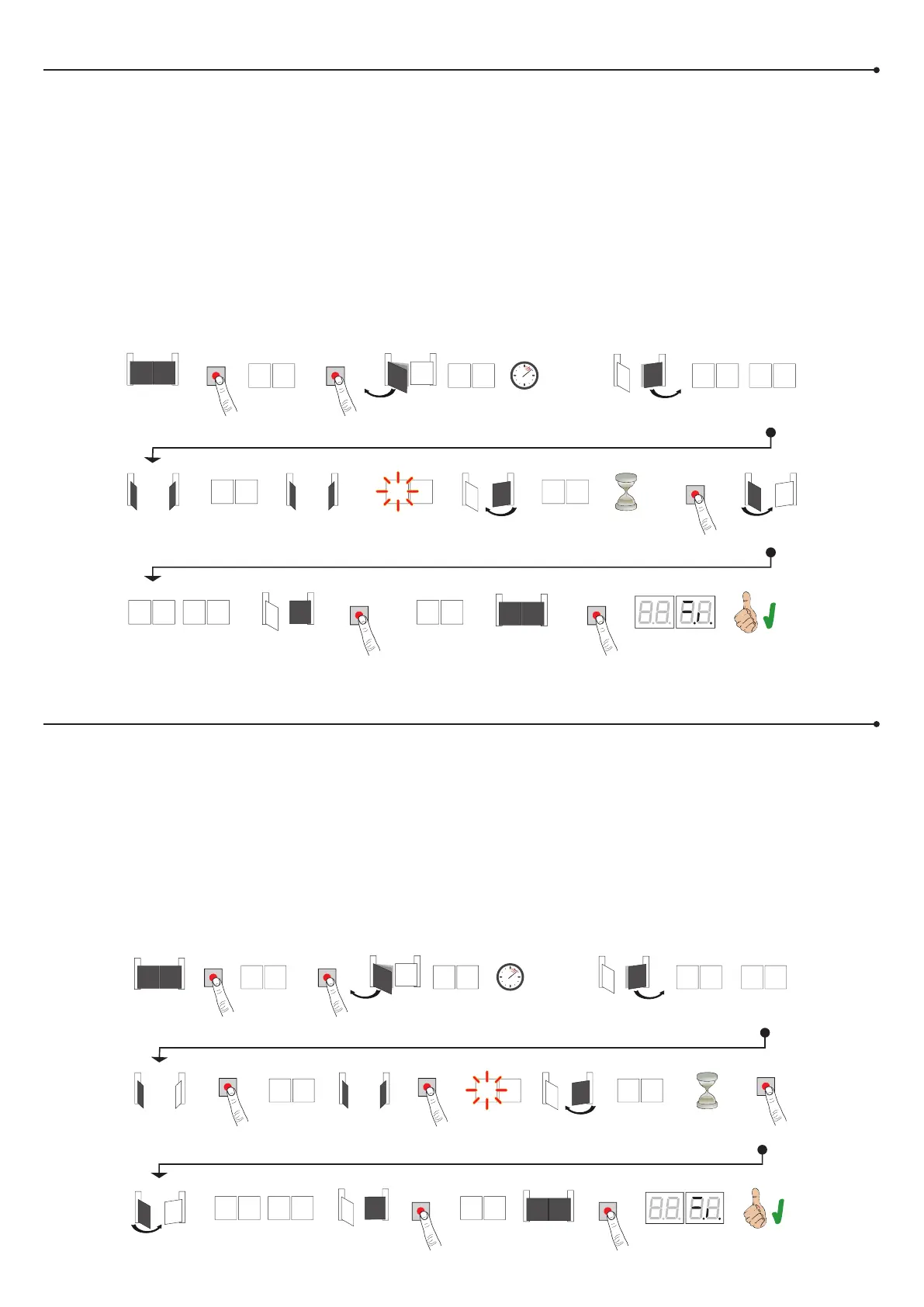

5.2 Acquisition procedure (without encoder, only for opening limit switch)
5.3 Acquisition procedure (without encoder and without electric or magnetic limit switch)
1. Press and hold PROG for 4 seconds.
2. APP- appears on the display.
3. Press PROG.
4. MOTOR 1 starts opening at normal speed.
5. AP1 is shown on the display.
6. After the delay time set with parameter 25, (with a default time setting of 3 s), MOTOR 2 starts an opening manoeuvre.
7. AP2 is shown on the display for 2 s, and is immediately followed by AP1.
8. AP2 appears on the display when MOTOR 1 reaches the open limit switch.
9. PA flashes on the display for 2 seconds when MOTOR 2 reaches the open limit switch.
10. After this 2 second interval, MOTOR 2 closes automatically.
11. The message CH2 appears on the display.
12. Press PROG after the required delay period (set automatically with parameter 26).
13. MOTOR 1 starts to close.
14. NOTE: If the parameter is 2600, MOTOR 1 closes at the same time as MOTOR 2.
15. CH1 appears on the display for 2 seconds and is immediately followed by CH2.
16. When the LEAF 2 reaches the closing mechanical stop, immediately press the PROG key.
17. CH1 appears on the display.
18. When the LEAF 1 reaches the closing mechanical stop, immediately press the PROG key.
19. When the gate is closed, the safety device symbols are displayed.
1. Press and hold PROG for 4 seconds.
2. APP- appears on the display.
3. Press PROG.
4. MOTOR 1 starts opening at normal speed. AP1 is shown on the display.
5. After the delay time set with parameter 25 (with a default time setting of 3 s), MOTOR 2 starts an opening manoeuvre.
6. AP2 is shown on the display for 2 s, and is immediately followed by AP1.
7. When the LEAF 1 reaches the opening mechanical stop, immediately press the PROG key. AP2 appears on the display.
8. When the LEAF 2 reaches the opening mechanical stop, immediately press the PROG key. PA flashes on the display for 2 seconds.
9. After this 2 second interval, MOTOR 2 closes automatically. The message CH2 appears on the display.
10. Press PROG after the required delay period (set automatically with parameter 26).
11. MOTOR 1 starts to close. CH1 is shown on the display for 2 seconds,immediately afterwards CH2 appears.
12. NOTE: If the parameter is 2600, MOTOR 1 closes at the same time as MOTOR 2.
13. When the LEAF 2 reaches the closing mechanical stop, immediately press the PROG key. CH1 appears on the display.
14. When the LEAF 1 reaches the closing mechanical stop, immediately press the PROG key.
15. When the gate is closed, the safety device symbols are displayed.
PROG PROG
AP P- AP 1 AP 1AP 2
AP 2 CH 2
CH 2CH 1 CH 1
PA
PA
x4 s
x2 s
x2 s
x2 s
1 click
PROG
1 click
MOTOR 1
OPEN
CLOSE
MOTOR 1
OPENING
PARAM. 25
DELAY
TIME
MOTOR 2
OPENING
Yes
MOTOR 2
OPEN
MOTOR 1
CLOSING
MOTOR 2
CLOSING
1
2
MOTOR 2
CLOSING
PROG
1 click
PROG
1 click
DESIRED
DELAY
TIME
... wait...
1
1
2
1
2 2
1
... wait...
CLOSE
PROG PROG
AP P- AP 1 AP 1AP 2
AP 2 CH 2
CH 2CH 1 CH 1
PA
PA
x4 s
x2 s
x2 s
x2 s
1 click
PROG
MOTOR 1
OPEN
CLOSED
MOTOR 1
OPENING
PARAM. 25
DELAY
TIME
MOTOR 2
OPENING
Yes
MOTOR 2
OPEN
MOTOR 1
CLOSING
MOTOR 2
CLOSE
1
2
MOTOR 2
CLOSING
PROG
1 click
PROG
1 click
DESIRED
DELAY
TIME
... wait...
1
1
2
1
2
2
1
PROG
1 click 1 click
PROG
1 click
... wait...
CLOSED
