Roger MC16 - Page 5

MC16 Operating Manual 09.01.2020
5/52
NO input can be in normal or in triggered state. In
normal state C
A
contacts are opened. Input
triggering is caused by C
A
contacts closing.
NC input can be in normal or in triggered state. In
normal state C
A
contacts are closed. Input triggering
is caused by C
A
contacts opening.

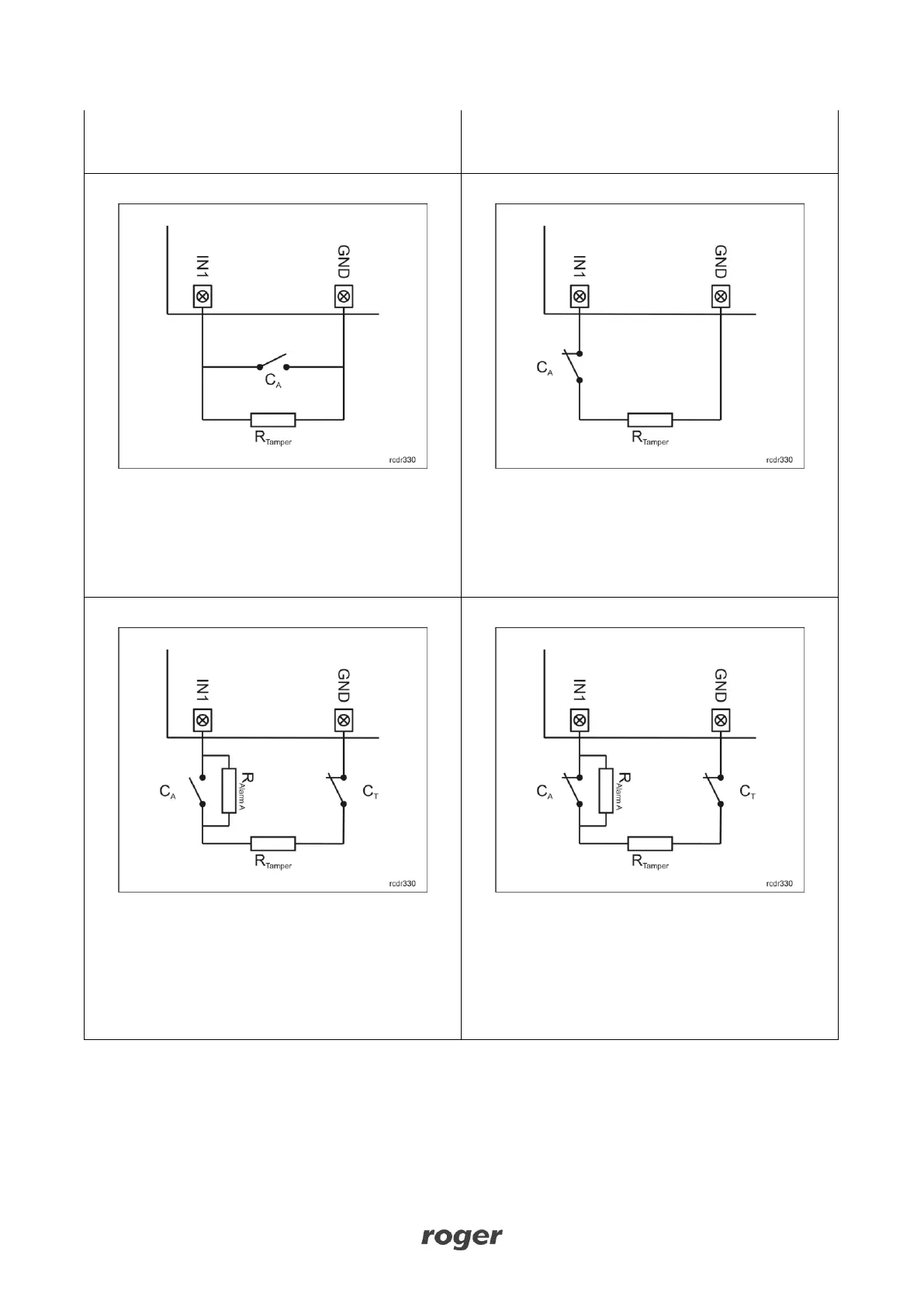

EOL/NO input
EOL/NC input
EOL/NO input can be in normal, triggered or tamper
(sabotage) state. In normal state C
A
contacts are
opened. Input triggering is caused by C
A
contacts
closing. The change of measured R
Tamper
resistance
in normal state indicates the tamper (sabotage)
state.
EOL/NC input can be in normal, triggered or tamper
(sabotage) state. In normal state C
A
contacts are
closed. Input triggering is caused by C
A
contacts
opening. The change of measured R
Tamper
resistance in normal state indicates the tamper
(sabotage) state.
2EOL/NO input
2EOL/NC input
2EOL/NO input can be in normal, triggered, tamper
(sabotage) or malfunction state. In normal state C
A
contacts are opened, while C
T
contacts are closed.
Input triggering is caused by C
A
contacts closing. C
T
contacts opening is recognized as the tamper
(sabotage) state. Input shorting to the ground is
recognized as the malfunction state.
2EOL/NC input can be in normal, triggered, tamper
(sabotage) or malfunction state. In normal state C
A
and C
T
contacts are closed. Input triggering is
caused by C
A
contacts opening. C
T
contacts
opening is recognized as the tamper (sabotage)
state. Input shorting to the ground is recognized as
the malfunction state..
