Rogerblack Cross Trainer - Page 7

Assembly Instructions

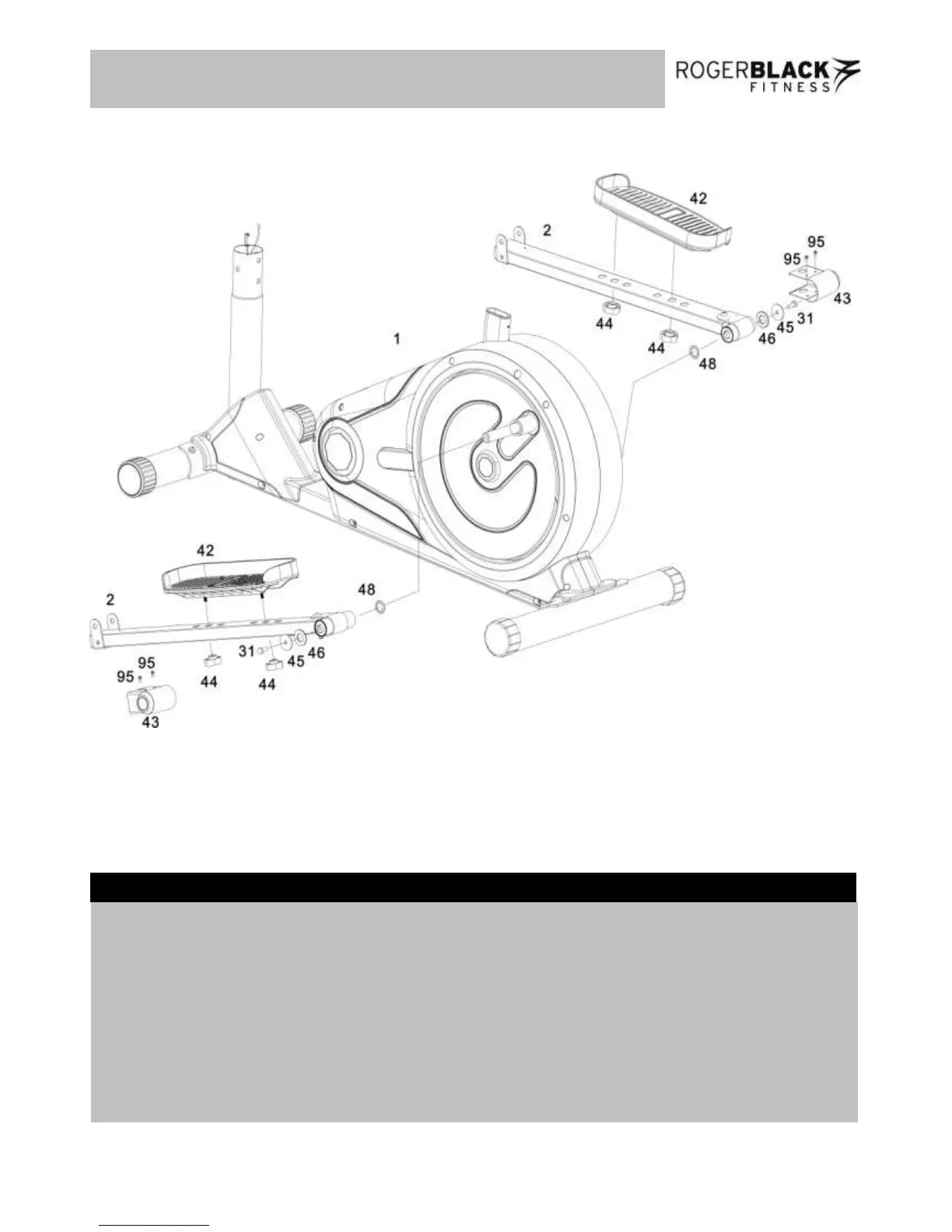

Step 2
a. Attach Foot Pedal (42) to the left Foot Bar (2) using 2 x Knob (44) which are pre-fitted onto (42).
b. Attach Foot Bar Assembly (2) to left crank on the Main Frame (1) using,1 x 19mm Corrugated Washer
(48), 1 x 2mm Nylon Washer (46),1x 2mm Big Washer (45) and 1x 15mm Hex Bolt (31).
c. Attach Crank Cover (43) to left Foot Bar and left crank assembly using 2 x 10mm Allen Bolt (95)
d. Repeat for the Right foot bar assembly.
