a. Connect Sensor WireⅠ(83) from
the Main Frame（1）to the Sensor
Wire Ⅱ(89) which is pre-
assembled inside of the Front Post
(5).
b. Turn the Tension control knob
(17) on its highest setting,connect
the cable end (17) to the spring
hook of the Tension Cable (80),and
fit the Tension control knob (17) on
Front Post (5) with 50mm
Screw(18) (18 was pre-fitted on 17).

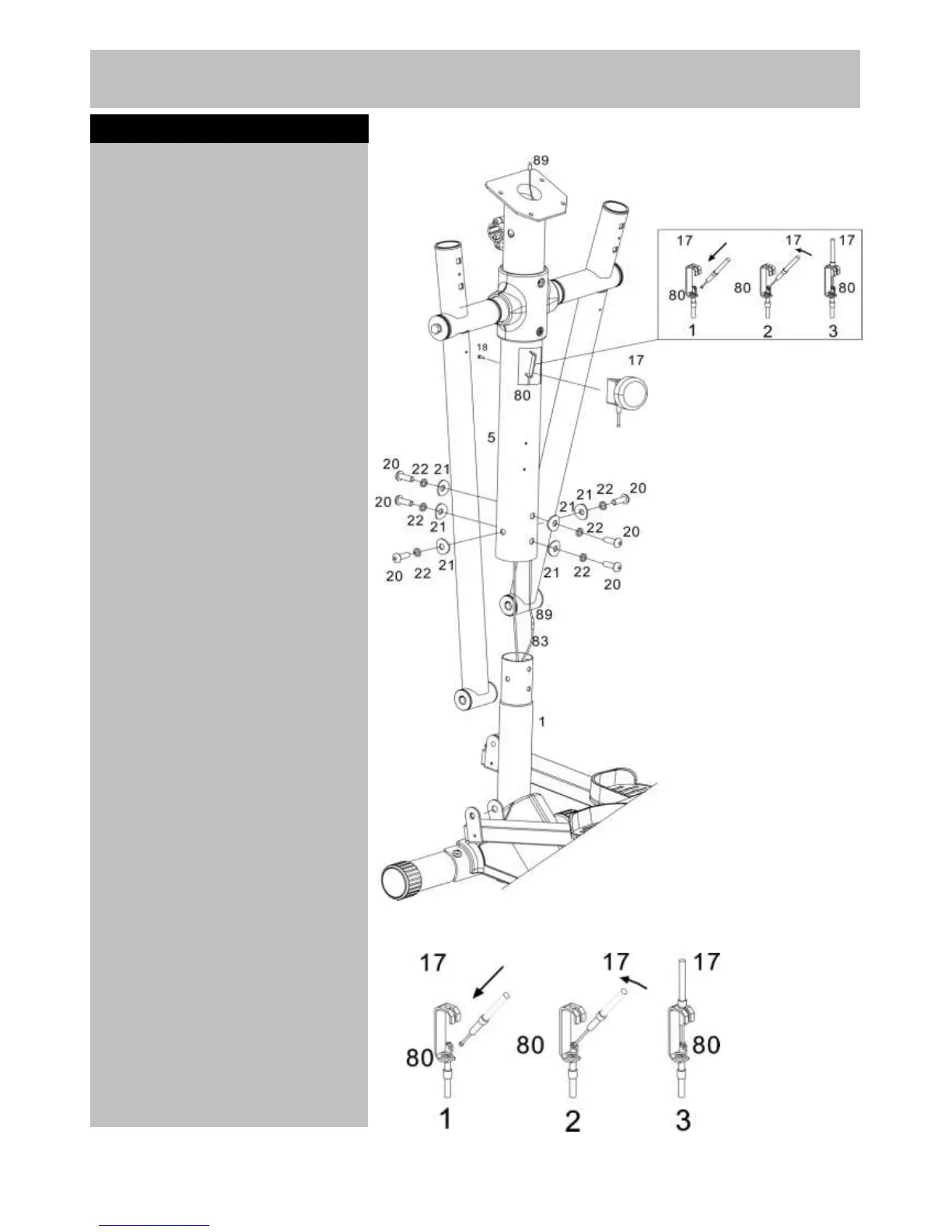

See diagram b.
c. Fit Front Post (5) onto tube of
Main Frame and secure with 6 x
15mm Allen Bolts (20), 6 x 8mm
Spring Washers (22) and 6 x 30mm
Arc Washers (21).
Note: Please do not tighten
Bolts (20) at this step.
To Next Page
