- 22 -

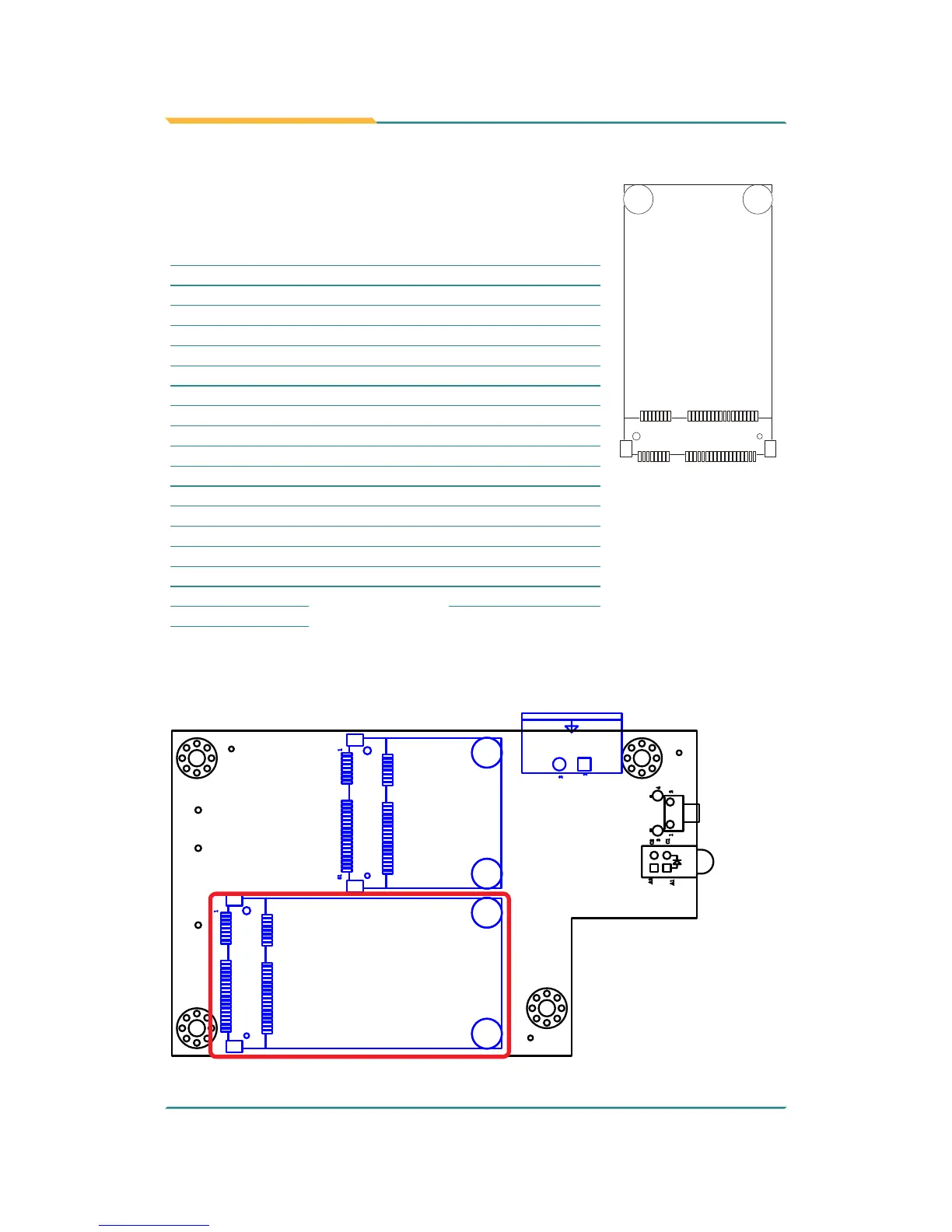

System Conguration
CN10
Description: mSATA socket
Connector Type: Onboard 0.8mm pitch 52-pin edge
card connector
Pin Desc. Pin Desc. Pin Desc.
1 NC 20 NC 36 NC
2 +3.3V 21 GND 37 GND
3 NC 22 NC 38 NC
4 GND 23 TX+ 39 +3.3V
5 NC 24 +3.3V 40 GND
6 NC 25 TX- 41 +3.3V
7 NC 26 GND 42 NC
8 NC 27 GND 43 GND
9 GND 28 NC 44 NC
10 NC 29 GND 45 NC
11 NC 30 NC 46 NC
12 NC 31 RX- 47 NC
13 NC 32 NC 48 NC
14 NC 33 RX+ 49 NC
15 GND 34 GND 50 GND
16 NC 35 GND 51 NC
17 NC 52 +3.3V
18 GND
19 NC
52
51
16 18
15
17
2
1
Main Board Top
C1
A1
C2
A2
3 4
21
2
1
