- 23 -
System Conguration

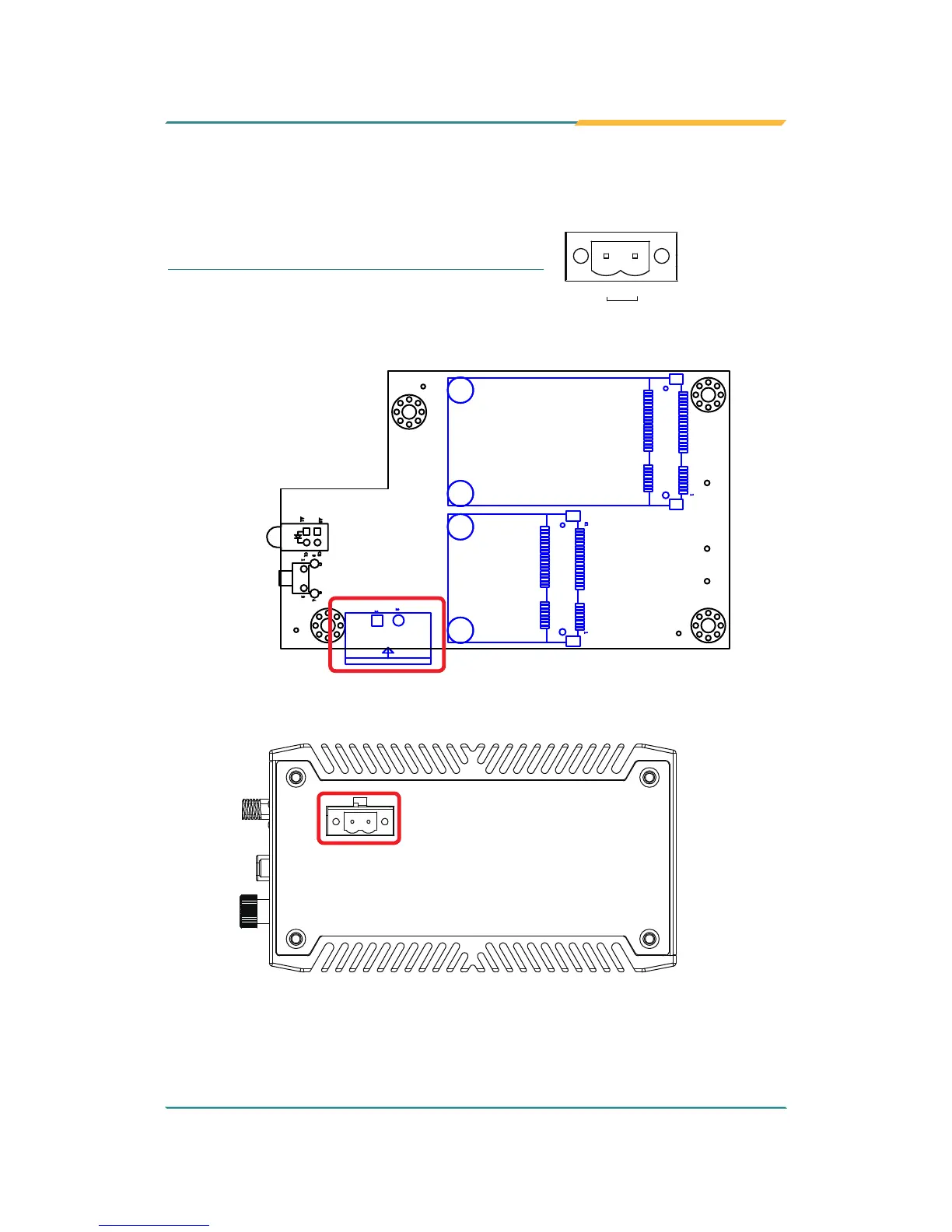

PWRIN1
Function: DC-IN power port
DC IN
+
-
Connector Type: 2-pin terminal block
Pin Description Pin Description
- GND + +9~36V
Power Board Top
C1
A1
C2
A2
3 4
21
2
1
Side Panel
