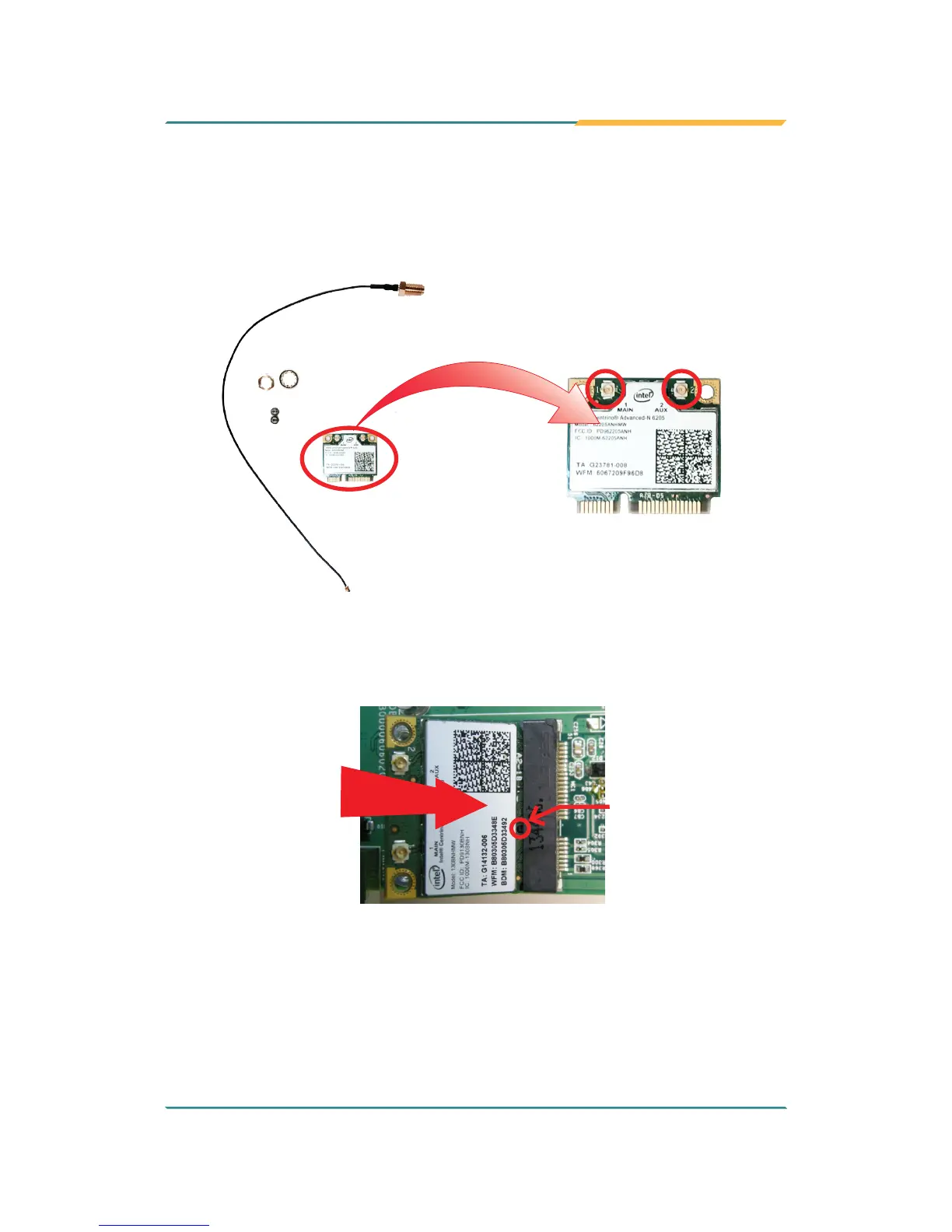

3. Prepare the WIFI-IN1300 Wi-Fi module kit. The module is a half-size
module of PCI Express Mini-card form factor, with two U.FL connectors,
one is “MAIN“, and the other is “AUX“.
Two U.FL connectors,
one is “MAIN”, the other
is “AUX”.
4. Plug the Wi-Fi module to the socket’s connector by a slanted angle. Fully
plug the module, and note the notch on the wireless module should meet
the break of the connector.
Fully plug the module.
Connector
break
