- 60 -
BIOS

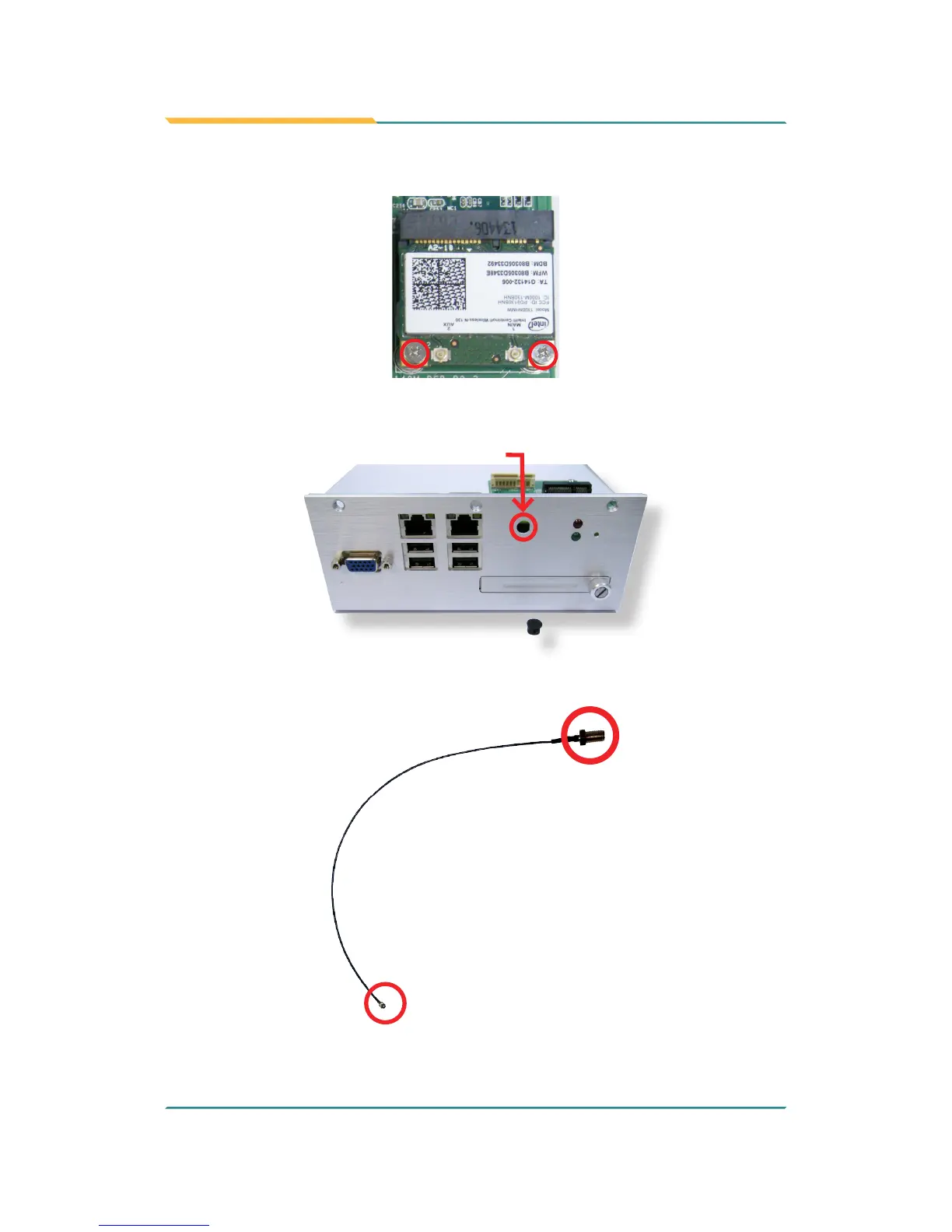

5. Press the module down and x the module in place using two screws.
6. Remove a plastic plug from the computer's rear (or front) panel to make
an antenna hole. Keep the plastic plug for any possible restoration in the
future.
the removed plug
the antenna hole
7. Have the RF antenna. The antenna has an SMA connector on one end
and an MHF connector on the other.
SMA connector
MHF connector
