SUPER ELF S3 – Dornier

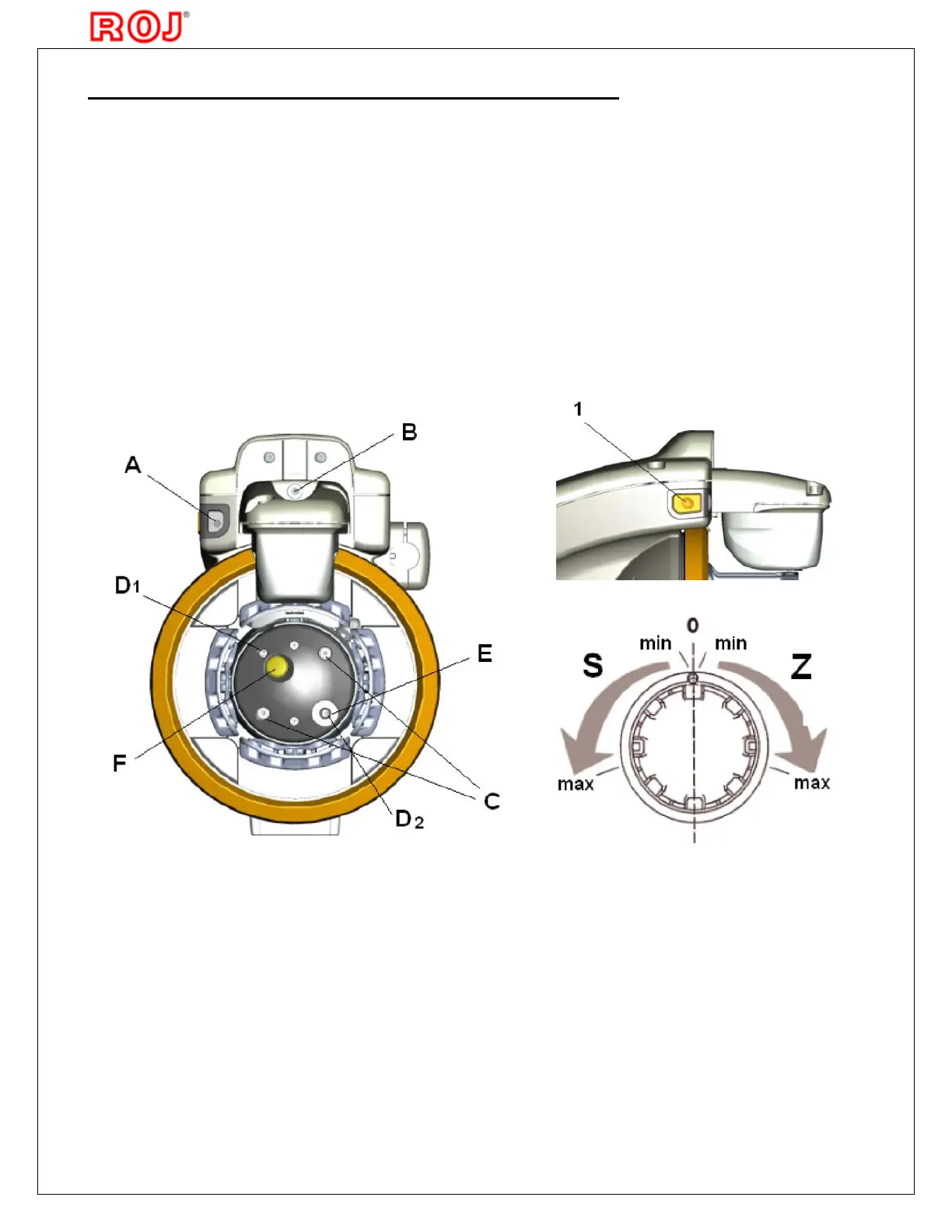

Winding direction and coils pitch adjustment
The winding direction (S or Z) must be adjusted according to the yarn twist. Correspondence
is needed between the motor electric setting and the mechanical one of the Spool Body.
Proceed as follows:
1. Press the yellow Separation push-button F placed in front of the Spool Body and
simultaneously turn the Winding Disc until you hear a “click” (the yellow pushbutton is entered
in a slot).
2. While keeping pressed this push-button, turn the Winding Disc up to the chosen
position (the ceramic eyelet indicates the position). Release the push-button.
Note: The coils pitch must be adjusted according to the yarn count. In case of working with
Automatic Reserve set to OFF, set the Reserve Windings value on the loom Dialog panel by
avoiding excessive accumulation of coils in front of the Spool Body.
3. Select the winding direction rotation on the loom Dialog panel: the magnet pin goes up
allowing removal of the reserve from the Spool Body. In the meanwhile, the eyelet of the
Winding Disc moves to the threading position.
4. Press the start push button 1, the Electromagnet pin goes down and the weft reserve is
loaded.
