12
FP-10-BK/BKL, KSCFP10-BK
Feb. 2019

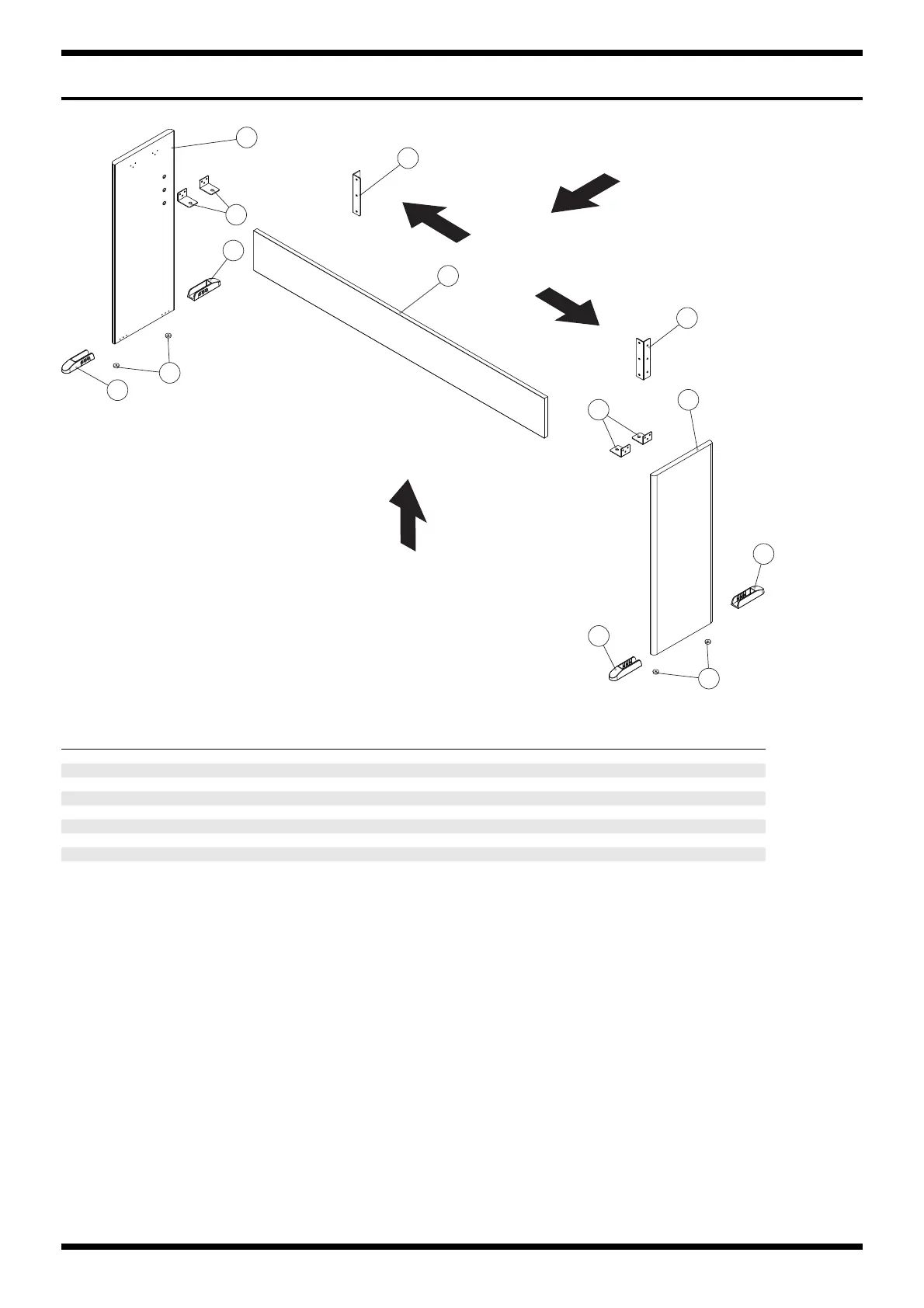

Exploded View (Fig.B)
fig.bunkai-stand.e
ps
1
3
2
5
2
4
5
6
6
8
8
7
7
View B1
View B4
View B3
View B2
No.
Part Code
Part Name
Description
Q’ty
1
5100061723
CENTER BOARD
1
2
5100046679
CENTER BOARD HOLDER
2
3
5100061721
SIDE BOARD L
1
4
5100061722
SIDE BOARD R
1
5
5100047929
ANGLE
4
6
5100063645
TOE BLOCK
2
7
5100063800
TOE BLOCK
2
8
5100047118
FOOT
4
11
13
Table of Contents
Table of Contents
2
Cautionary Notes
2
Specification
3
Contents of KSCFP10
4
Location of Controls
6
Exploded View
7
Exploded View (Fig.a)
8
Exploded View (Fig.a) Parts List
9
Disassembly Procedure
9
Plain View (Fig.a) (1)
10
Plain View (Fig.a) (2)
11
Exploded View (Fig.b)
12
Plain View (Fig.b)
14
Plain View (Fig.b) Parts List
15
Keyboard Parts List (PX-7D)
16
Block Diagram/Wiring Diagram
18
Parts List (FP-10-BK/BKL)
20
Parts List (KSCFP10-BK)
21
Notation of Buttons and Leds
22
Verifying the Version
22
Data Backup and Restore Operations
22
Performing a Factory Reset
23
Updating the System
23
Test Mode
23
Circuit Board (Jack Board)
27
Circuit Diagram (Jack Board)
28
Circuit Board (Panel Board)
30
Circuit Diagram (Panel Board)
32
