9
FP-10-BK/BKL, KSCFP10-BKFeb. 2019
Exploded View (Fig.A) Parts List

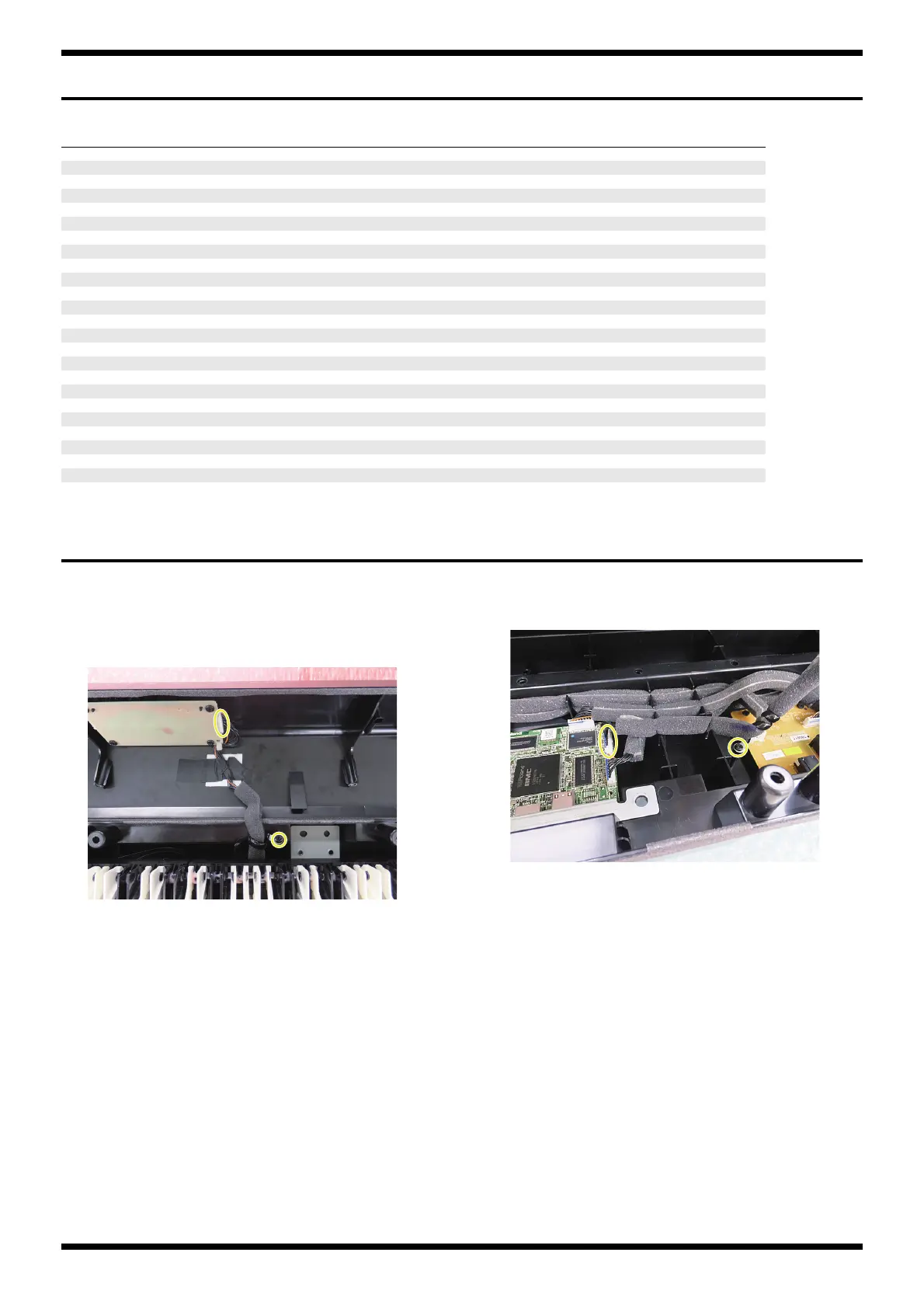

Disassembly Procedure
1. Remove screws securing the Top Case to the Bottom Case.
(Plain View (Fig.A) (2) (p. 11), View A5, screw a (x 20))
2. Lift the Top Case from the front side and remove a screw fixing the
wiring connected to the Panel Board, cut a bundling-tie and disconnect
the connector.
fig.bunkai-teijun.1.eps
3. Detach the Top Case.
4. Remove the screws securing the keyboard from underneath. (Plain View
(Fig.A) (2) (p. 11), View A4, screw d (x 29))
5. Remove the screws securing the keyboard from above. (Plain View
(Fig.A) (1) (p. 10), View A1, screw a (x 2))
6. Lift the keyboard from the rear side and remove a screw fixing the wiring
connected to the Main Board, cut a bundling-tie and disconnect the
connector.
fig.bunkai-teijun.2.eps
7. Detach the keyboard.
When the keyboard is detached, Speakers, the Jack Board and Main
Board can be replaced.
No. Part Code Part Name Description Q’ty
1 5100061705 TOP CASE 1
2 5100061709 LED INDICATOR 1
3 5100047917 KEYTOP MX4H CLR 1
4 5100061710 TACT SW CUSHION 1
5 5100061169 PANEL BOARD ASSY 1
6 5100063190 CENTER HOLDER 2
7 5100061707 KEY FELT 1
8 5100066077 KEYBOARD ASSY PX-7D SV SERVICE ASSY 1
9 5100061729 SPEAKER FR-5IN-06-CF15C 2
10 5100061168 JACK BOARD ASSY 1
11 5100055261 MAIN BOARD ASSY 1
12 5100061708 MAIN BOARD HOLDER 1
13 5100047922 SCREW HOLDER 4
14 5100049095 CUSHION A 2
15 5100063476 REAR CUSHION 2
16 5100063477 SIDE CUSHION 2
17 5100061720 BOTTOM CASE 1
18 5100049094 FOOT SJ-5012 BLK 5
19 5100021076 DOUBLE SIDED ADHESIVE TAPE NITTO #5000NS W5MM -
20 40122556 DOUBLE FACED ADHESIVE TAPE #575X W30MM 30M -
21 40232123 ACETATE TAPE NITTO #5 BLACK W20MM 30M 20P -
22 40016545 LOCKING TOOL FOR INSULOK TIE SKM-1 1
a 40459534 SCREW M3X10 PAN MACHINE W/SW+PW(5.8MM) BZC 3
b 40011056 SCREW 3X6 BINDING TAPTITE B ZC 1
To Next Page
