28
Jul. 2015 JD-XA

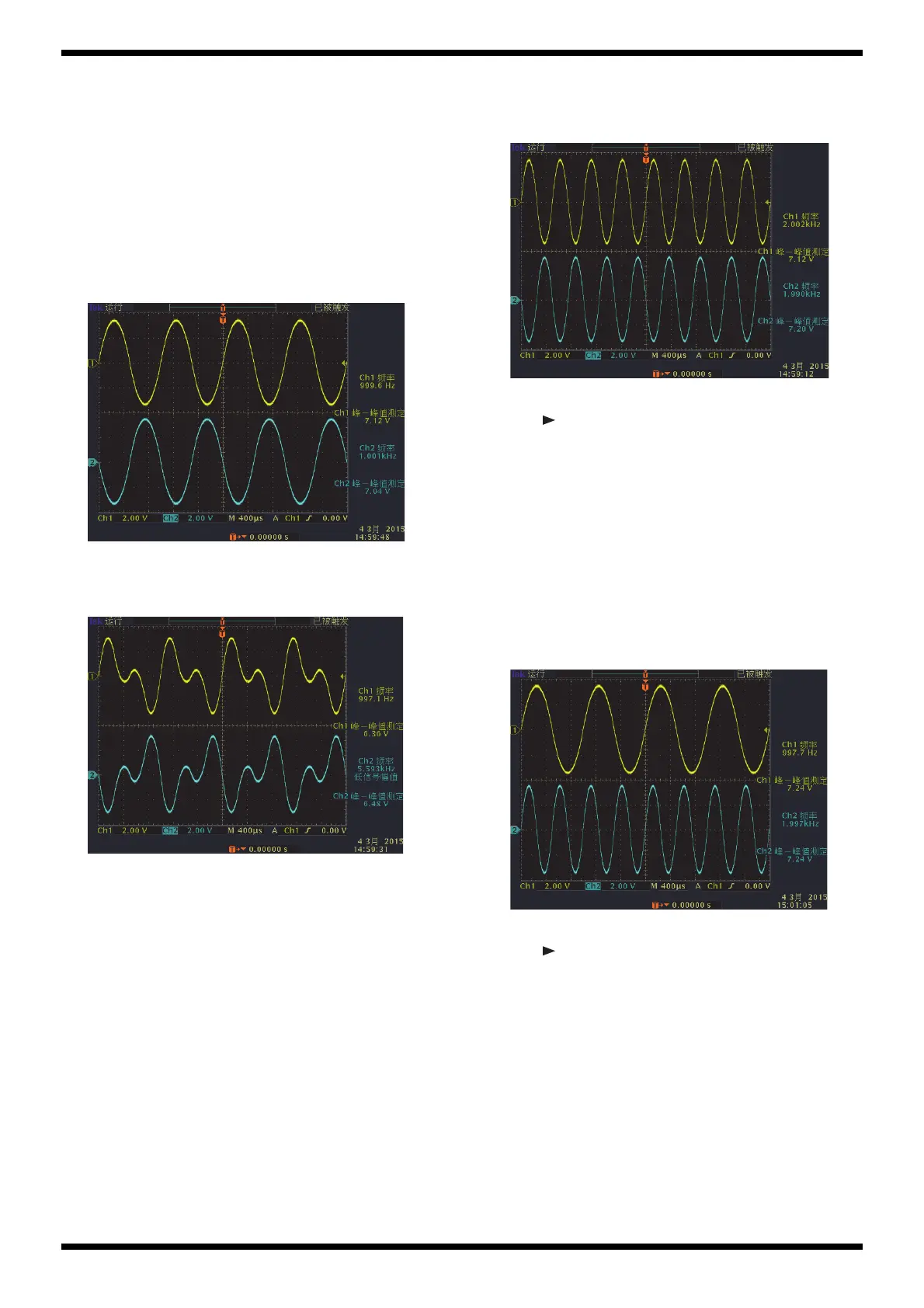

12. Main Out (L/MONO, R)
This verifies the operations of the OUTPUT L/MONO and R jacks.
+————————————————+
|Main Out :SINE|
|Press [>] |
+————————————————+
1. Connect a dummy plug to the OUTPUT R jack.
2. Connect the oscilloscope to the OUTPUT L/MONO jack, and verify that
signals like the ones shown below are output.
L/MONO (Tip): 1-kHz sine wave at 7.0±2.0 Vpp
L/MONO (Ring): 1-kHz sine wave at 7.0±2.0 Vpp
fig.test-12-1.eps
3. Detach the dummy plug.
4. Verify that a signals like the ones shown below are output from the
OUTPUT L/MONO jacks.
fig.test-12-2.eps
5. Detach the oscilloscope.
6. Connect the oscilloscope to the OUTPUT R jack, and verify that signals
like the ones shown below are output.
R (Tip): 2-kHz sine wave at 7.0±2.0 Vpp
R (Ring): 2-kHz sine wave at 7.0±2.0 Vpp
fig.test-12-3.eps
7. Detach the oscilloscope.
8. Press to advance to the next test item.
13. CLICK OUT
This verifies the operation of the CLICK jack.
+————————————————+
|Click Out :SINE|
|Press [>] |
+————————————————+
1. Connect the oscilloscope to the CLICK jack, then verify that signals like
the ones shown below are output.
CLICK (Tip): 1-kHz sine wave at 7.0±2.0 Vpp
CLICK (Ring): 2-kHz sine wave at 7.0±2.0 Vpp
fig.test-13.eps
2. Detach the oscilloscope.
3. Press to advance to the next test item.
