Roland JV-1000 Introductory Manual

1.
Playing
the
J
V-
1000
1
.
Making
connections
The
JV-1
000
has
four
output
jacks; two
each
for MIX (INT)
and
V-EXP.
•
MIX
(INT) R,
L (MONO)
These
jacks output the
sound of the
synthesizer
sound
source and
the
voice
expansion
board
(sold separately)
mixed together.
If
cables
are plugged
into
the V-EXP
outputs,
these jacks will output
only
the sound
of
the
synthesizer
sound
source.
V-EXP
R, L (MONO)
These
jacks output
the sound of
the
voice
expansion
board.
For
both the MIX (INT)
and the V-EXP
jack
pairs,
output will
be
mono if
you
use only
the
L (MONO) jack.
To
take full advantage
of the
JV-1
000's sound,
we
recommend
that
you use
a stereo
output.
If
you
wish
to output the
sound in
mono,
however,
connect
a
cable to MIX
(INT)
L
(MONO) or V-EXP
L (MONO).
!
By using cables with
a phone
plug on
one
end
on RCA
plug
on
the
other,
you can
connect the
JV-1
000 to the RCA
inputs
of
a stereo
set.

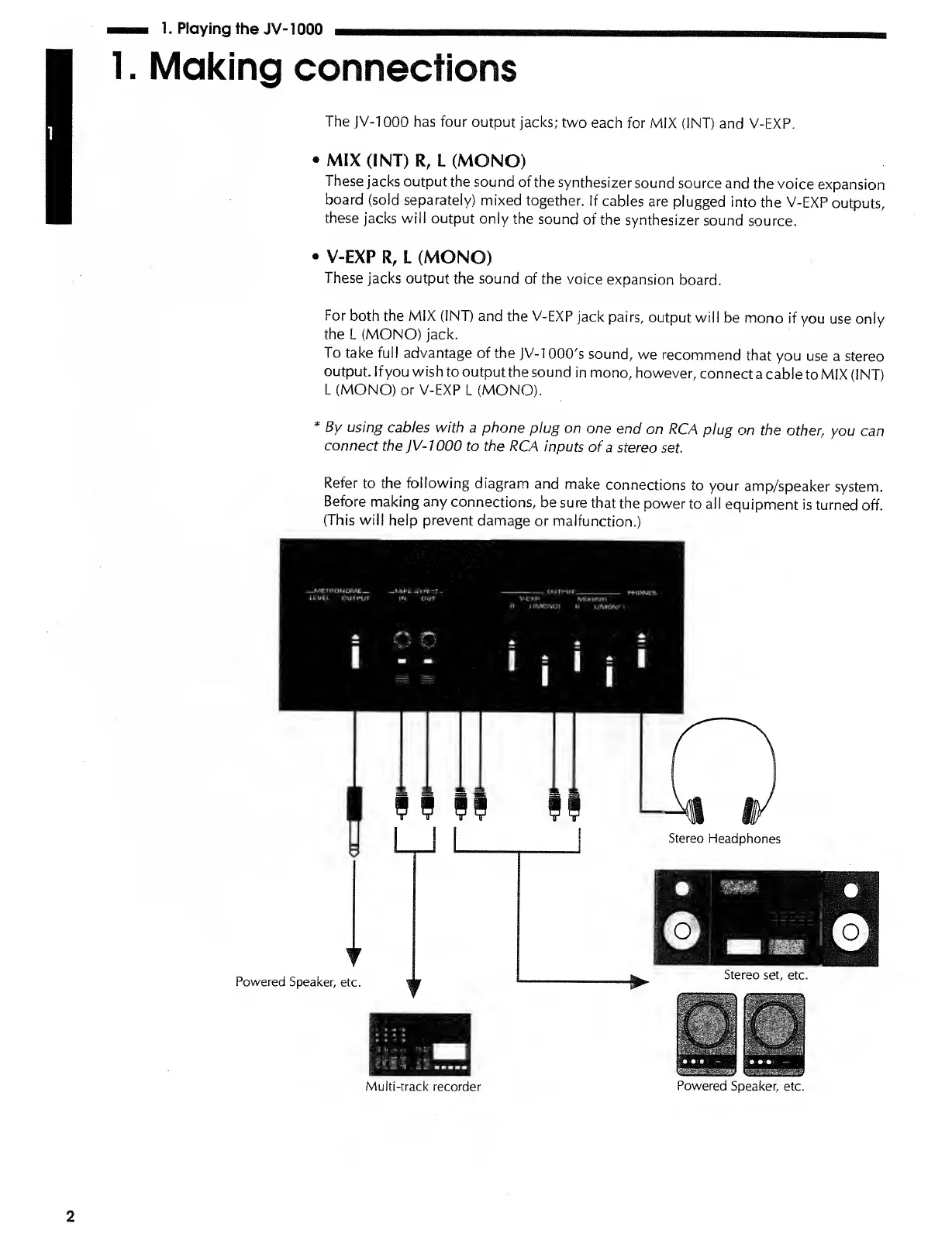

Refer
to the following diagram
and
make
connections
to
your
amp/speaker
system.
Before
making
any
connections,
be
sure that
the
power
to all
equipment is
turned
off.
(This will
help
prevent
damage
or
malfunction.)
t
Powered
Speaker,
etc.
Stereo
Headphones
®__
&
Stereo set,
etc.
Multi-track recorder
Powered
Speaker,
etc.
