29
Mar. 2010 SPD-30
* If no USB memory device is inserted, an error is displayed for USB Memory.
In such cases, either skip this and jump to the following item ([QUICK] + [SET
LOOP/NEXT]) or insert a USB memory device and retry the operation
([QUICK] + [REC]).
* If no computer is connected via USB, an error is displayed for USB MIDI. In
this case as well, either skip the item or retry the test.

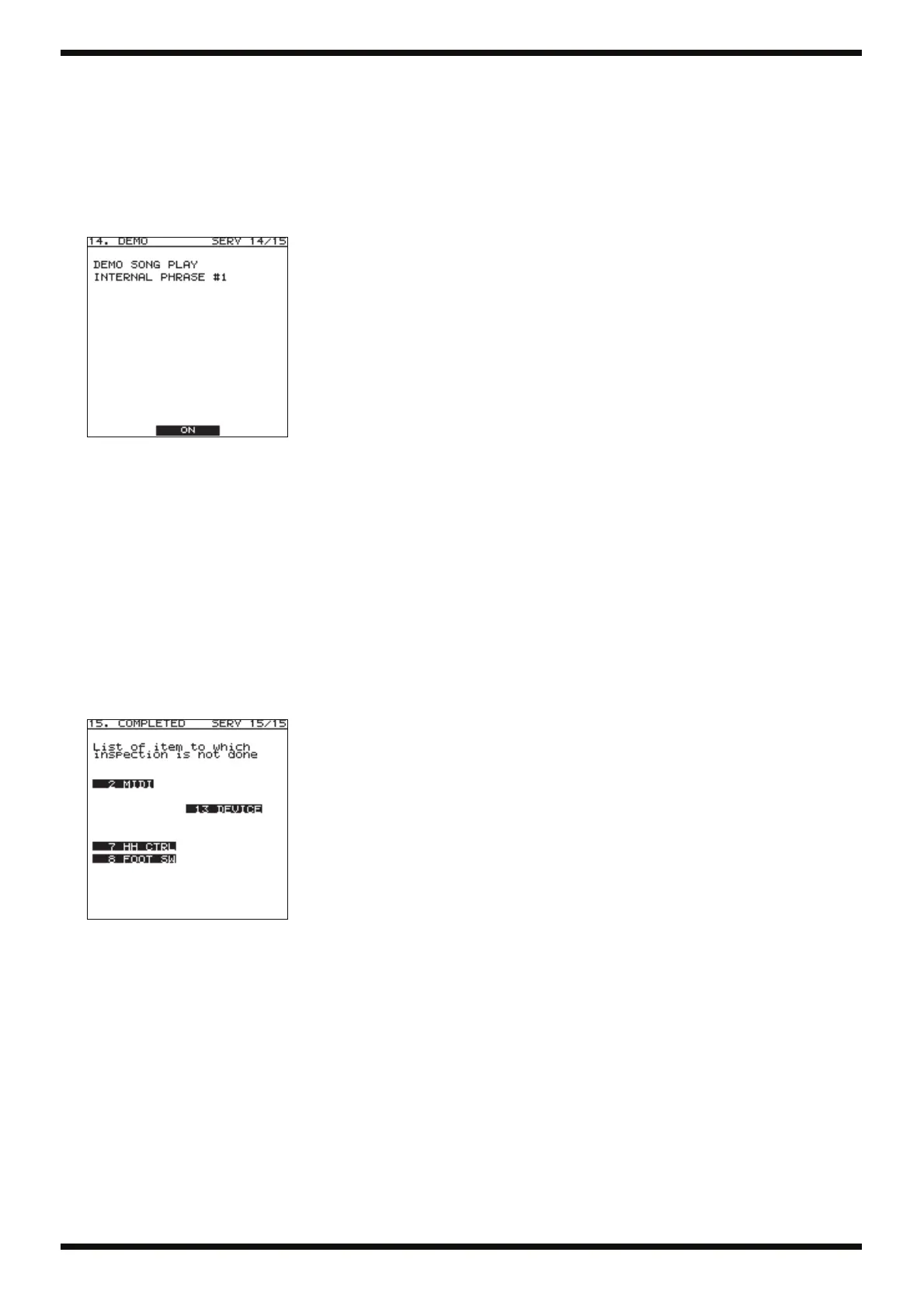

14. Demo Song Test [14/15 DEMO]
fig.test18.eps_80
1. Press [Button 2] to play back the demo pattern.
PHRASE LOOP 01 stored in internal memory is played back. After a
factory reset, the demo pattern is played back, but if no factory reset has
been executed yet, the playback pattern may differ depending on the
state of user data.
2. Verify that audio produced from the OUTPUT L/MONO and R jacks.
Press [Button 2] a second time to stop playback.
3. Press [Button 3] to advance to the next item.
When testing of all items has finished, the message Completed! Please
Power OFF is displayed.
4. Press and hold down [POWER] to switch off the power.
If any item has failed testing or been skipped, the screen shown below is
failed. Retest as required. (Refer to Skipping or Retrying Test Items (p.
24).)
fig.test19.eps_80
15. Factory Reset
The Test Mode does not include a factory reset. Refer to Performing a
Factory Reset (p. 22) and execute a factory reset.
