Roland SH-1 Instruction Manual

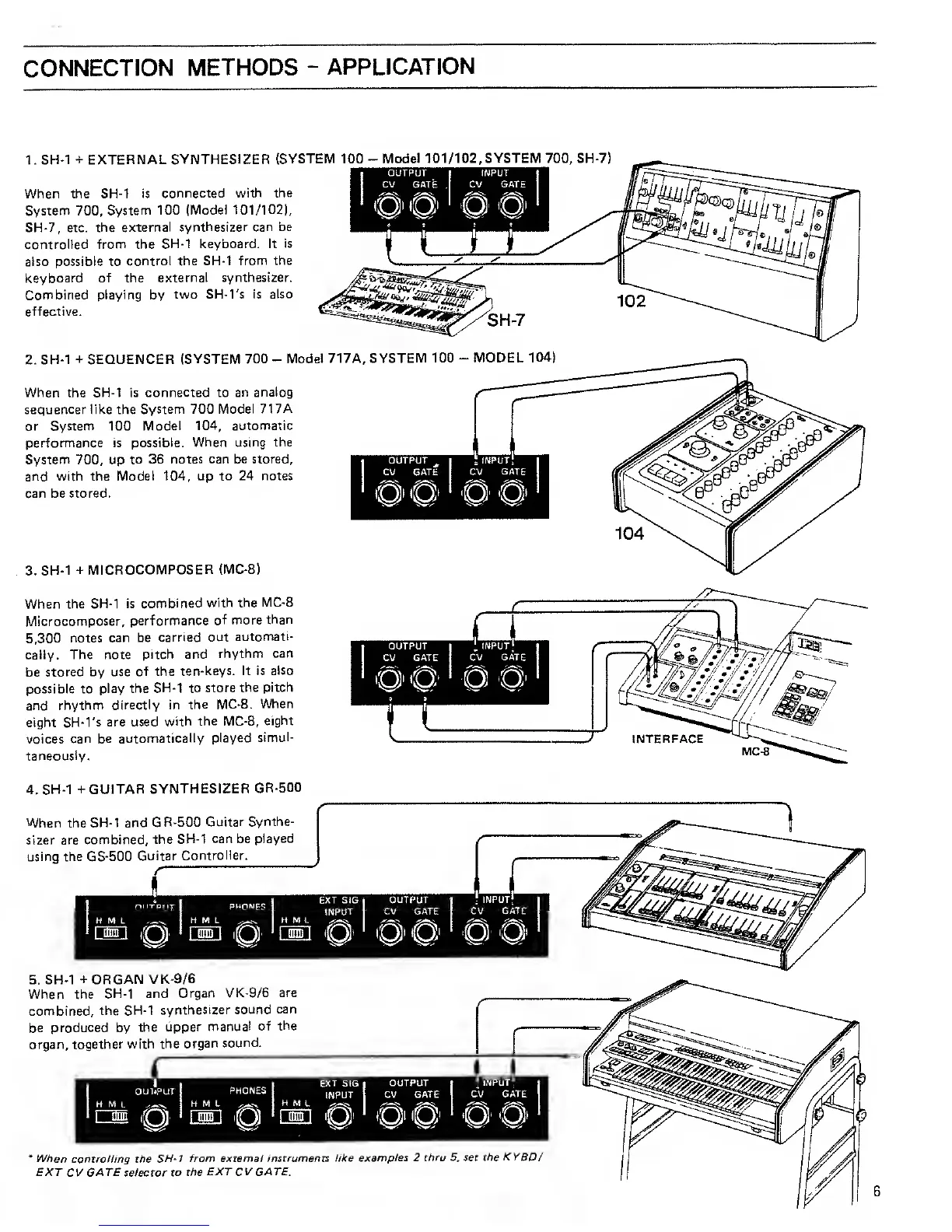

CONNECTION
METHODS
-
APPLICATION
l.SH-1
+
EXTERNAL SYNTHESIZER
(SYSTEM 100
-
Model 101/102, SYSTEM
700,
SH-7
When
the SH-1 is
connected with the
System 700,
System 100 (Model 101/102),
SH-7, etc.
the external
synthesizer can be
controlled
from the SH-1 keyboard. It
is
also possible to
control the SH-1
from the
keyboard of the
external
synthesizer.
Combined playing
by
two SH-1's is
also
effective.
2. SH-1
+
SEQUENCER
(SYSTEM 700
-
Model 717A,
SYSTEM
100
-MODEL 104)
When the SH-1 is
connected
to
an analog
sequencer
like the
System 700
Model 717A
or System 100
Model
104,
automatic
performance is possible.
When using the
System
700, up
to 36
notes can
be
stored,
and with the
Model
104, up
to 24 notes
can
be
stored.
3. SH-1
+
MICROCOMPOSER
(MC-8)
When
the
SH-1 is
combined with the
MC-8
Microcomposer,
performance
of more than
5,300 notes
can be
carried out
automati-
cally. The note
pitch and rhythm
can
be
stored by use
of the
ten-keys. It is
aiso
possible
to
play
the
SH-1 to
store the
pitch
and rhythm
directly in
the MC-8.
When
eight SH-1's
are used
with
the
MC-8,
eight
voices
can be automatically
played
simul-
taneously.
4. SH-1
+
GUITAR
SYNTHESIZER
GR-500
When the
SH-1 and
GR-500
Guitar Synthe-
sizer
are
combined, the SH-1
can be
played
using the
GS-500
Guitar
Controller.
f
OUTPUT
j
PHONES
HML
,~^
I
HML
_
5, SH-1
+
ORGAN VK-9/6
When the
SH-1 and
Organ VK-9/6
are
combined, the SH-1
synthesizer sound
can
be produced by
the
upper
manual of
the
organ,
together with the
organ
sound.
om>?ur
*
When controlling the SH-1
from external instruments like
examples 2
thru
5,
set the
KYBD/
EXT CVGATE selector to the
EXT C
V
GATE.
EXT
SIG
INPUT
OUTPUT
CV GATE
! INPUT!
CV GATE
