Roland SH-101 - Detailed Circuit Diagrams; Signal Path Circuits; Control and Processing Circuits; Ancillary Circuits

NOV.
1st, 1982

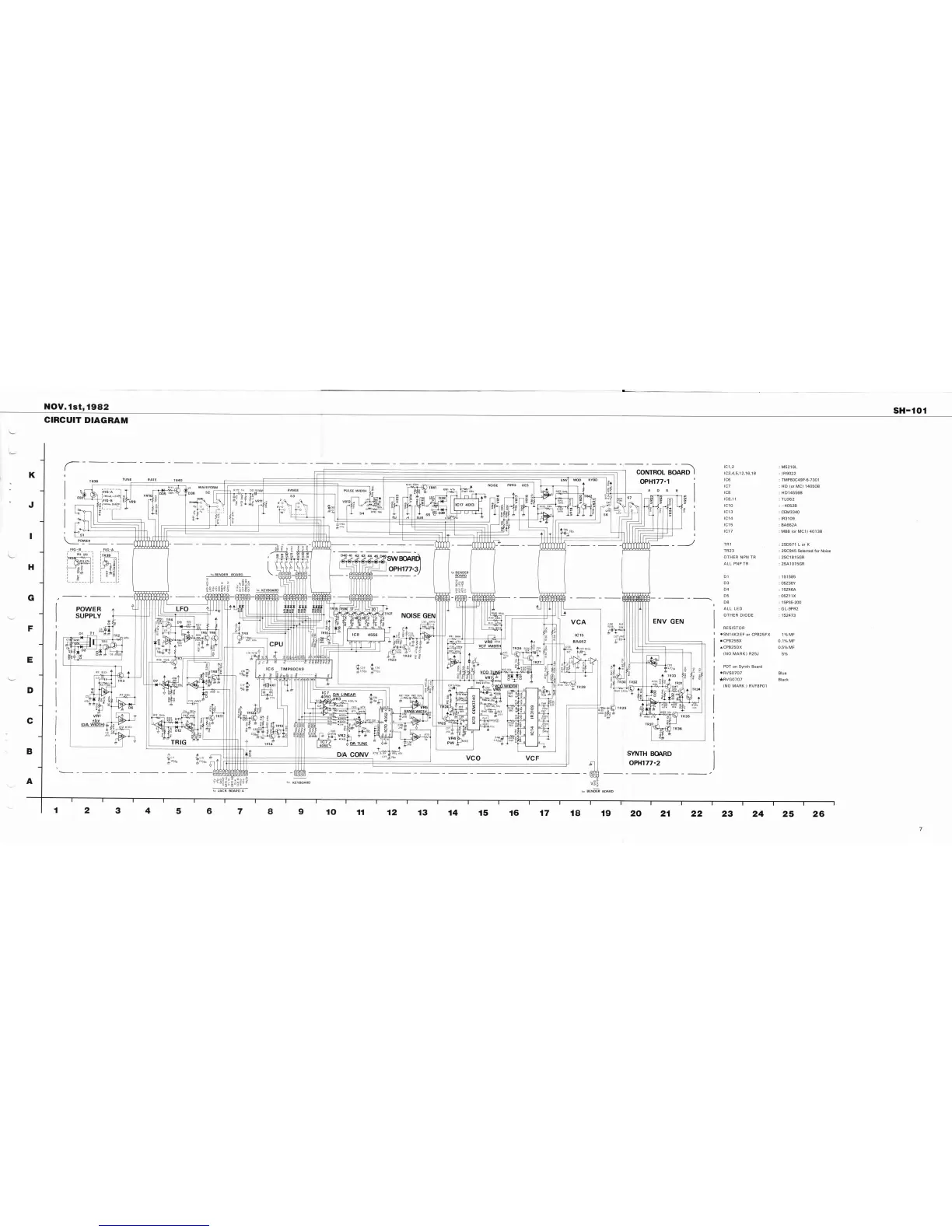

CIRCUIT
DIAGRAM
IC1,2
M5218L
IC3A5,
12,
16,18
IR9022
IC6
TMP80C49P-6-7301
IC7
HD (or MC) 14050B
IC8
HD14556B
IC9,11
TL062
IC10
-4052B
IC13
CEM3340
IC14
IR3109
IC15
BA662A
IC17
MB8 (or MC1) 401 3B
TR1
2SD571 L or K
TR23
2SC945 Selected for
Noise
OTHER
NPN TR
2SC1815GR
ALL PNPTR
2SA1015GR
D1
1 SI 585
D3
05Z36Y
D4
1 SZ46A
D5
05Z11X
D8
1
SP35-200
ALL LED
GL-9PR2
OTHER DIODE
1S2473
RESISTOR
•
SN14K2EF
or CPB25FX
1%MF
CP825BX
0.1% MF
CPB25DX
0.5% MF
(NO
MARK) R25J
5%
POT on Synth
Board
•RVS0707
Blue
RVG0707
Black
(NO
MARK
)
RVF8P01
7
