Other Useful Functions

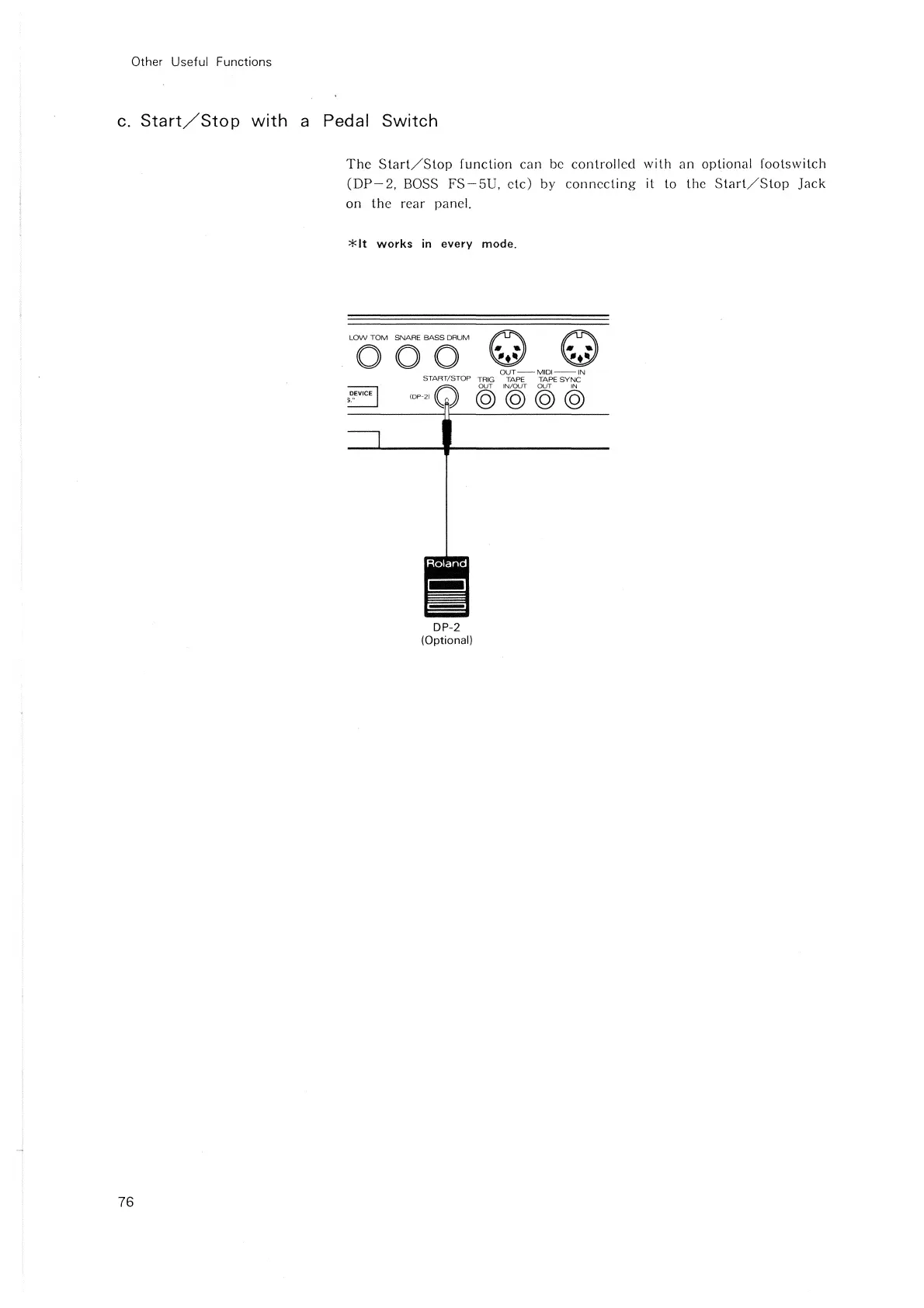

c. Start/Stop with a Pedal Switch
76
The Start/Stop function can be controlled with an optional footswitch
(DP-2, BOSS FS-5U, etc) by connecting it to the Start/Stop Jack
on the rear panel.
* It works in every mode.
LON TOM SNARE BASS DRUM
000
OUT-MIDI--IN
START/STOP TRIG TAPE TAPE SYNC
IDP·2lQ @'@@@
DP-2
(Optional)
