F TRIGGER OUT jack
A trigger pulse is output from this jack at the timing that is
specified in the dedicated trigger out track ([CC] + [RC] button).
G EXT IN (L/MONO, R) jacks
These are audio input jacks.
You can apply a side-chain effect at the pattern of the specified
track.
&
For details, refer to “Reference Manual” (PDF).
H ASSIGNABLE OUT/TRIGGER OUT jacks
For each jack 1–6, you can choose whether it operates as
ASSIGNABLE OUT or as TRIGGER OUT.
Instruments that are output to a jack operating as ASSIGNABLE
OUT are not output from the MIX OUT jacks.
Instruments that are output to a jack operating as TRIGGER OUT
are also output from the MIX OUT jacks.
I MIX OUT (L/MONO, R) jacks
Connect these jacks to your amp or monitor speakers.
J PHONES jack
A set of headphones can be connected to this jack.
Introduction
* Before turning the unit on/off, always be sure to turn the volume
down. Even with the volume turned down, you might hear some
sound when switching the unit on/off. However, this is normal and
does not indicate a malfunction.
Turning the TR-8S On
1. Turn on the power in the order of the TR-8S first,
and then the connected system.
2. Switch on power to the connected equipment, and
raise the volume to an appropriate level.
Turning Off the Power
1. Power-off the connected system first, and then the
TR-8S.

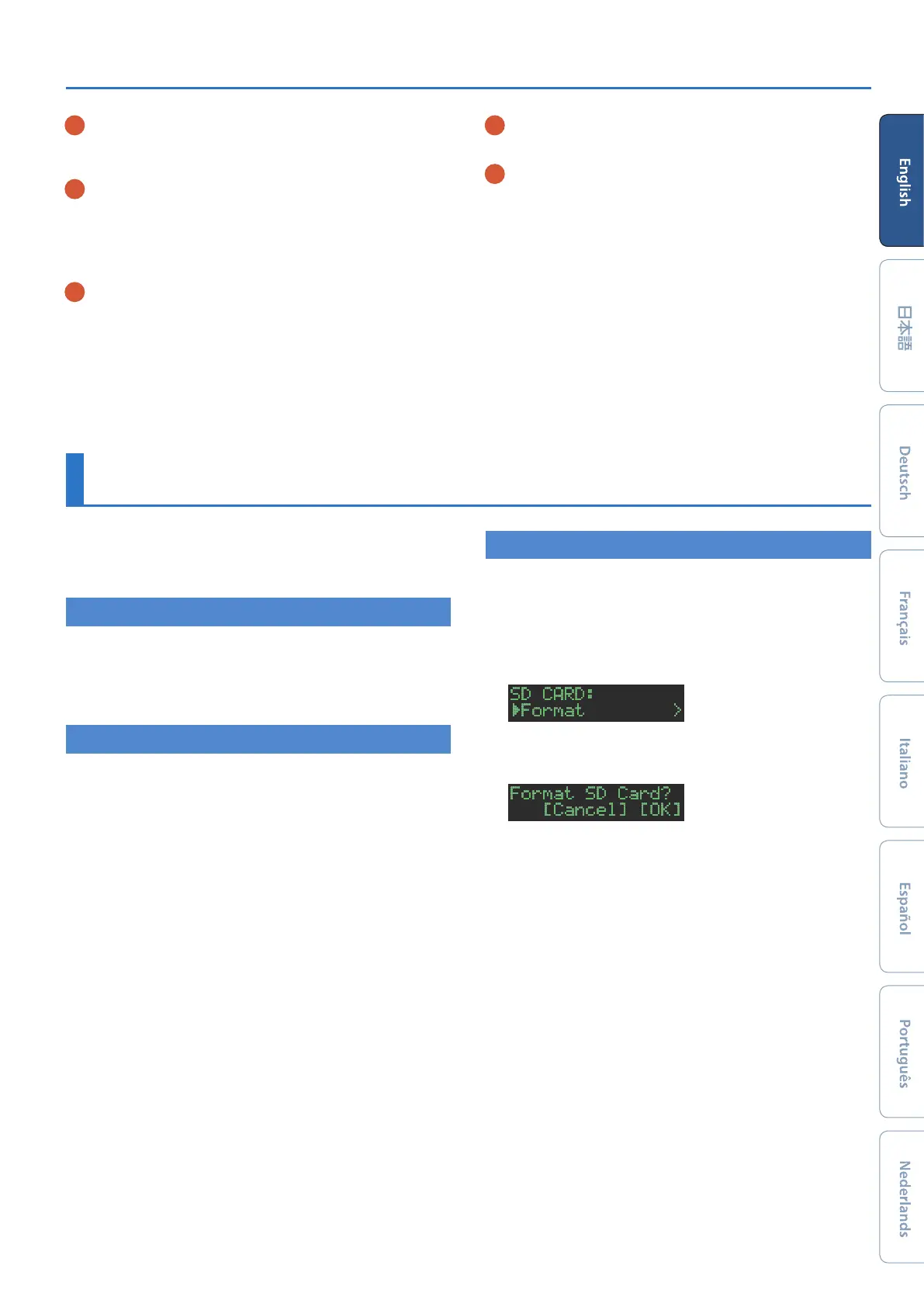

Formatting an SD Card (SD CARD FORMAT)
If using an SD card, please format it on the TR-8S.
SD cards are sold separately. Please obtain a SD card separately.
1. Press the [UTILITY] button.
The UTILITY screen appears.
2. Use the [VALUE] knob to select “SD CARD:Format.”
3. Press the [ENTER] button.
A confirmation message appears.
4. To execute, use the [VALUE] knob to select “O K ,”
and press the [ENTER] button.
If you decide to cancel, use the [VALUE] knob to select “Cancel,”
and then press the [ENTER] button.
