ROLEC QUANTUM PEDESTAL - Page 12

Product Specification
Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual
Page 11 of 23 April 2023

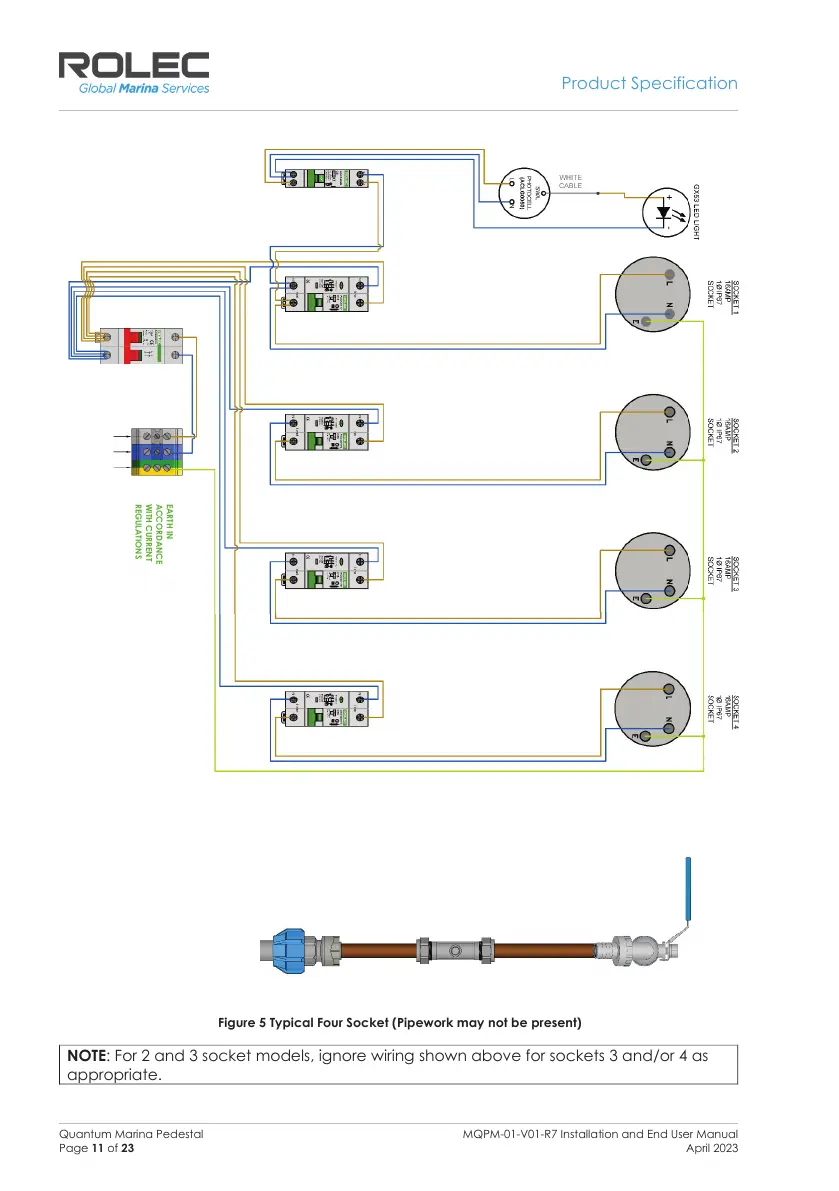

Figure 5 Typical Four Socket (Pipework may not be present)
NOTE: For 2 and 3 socket models, ignore wiring shown above for sockets 3 and/or 4 as
appropriate.
EARTH IN ACCORDANCE WITH CURRENT REGULATIONS
