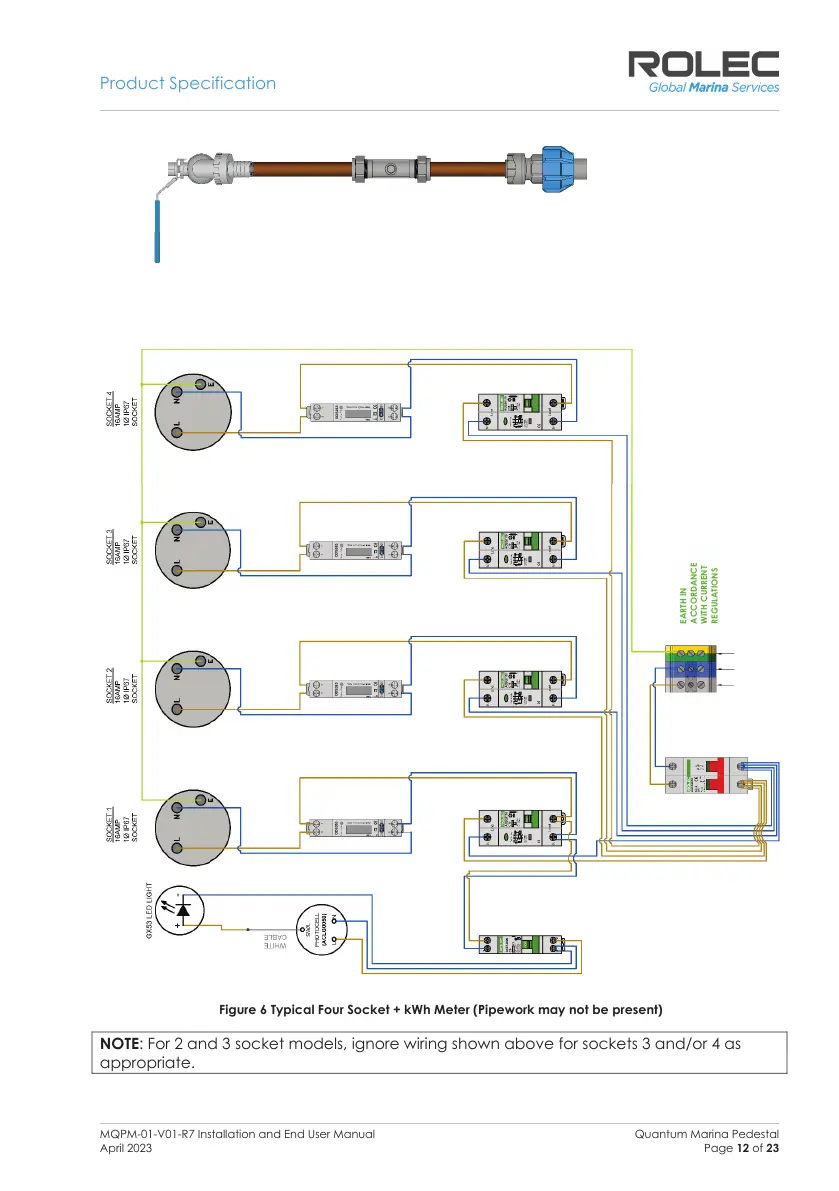

Figure 6 Typical Four Socket + kWh Meter (Pipework may not be present)
NOTE: For 2 and 3 socket models, ignore wiring shown above for sockets 3 and/or 4 as
appropriate.
EARTH IN ACCORDANCE WITH CURRENT REGULATIONS
