Rollo Solar RT 400 - Cable Routing: Drive to Clamping Flange

Page | 7

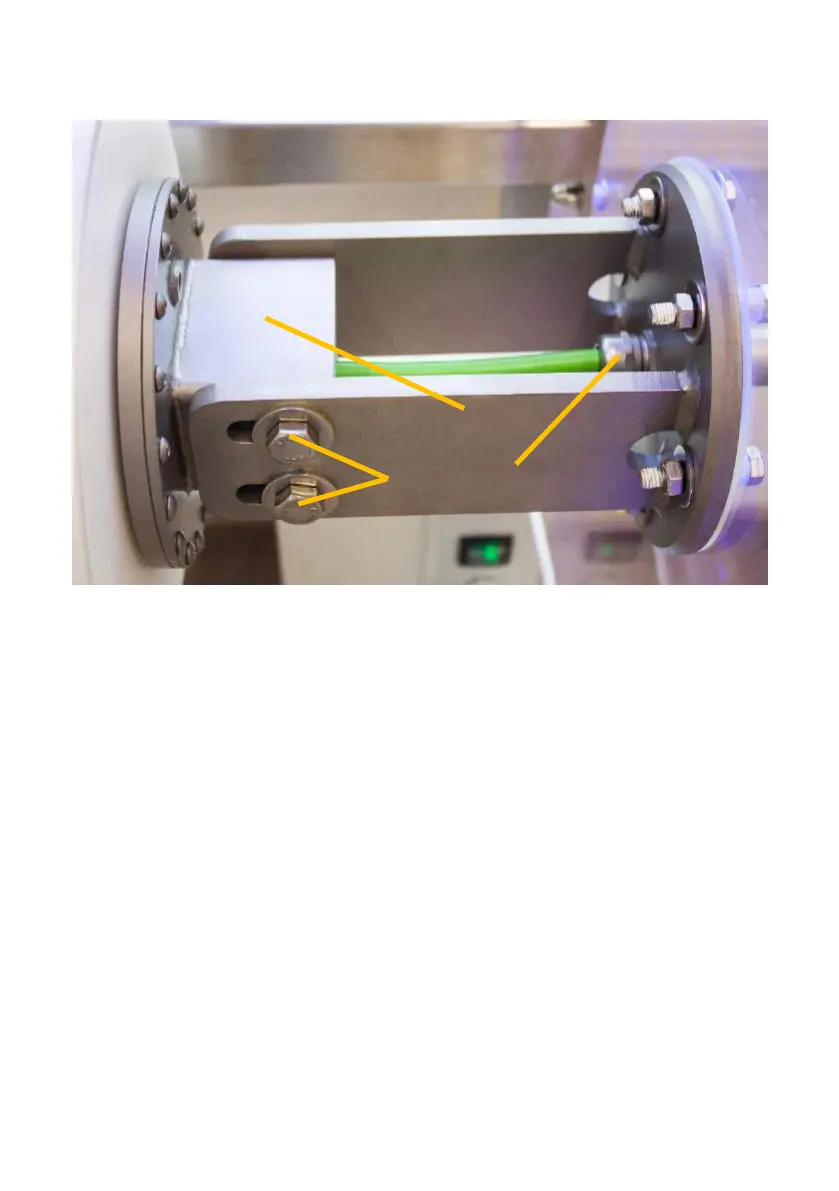

CABLE ROUTING BETWEEN DRIVE AND CLAMPING FLANGE
(1) Screw fitting (4 pieces)
(2) Clamping flange
(3) Metric cable gland
Installation steps
1. Use the four screw fittings (1) to mount the drive
in the clamping flange (2).
2. Guide the green drive cable through the metric cable gland.
3. Hand-tighten the metric cable gland using a VA universal pliers.
1
3
2
