Page | 13

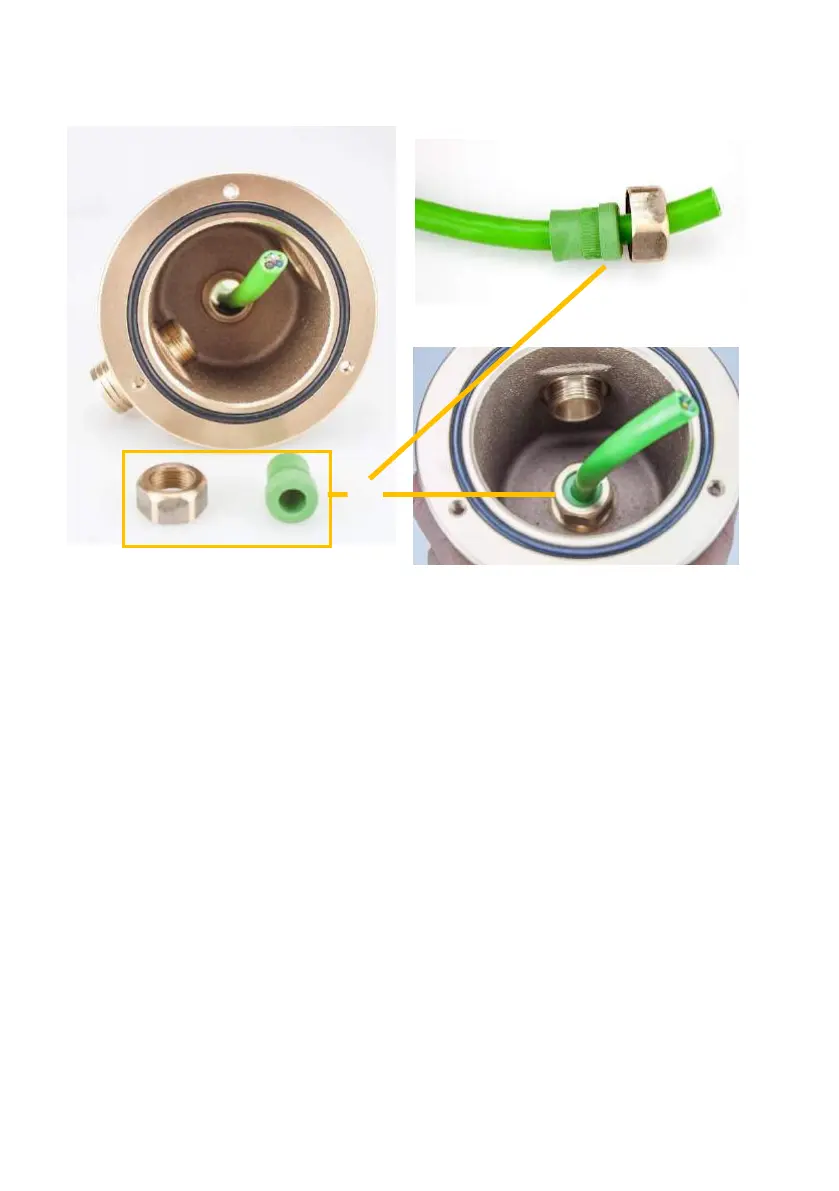

CABLE GLAND FOR DRIVE
(1) Cable gland (brass nut + rubber plug)
Installation steps
1. Slide the rubber plug (1) onto the cable as shown
2. Hand-tighten the cable gland (1) using a VA universal pliers
1
