Assemble the Left Rear Wheel

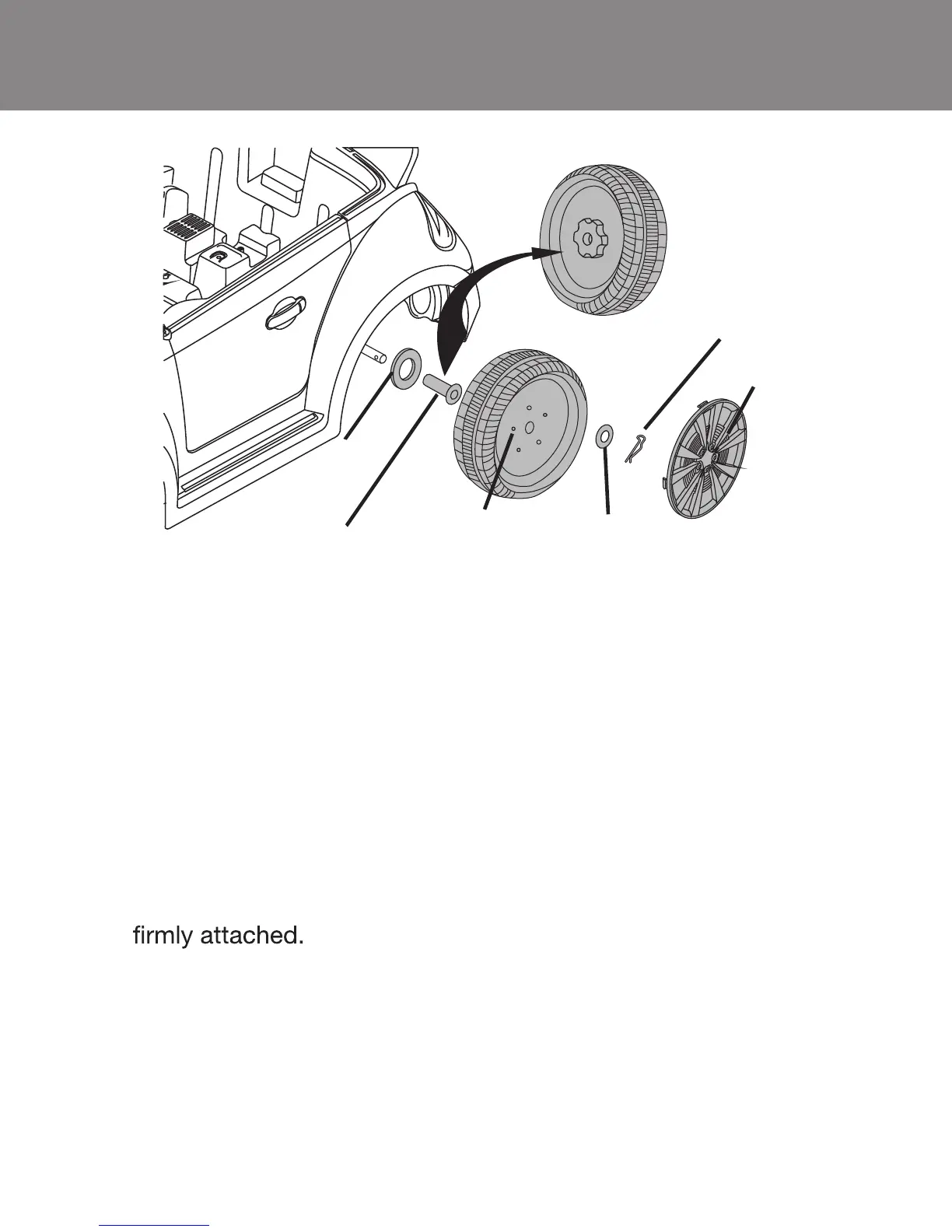

Left Rear Wheel:
1.
2. Slide a
Φ 12 washer (13.5) onto the left rear axle.
3. Slide an inner whelel spacer (13.6) onto the left rear wheel axle.
4. Slide the left rear wheel (8) onto the left rear axle. The side with
the gear teeth faces inward.
5. Slide a
Φ 12 washer (13.5) onto the left rear axle.
6. Slide the snap pin (13.3) into the hole on the left rear axle until
7. Snap the rim (9) onto the completed left wheel assembly.
13.5
13.6
8
13.5
13.3
9
Locate the two Φ12 washers (13.5), an inner wheel spacer (13.6)
and a snap pin (13.3) from blister pack.
