12
Right Rear Wheel:
2.
1.

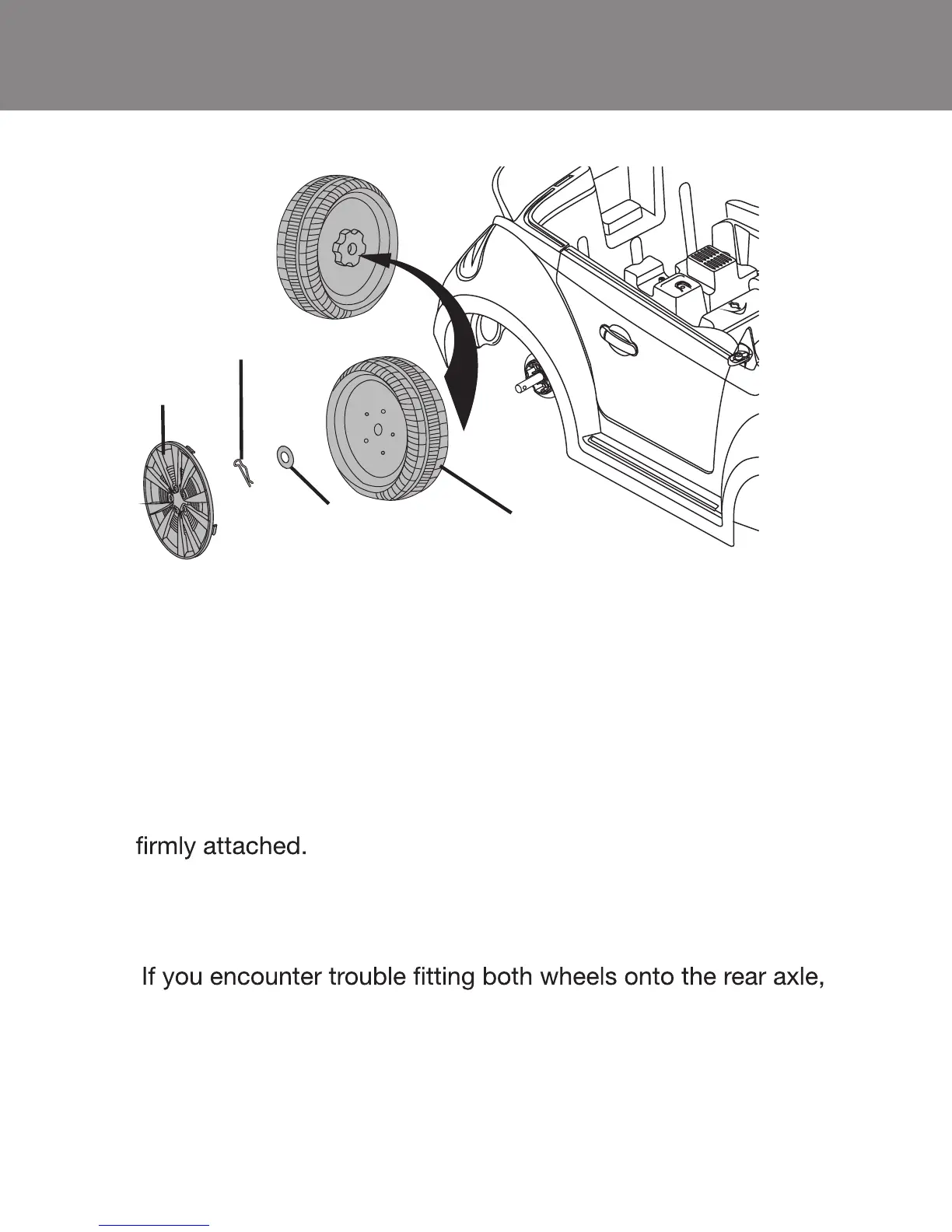

Slide the right rear wheel (8) onto right rear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
3. Slide the Φ12 washer (13.5) onto the right rear axle.
4. Slide the snap pin (13.3) into the hole on the right rear axle until
5. Snap the rim (9) onto the completed right wheel assembly.
Assemble the Right Rear Wheel
Helpful Tip:
1.
then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.
Locate a Φ12 washer (13.5) and a snap pin (13.3) from blister pack.
13.3
13.5
8
9
