Page 20 RollSeal SC-325 & SC-650 Controllers Part No 4801-5156 Rev 1-2017
Actual Position
Open Speed
Close Speed
TotalCycles
Service Cycles
Door Obstruction
(Cycles 100)
Mode
JOG
JOG Mode
Warning!
DO NOT Turn The Power ON Until All Of The Following Items Are Completed:
 All Wire And Cable Connections Are Completed.
 The Voltage Selection Switch And Jumper Are Set To Match The Required Supply
Voltage.
 The Motor Brake Rectifier Is Wired Accordingly To Match The Required Supply
Voltage.
6.4 Door Setup
The door limits are used to adjust the door position in the full open and closed positions. To set the door
limits, use the following steps:
1. Depress the Mode button (●) for at least 5 seconds. P1 (Close Time Delay) will be then be displayed in
the Display Indicator.
2. Depress and release the Mode button until PS1 (Change Program Limits) is displayed.
3. Depress Up ( ) until “yes” is displayed.
4. Depress the Mode button again (●). PS2 (Set Open Limit) will be displayed.
5. The door will proceed to the open limit and then stop. Once the door stops, adjust open limit using the
Up () or Down ( ) buttons until open limit is satisfactory.
6. Depress the Mode button (●) again. PS3 (Set Closed Limit) will be displayed.
7. The door will proceed to the closed limit and then stop. Once door stops, adjust this limit using the Up (
) or Down ( ) buttons until the close limit is satisfactory.
8. Depress the Mode button (●) again and the controller will exit the programming mode and return to
displaying the actual position.
9. The setup is now complete.

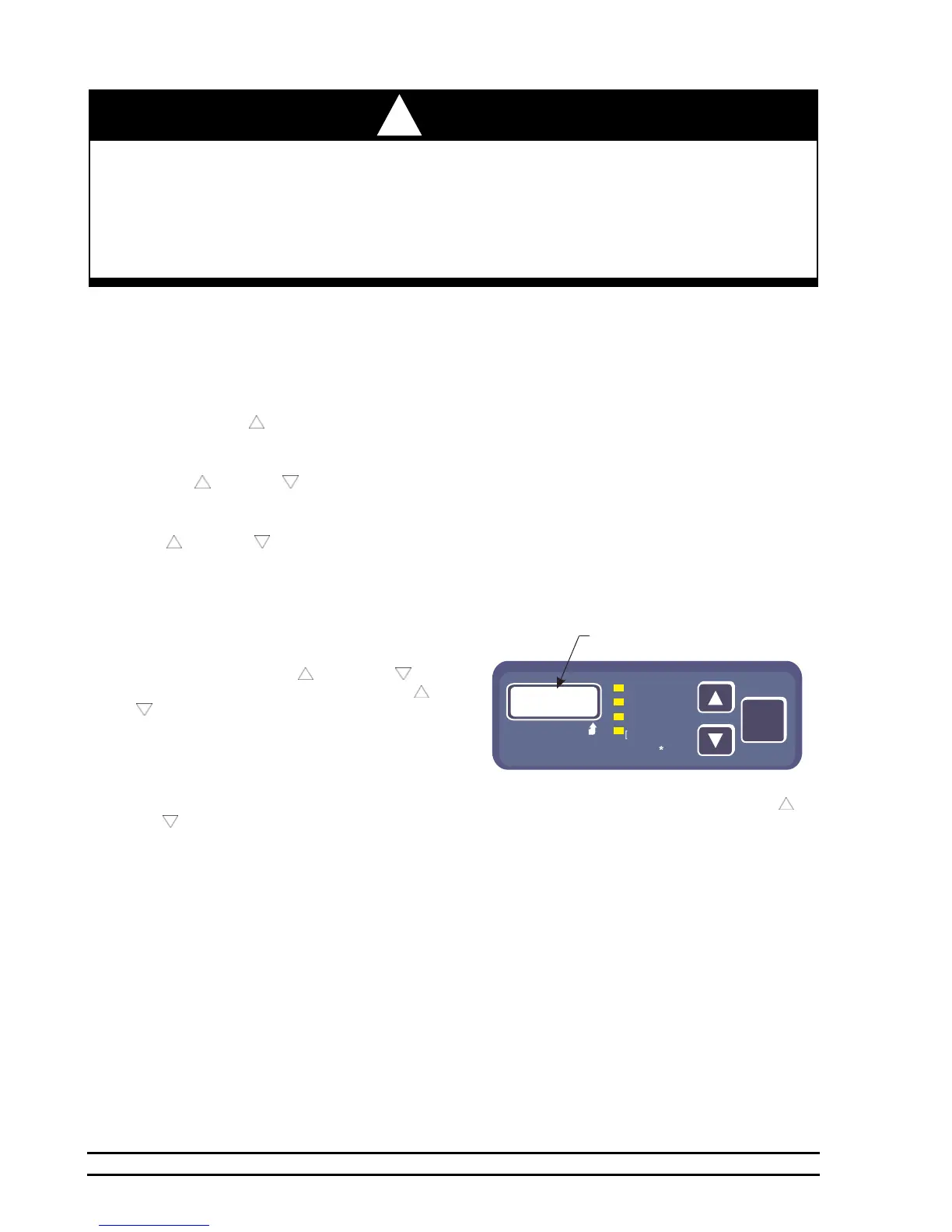

7 Jog Mode
The Jog Mode will permit an operator to manually control the
position of the door with the Up () and Down () arrow
buttons. To enter the Jog Mode, press both the Up () and
Down ( ) arrows at the same time for at least 5 seconds. The
Smart Controller will indicate the Jog Mode in the display as
shown below.
In the Jog Mode the door can be opened and closed and is not
affected by the Home limit switch or the Safety beam. Therefore, the operator must carefully watch the door
movement when nearing the full open and full closed positions. To exit the Jog Mode, press and hold the Up ()
and Down ( ) arrow buttons for at least 5 seconds. The controller will return to the normal operating mode with
the Actual Position shown in the display.
When returning to the normal operating mode, the controller will not know the exact position that the operator has
left the door when exiting the Jog mode. Therefore, the controller will display a series of three horizontal bars.
Upon the next command the door will slowly proceed to the full open position to reset its memory. The door will
always follow this procedure after exiting the Jog Mode.
8 Door Activation Methods
There are three types of operator switches that can be connected to the Smart Controllers for opening and closing the
automatic doors. These include a directional switch, a sequential switch and a timed switch. These switches can all
be connected simultaneously to the controller.
!
