Page 26 RollSeal SC-325 & SC-650 Controllers Part No 4801-5156 Rev 1-2017

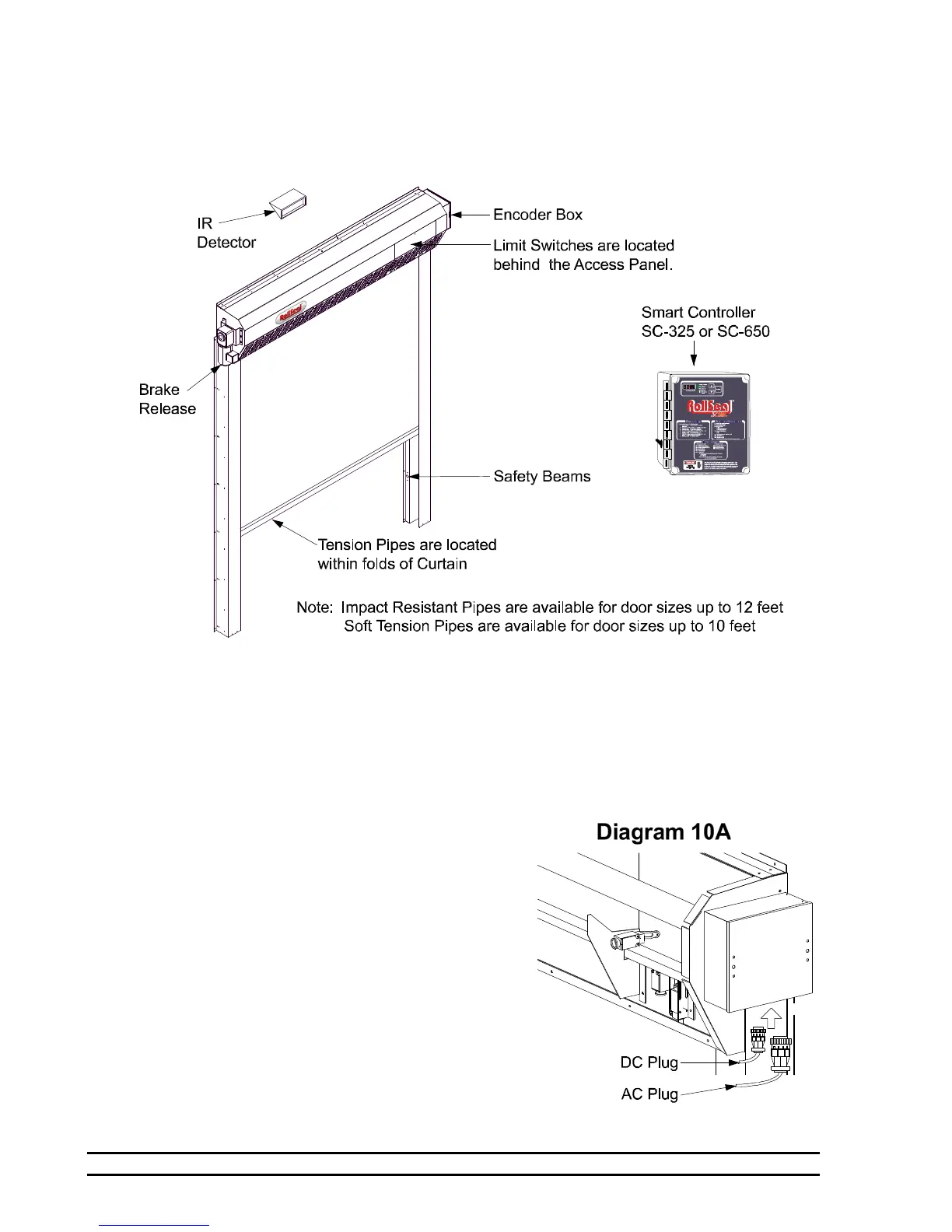

10.3 Typical Smart Controller Installation
A typical installation of the Smart Controller involves, at a minimum, connections to AC Power, the door
motor, the Up/Down button, and the Safety beam. Other accessories can be added such as a disconnect
switch, remote IR sensor, a remote radio link, and door movement indicators such as lights and bells.
10.4 Connection of Controller to Head Unit.
1. Mount controller at desired location within 3’ of junction
box on Head Unit.
2. Controller has and AC and DC harness prewired that
connects to head unit as shown in Diagram 10A.
