Part No 4801-5156 Rev 1-2017 RollSeal SC-325 & SC-650 Controllers Page 23
9 Troubleshooting Controller and/or Door
9.1 P12 – Input Status Indicators

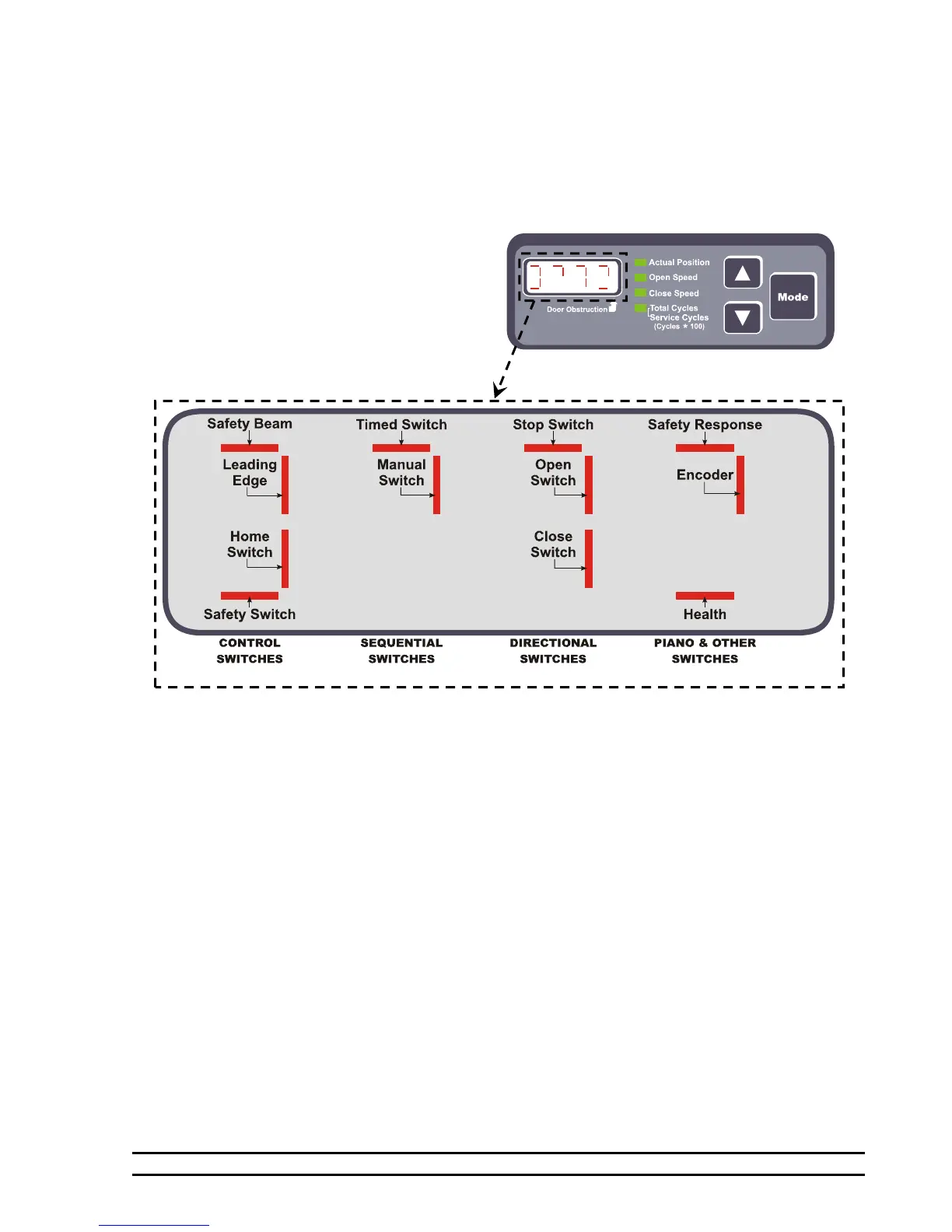

This parameter is used to service or troubleshoot the door. The various inputs are represented by LED
segments on the display as shown below.
If a display segment is “ON”, the switch is Made; Segment is “OFF”, switch is Not Made.
For Example, when the Safety Beam is obstructed, the Safety Beam display segment will turn ON and remain
ON until the obstruction is removed.
*Available on Software versions V0.21 and later.
Important Indicators:
 For the door to operate, the “Safety Switch” and “Health” display segments must be “ON”.
 For the door to close, the “Safety Beam” & “Leading Edge” display segments must be “OFF”.
 If the “Stop Switch” display segment is “ON”, the door will not operate.
 If the “Open Switch” display segment is “ON”, the door will not close.
 “Safety Response” display segment “ON” indicates that the piano switch selector is ON and the door
will Stop and Reverse upon contact with Safety Beam or Leading Edge; “OFF” means it will Stop
only.
 “Encoder” display segment “ON” indicates that the door is operating off of two encoders; “OFF”
indicates one encoder.
 “Health” indicates that the AC Drive is OK and that the controller is allowed to initiate door
movement.
