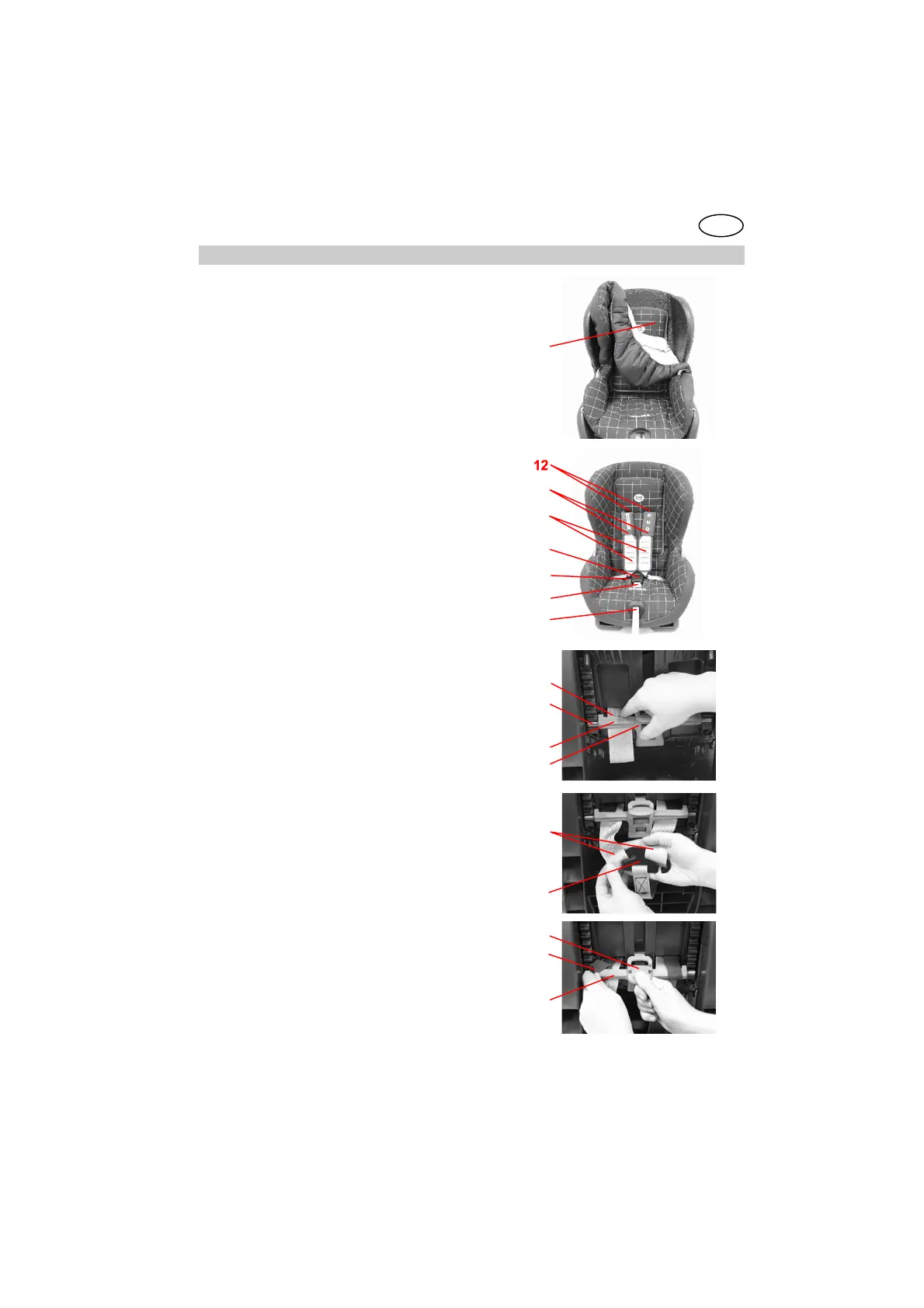

8.2. Refitting the cover
 Put on the cover of the head pad 35.
 Put the cover over the head pad 35
starting at the lower side of the square
hole.
35
 Feed the shoulder belts 10 (with buckle
tongues 19) through the cover.
 Attach the shoulder pads 11 to the
shoulder belts 10. (Do not exchange the
shoulder pads.)
 Feed the crotch belt 20 (with buckle 17
and crotch belt pad 21) and belt end 16
into cover.
 Clip the plastic insert of cover into the
opening of the seat shell.
11
10
17
21
20
16
 Thread the shoulder belts 10 through the
pair of slots 12.
 Push the shoulder belts 10 at the rear of
the seat between the deflection bar 32
and the extension 31 of the shoulder belt
height adjuster 14.
10
31
14
32
 Hook the shoulder belts 10 at the rear of
the seat shell into the yoke 13.
 Feed the belt loops of the shoulder pads
11 into the pair of slots 12.
10
13
 Press the button of the shoulder belt
height adjuster 14 at the rear of the seat
and tilt the shoulder belt height adjuster 14
forward.
 Now slide the belt loops of the shoulder
pads 11 onto the extension 31 of the
shoulder belt height adjuster 14.
11
31
14
