OPERATING MODES
WHITE MODE
In this Mode, the DMG DASH will create white light.
Use the Navigation Button to select an attribute to
modify.
INT: Rotate the Dimming & Selection Wheel to raise
or lower the intensity of the fixture by 1% increments.
Press the Dimming & Selection Wheel to scroll through
presets: 25% | 50% | 75% | 100%
CCT: Rotate the Dimming & Selection Wheel to raise
or lower the color temperature by 50ºK increments.
Press the Dimming & Selection Wheel to scroll through
presets: 1700K | 2850K | 3200K | 4000K | 5600K |
6500K | 7500K | 10,000K
M/G: Rotate the Dimming & Selection Wheel to raise
Press the Dimming & Selection Wheel to scroll through
presets: 0 | 13G | 25G | 50G | 75G | 100G | 100 M |
75M | 50M | 25M | 13M | 0
COLOR MODE: HSI
Color Mode is for creating custom colors using HSI
Button to select an attribute to modify.
INT: Rotate the Dimming & Selection Wheel to raise
or lower the intensity by 1% increments. Press the
Dimming & Selection Wheel to scroll through presets:
25% | 50% | 75% | 100%
CCT: Rotate the Dimming & Selection Wheel to raise
or lower the color temperature by 50ºK increments.
Press the Dimming & Selection Wheel to scroll through
presets: 1700K | 2850K | 3200K | 4000K | 5600K |
6500K | 7500K | 10,000K
SAT: Rotate the Dimming & Selection Wheel to
raise or lower the saturation level of the color by 1%
increments. Press the Dimming & Selection Wheel to
scroll through presets: 0% | 25% | 50% | 75% | 100%
HUE: Rotate the Dimming & Selection Wheel to modify
the Dimming & Selection Wheel to scroll through
presets: 0º | 60º | 120º | 180º | 240º | 300º | 0º

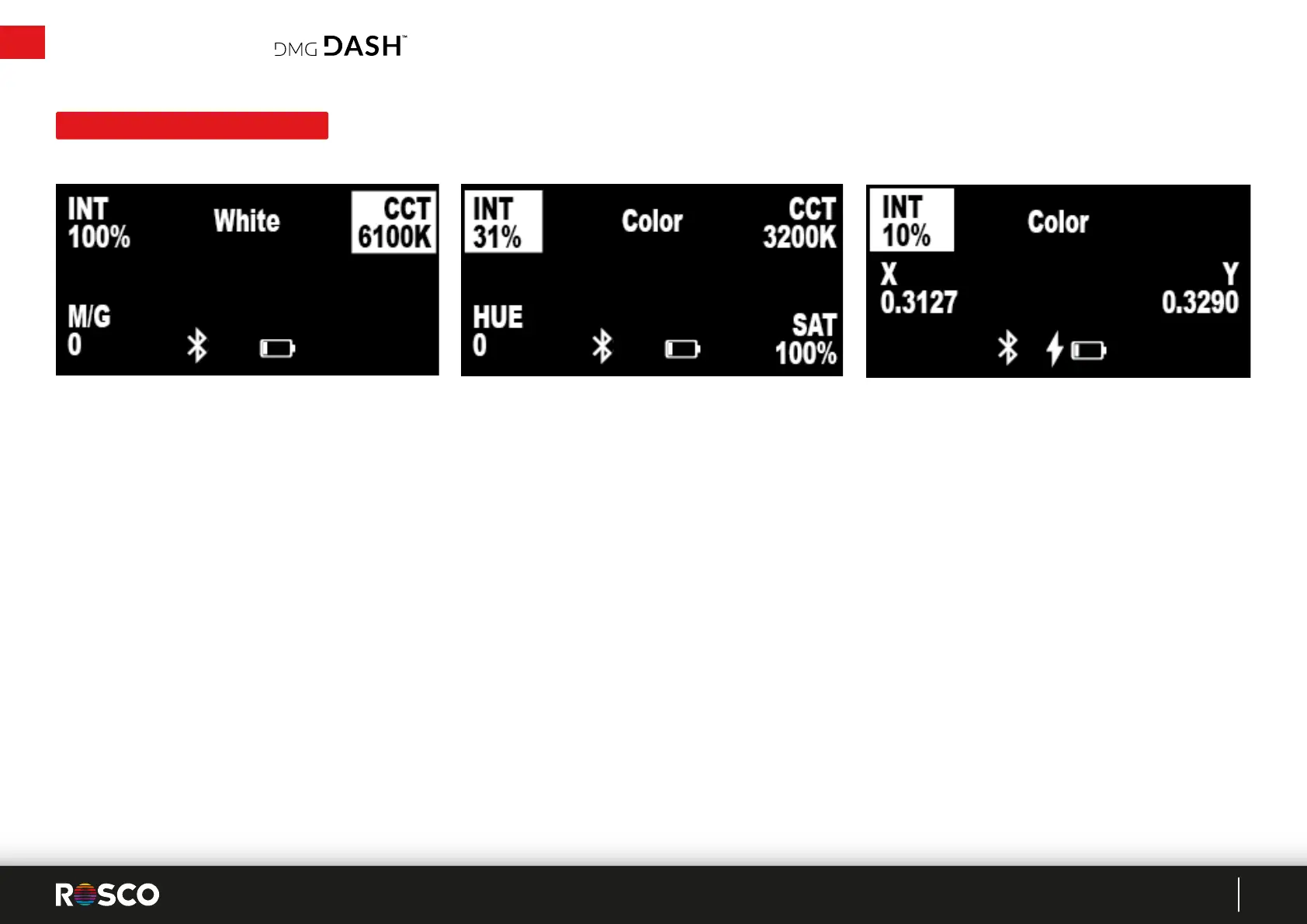

COLOR MODE: xy
Color mixing via CIE 1931 xy is available via the myMIX
app. This function is not available via the onboard
interface, however, the xy settings chosen via the app
will appear on the Active Screen while being controlled
via the app.
