Quick Installation Guide
00825-0100-4725, Rev BA
July 2003
Rosemount 8732/8700 Series

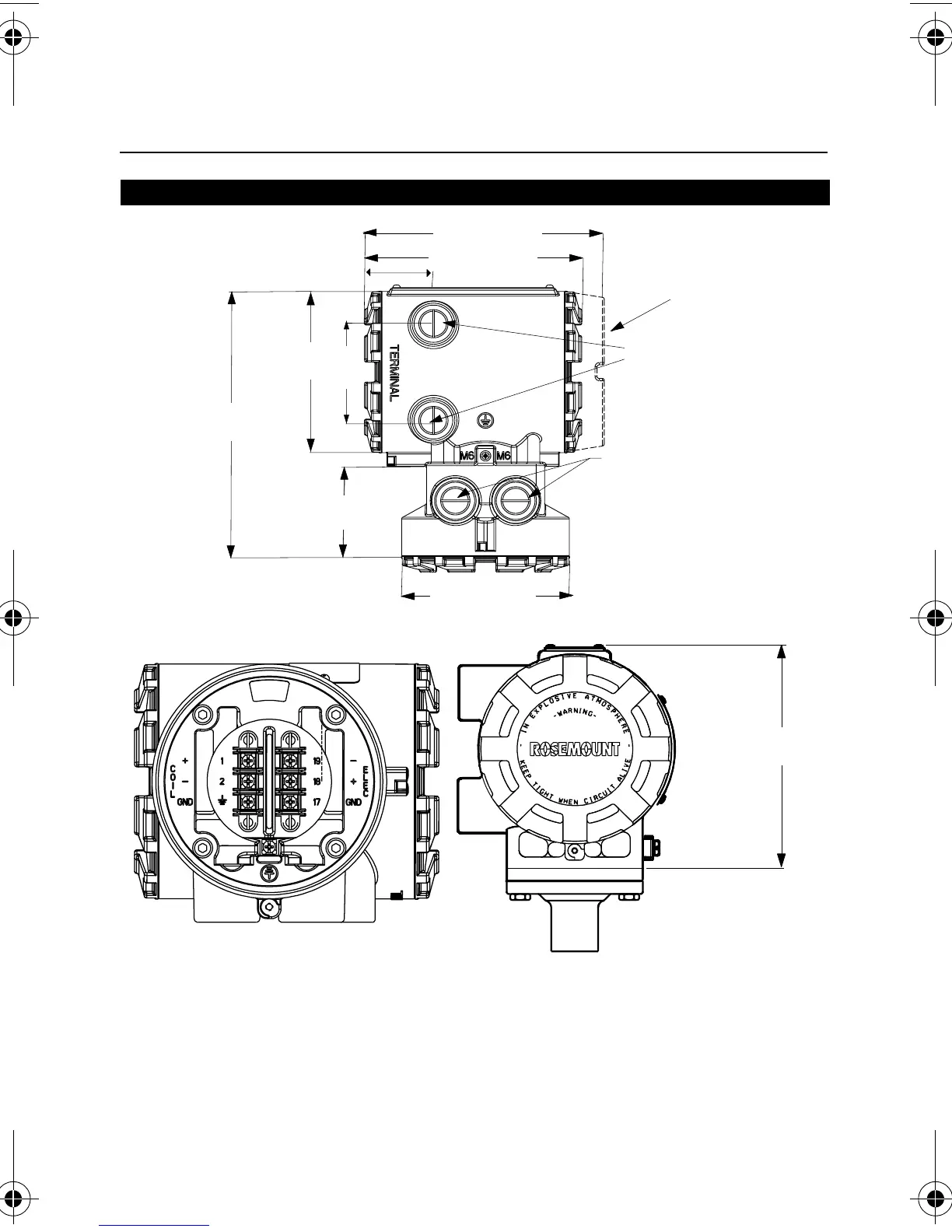

Figure 1. Rosemount 8732 Dimensional Drawing
5.82
(148)
4.97
(126)
6.48 (165)
3.07
(78)
8.81
(224)
4.97 (126)
3
/4”-14 NPT Electrical
Conduit Connections
(2 places)
3
/4”-14 NPT Flowtube
Conduit Connections
(2 places)
7.49 (190)
1.88 (47)
3.00
(76)
LOI Cover
8742-8742_06a, 8742_06b, 1002G01A
