Quick Installation Guide
00825-0100-4725, Rev BA
July 2003
Rosemount 8732/8700 Series
Electrical Considerations
Before making any electrical connections to the Rosemount 8732,
consider the following standards and be sure to have the proper power
supply, conduit, and other accessories.
Rotate Transmitter Housing
The electronics housing can be rotated on the flowtube in 90°
increments by loosening the four mounting bolts on the bottom of the
housing, and reinstalling the bolts. When the housing is returned to its
original position, be sure the surface is clean and there is no gap
between the housing and the flowtube.
STEP 2: HANDLING
Handle all parts carefully to prevent damage. Whenever possible,
transport the system to the installation site in the original shipping
containers. Teflon
®
-lined flowtubes are shipped with end covers that
protect it from both mechanical damage and normal unrestrained
distortion. Remove the end covers just before installation.

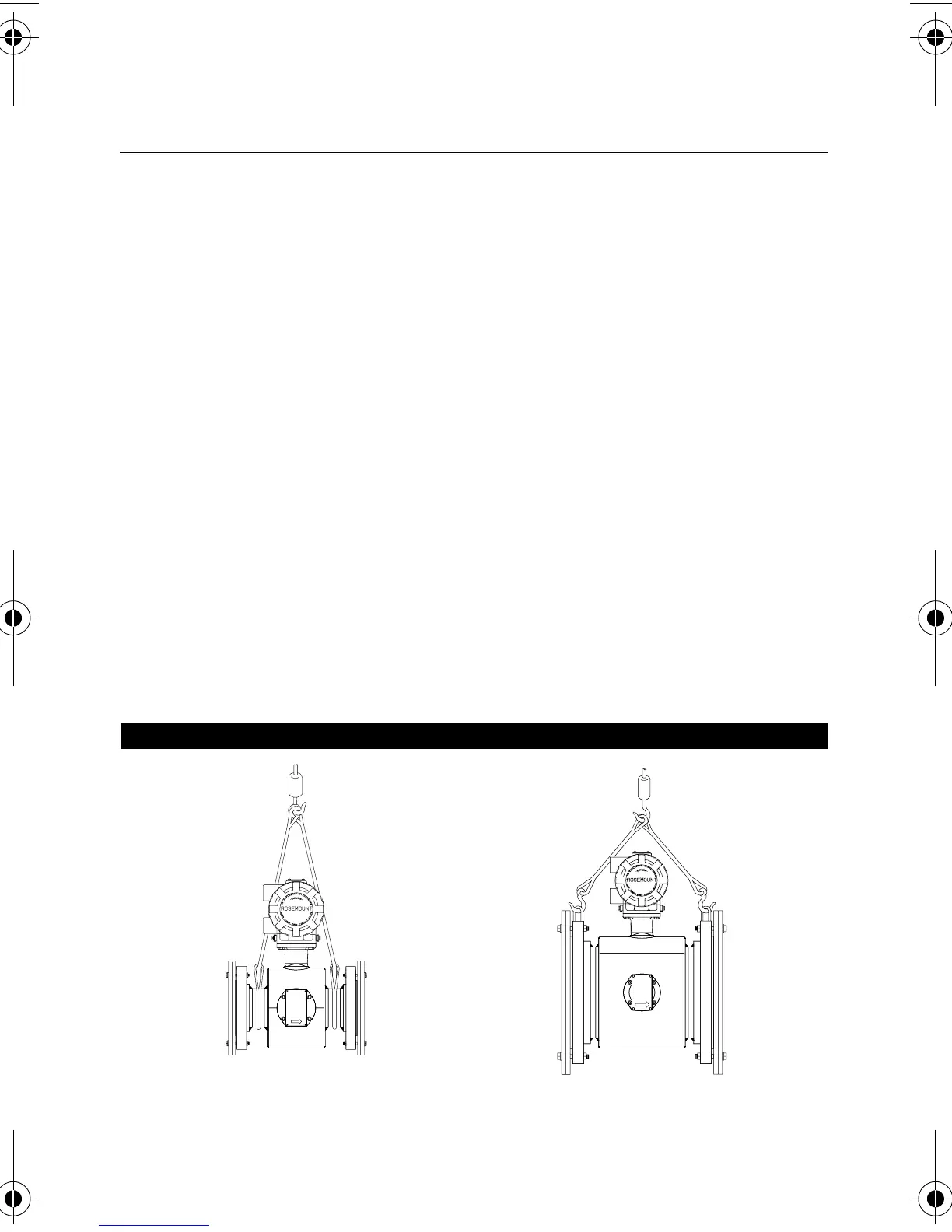

Figure 2. Rosemount 8705 Flowtube Support for Handling
½- through 4-Inch
Flowtubes
6-Inch and Larger
Flowtubes
8732-0281B02A, C02A
