Rosemount 8732 Series User Manual

Quick Installation Guide
00825-0100-4725, Rev BA
July 2003
Rosemount 8732/8700 Series
STEP 3: MOUNTING
Upstream/Downstream Piping
To ensure specification accuracy over widely varying process
conditions, install the flowtube a minimum of five straight pipe
diameters upstream and two pipe diameters downstream from the
electrode plane (see Figure 3).
Flow Direction
The flowtube should be mounted so the FORWARD end of the flow
arrow, shown on the flowtube identification tag, points in the direction
of flow through the tube.
Flowtube Orientation
The flowtube should be installed in a position that ensures the
flowtube remains full during operation. Vertical installation allows
upward process fluid flow and keeps the cross-sectional area full,
regardless of flow rate. Horizontal installation should be restricted to
low piping sections that are normally full. In these cases, orient the
electrode plane to within 45 degrees of horizontal.

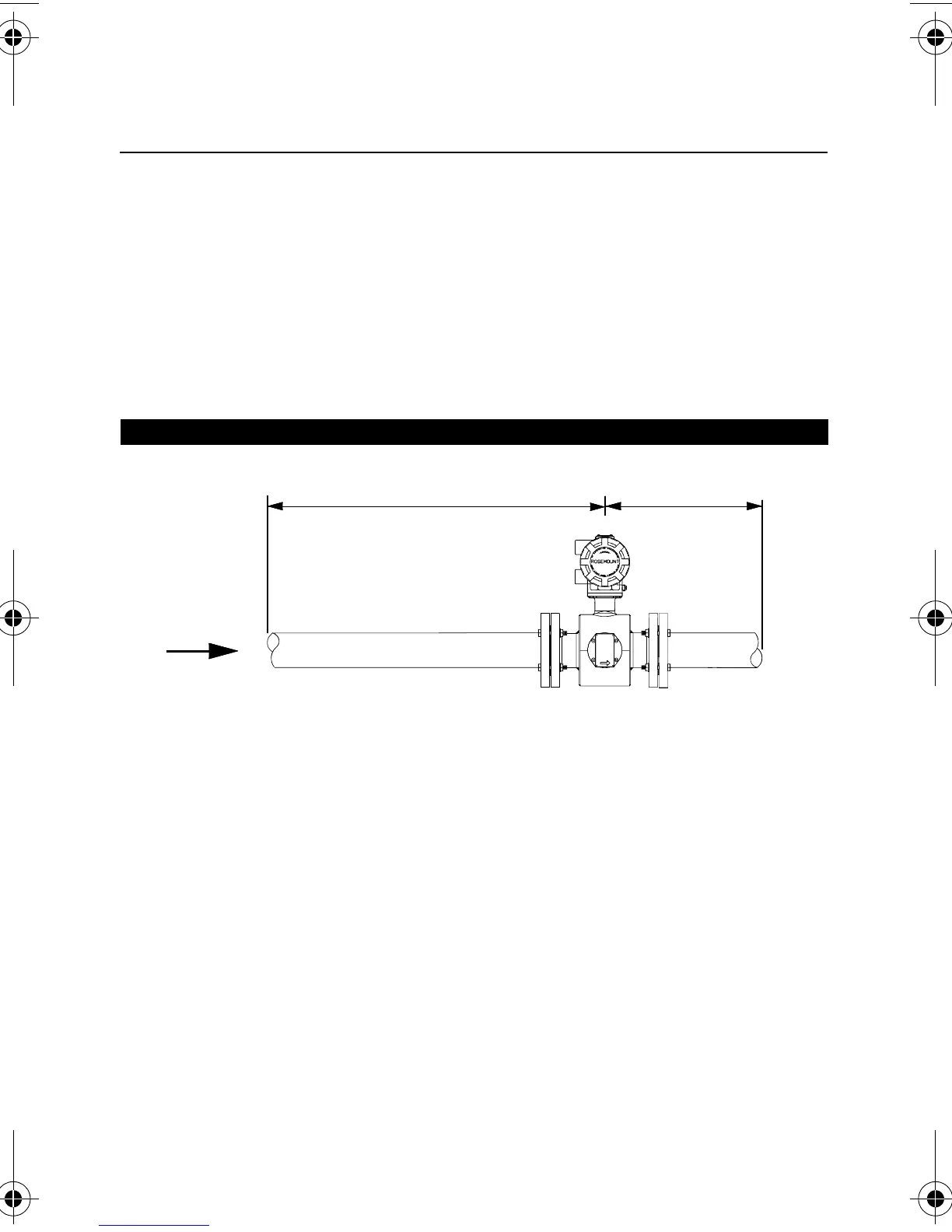

Figure 3. Upstream and Downstream Straight Pipe Diameters
5 Pipe Diameters
2 Pipe Diameters
Flow
8732-0281G02A
4725_revBA_qig.fm Page 8 Thursday, July 3, 2003 12:47 PM

Rosemount 8732 Series Specifications

General

Category	Measuring Instruments
Diagnostics	Yes
Measurement Type	Volumetric Flow
Output	4-20 mA, HART
Enclosure Rating	NEMA 4X, IP66
Communication Protocol	HART, FOUNDATION Fieldbus, Modbus
Product Type	Transmitter
Enclosure	Stainless Steel
Process Connection	Flanged
Material	Stainless Steel
Certifications	ATEX, IECEx, CSA, FM
Power Supply	11 to 42.4 VDC
Flow Range	0.04 to 12 m/s (0.13 to 39 ft/s)
