Rosemount 8732 Series User Manual

Quick Installation Guide
00825-0100-4725, Rev BA
July 2003
Rosemount 8732/8700 Series
The electrodes in the Rosemount 8705 flowtube are properly
orientated when the two measurement electrodes are in the 3 and 9
o’clock positions, as shown on the right of Figure 4.
The electrodes in the Rosemount 8711 are properly orientated when
the top of the flowtube is either vertical or horizontal, as shown in
Figure 5. Avoid any mounting orientation that positions the top of the
flowtube at 45° from the vertical or horizontal position.

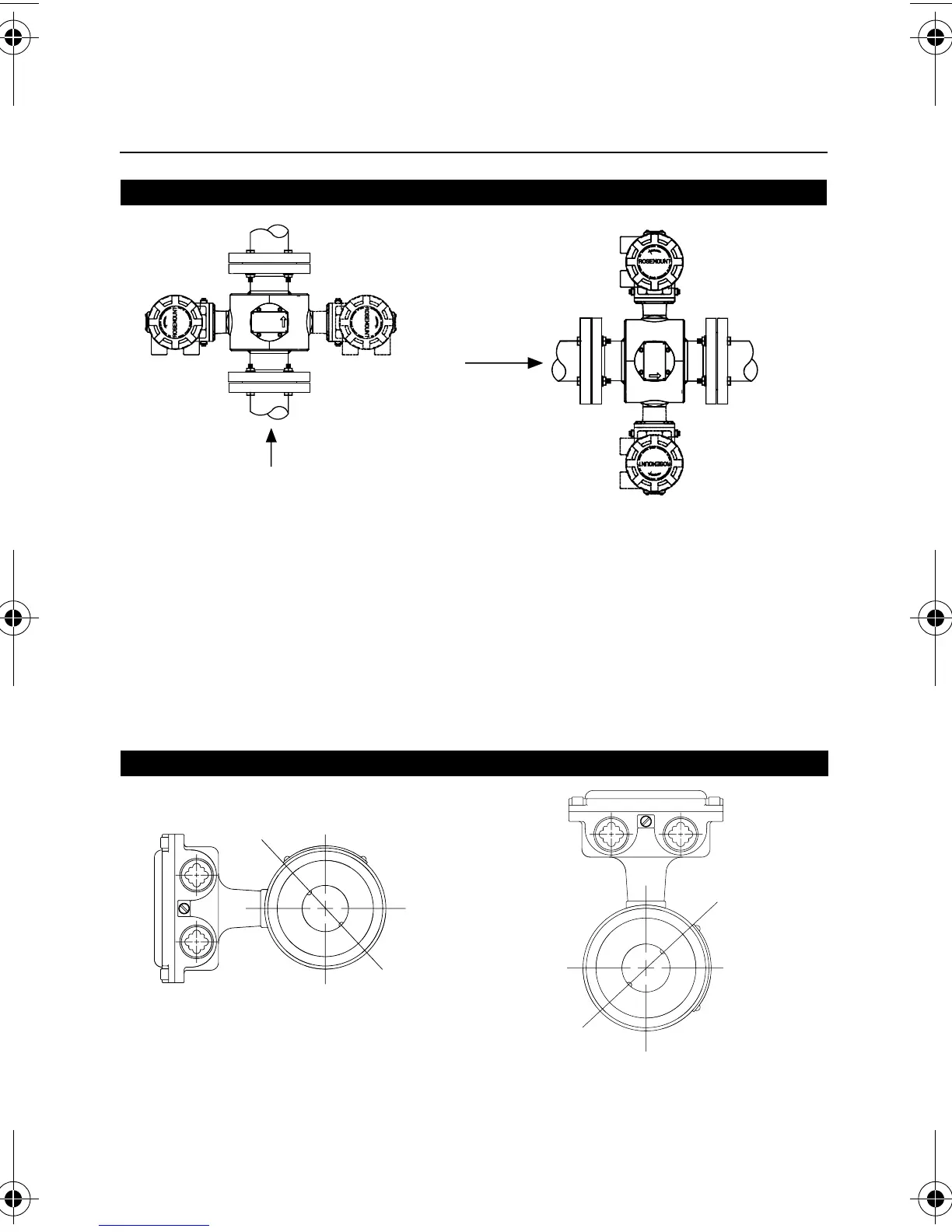

Figure 4. Flowtube Orientation
Figure 5. Rosemount 8711 Mounting Position
FLOW
A
8732-0005A01A, 8732-0005A01C
FLOW
45° Electrode Plane
8711-8711-E01A, 8711-8711-F01A
45° Electrode Plane
4725_revBA_qig.fm Page 9 Thursday, July 3, 2003 12:47 PM

Rosemount 8732 Series Specifications

General

Category	Measuring Instruments
Diagnostics	Yes
Measurement Type	Volumetric Flow
Output	4-20 mA, HART
Enclosure Rating	NEMA 4X, IP66
Communication Protocol	HART, FOUNDATION Fieldbus, Modbus
Product Type	Transmitter
Enclosure	Stainless Steel
Process Connection	Flanged
Material	Stainless Steel
Certifications	ATEX, IECEx, CSA, FM
Power Supply	11 to 42.4 VDC
Flow Range	0.04 to 12 m/s (0.13 to 39 ft/s)
