Seite /
Page
- 44 -
28.03.1996 / PT / Rev 00
Feuerlöschpumpe R600
Fire Pump R600
© 1996
Füllen des Wassertanks
Filling the Water Tank

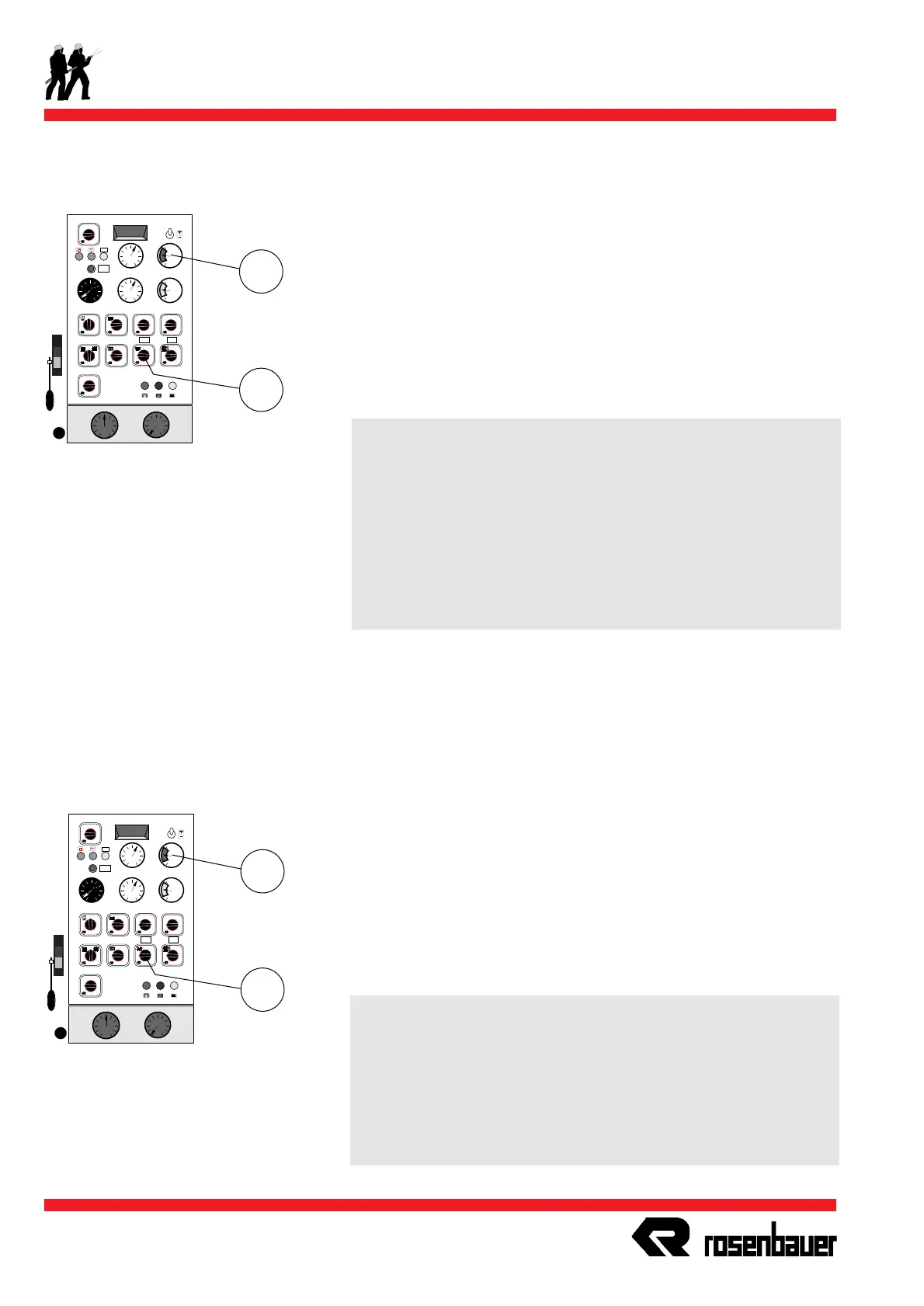

Füllen des Wassertanks mit der Pumpe
- Pumpe wie im Kapitel Bedienung der Pumpenanlage
◊ "Ansaugen von offener Wasserstelle" oder
◊ "Hydrantenbetrieb" beschrieben, betreiben.
- Tankfüllventil öffnen:
◊ Schalter (S17) auf Pos. "1" drehen.
- Wassertankinhaltsanzeige (P1) beobachten.
- Wenn Wasser aus dem Tanküberlauf strömt, Drehzahl reduzie-
ren und Tankfüllventil durch Drehen des Schalters (S17) auf
Pos. "0" schließen.
WICHTIG !
Die Entleerungshähne müssen beim Füllen des Tanks geschlossen
sein!
Der Einspeisdruck in den Wassertank sollte 5 bar nicht überstei-
gen!
Mit Hilfe des Tankfüllventiles kann ein Kreislauf in der Pumpe
erzeugt werden, um ein Heißlaufen der Pumpe zu verhindern. Dazu
sind das Tanksaug- und das Tankfüllventil zu öffnen.
Bedingung: Kein Schaummittel in der Pumpe.
Filling the Water Tank with Pump
- Operate pump as mentioned in:
◊
"Drafting operation from open water source" or
◊
"Hydrant operation".
- Open tank fill valve:
◊
Turn switch (S17) to position "I".
- Observe water tank level gauge (P1).
- When the water tank is full, reduce pump speed and close fill
valve by turning switch (S17) in position "I".
ATTENTION !
Before filling the water tank, the drain valve(s) must be closed!
The maximal filling pressure is 5 bar!
By opening the tank fill valve, it is possible to run the system in "By-
Pass mode" to prevent the system from overheating. Therefore,
open the tank suction- and tank fill valves.
Condition: No foam compound in the pump.
+-
0
0
0
2
5
7
I
0
START
OFF
RUN
I
0
I+
I
0
I
0
I
0
0
I
0
I
0
3%
6%
8%
DIESEL
MOTOR
STOP
0
I
ND
AUSGANG
LINKS
ND
AUSGANG
RECHTS
S17
P1
+-
0
0
0
2
5
7
I
0
START
OFF
RUN
I
0
I+
I
0
I
0
I
0
0
I
0
I
0
3%
6%
8%
DIESEL
MOTOR
STOP
0
I
ND
AUSGANG
LINKS
ND
AUSGANG
RECHTS
S17
P1
