Rosenbauer R600 - Maintenance Chart

Seite / Page - 64 -
28.03.1996 / PT / Rev 00
Feuerlöschpumpe R600
Fire Pump R600
© 1996
Wartung
Maintenance
Maintenance Chart
1
) SAE 30, API / SF, MIL-L-46152 B, FORD M2C 9011, GM 6048 M
2
) SAE 90, API / GL 4, MIL-L-2105, FORD M2C-28-B
1
4
+-
0
0
0
0
0
0
2
2
5
5
7
7
I
0
START
OFF
RUN
I
0
I+
I
0
I
0
I
0
0
I
0
I
0
3%
6%
8%
DIESEL
MOTOR
STOP
0
I
ND
AUSGANG
LINKS
ND
AUSGANG
RECHTS
5
6
2
3

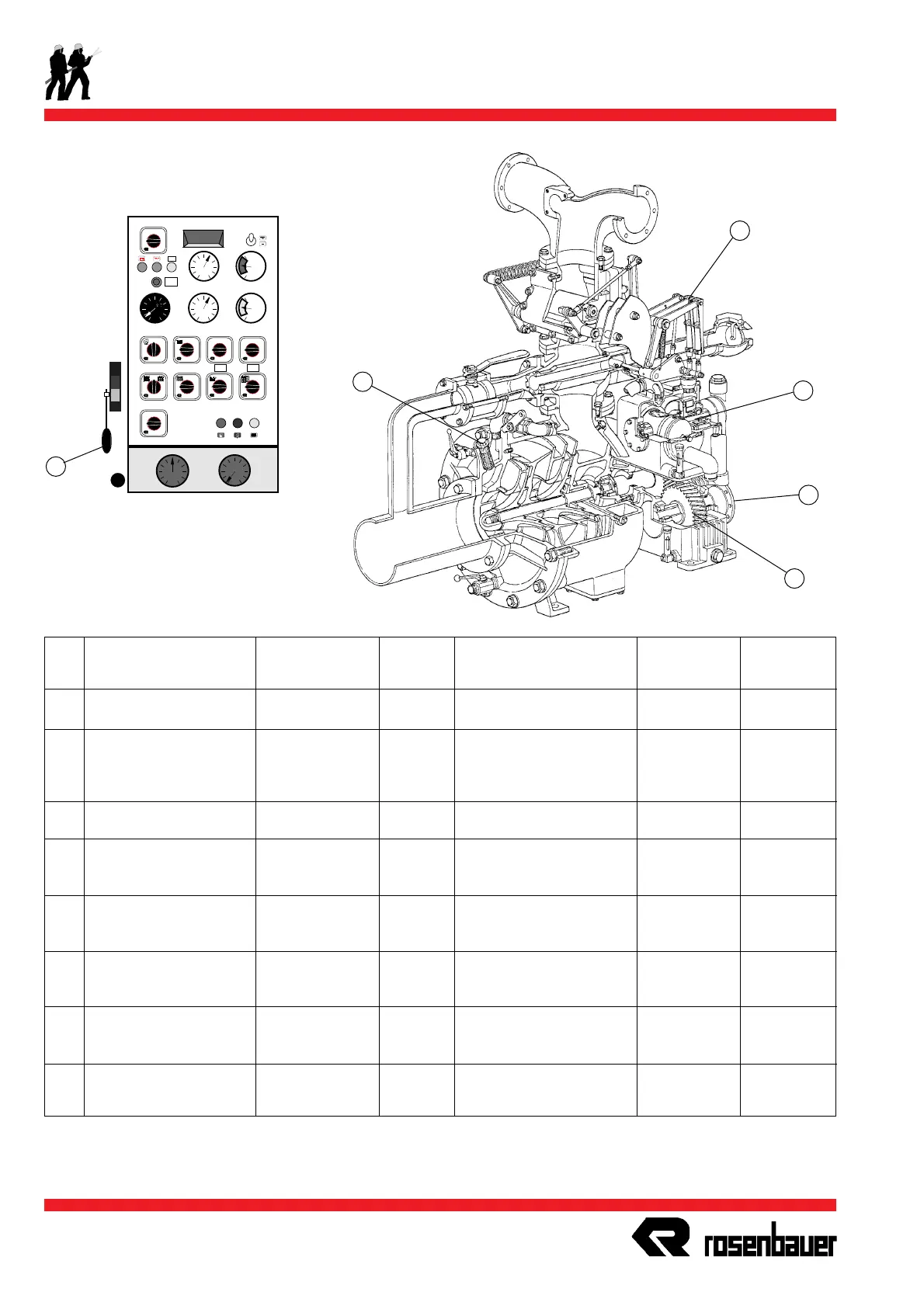

OIL CHANGE GREASE-
ITEM COMPONENT LUBRICANT VOLUME HOURS/TERM INTERVALL CHECK
1 Pump gear box
2
) transm. oil SAE 90 2-3.5 ltr. 50-100 J - H
2 Priming pump
1
) engine oil SAE 30 1.2 ltr. 25-50 J - M
Valve plates - - - - - J
Belt - - - - - J
3 Filler screw - - - - - J
4 All moving parts Multi purp. grease - - - J J
according NLGI II - - - - -
5 Throttle control Multi purp. grease - - - H -
according NLGI II
6 Propeller shaft Multi purp. grease - - - J -
according NLGI II
7 Shaft of Multi purp. grease - - - H -
pressure valves according NLGI II
8 Hose reel hub Multi purp. grease - - - M -
according NLGI II
M ...... monthly
H....... every six month
J ....... once a year
