- 45 -
28.03.1996 / PT / Rev 00
Feuerlöschpumpe R600
Fire Pump R600
© 1996
Füllen des Wassertanks
Filling the Water Tank

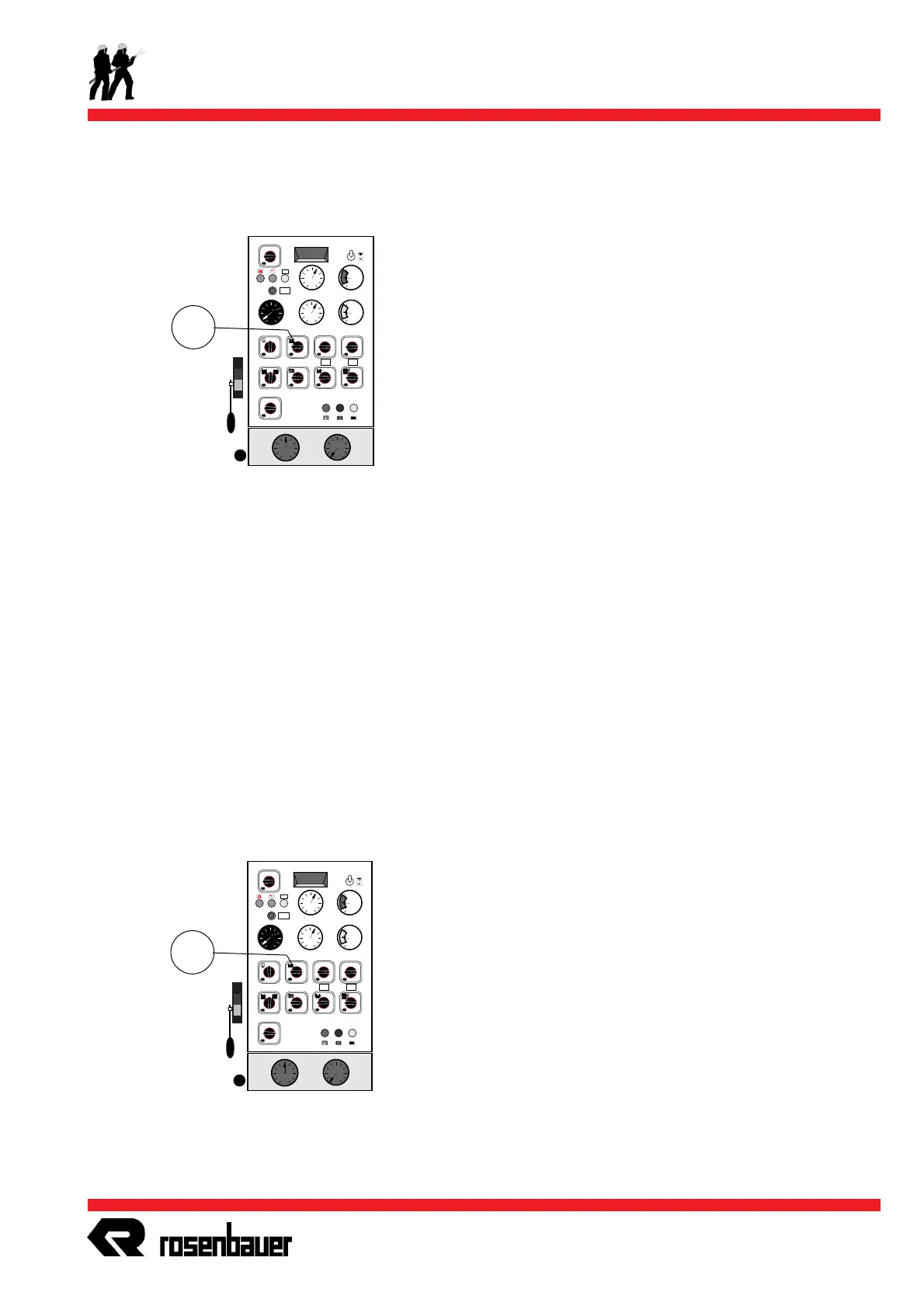

Füllen des Wassertanks mit automatischer Niveau-
regelung
*
- Zubringerschläuche am Wassertankfüllanschluß ankuppeln.
- Hydrantenventil langsam öffnen.
- Tankfüllventil öffnen: Schalter (S35) in Stellung "I" schalten.
Folgendes Programm läuft nun ab:
Wenn der Wasserstand im Tank weniger als 70% beträgt,
werden die Ventile der Tankfülleitungen geöffnet.
Wenn der Wassertank voll ist (95%), schließt die Niveau-
regelung die Ventile der Tankfülleitungen.
Sinkt der Wasserstand durch Wasserentnahme auf ca. 70%
ab, werden die Tankfüllventile automatisch geöffnet -
Tank wird wieder aufgefüllt.
- Um den Tank bis zum Rand zu füllen, Schalter (S35) in Stellung
"I+" halten bis Wasser am Überlauf austritt.
- Nach dem Füllen Schalter (S35) in Stellung "0" zurückschalten.
Filling the Water Tank with Automatic Tank Level
Control
*
- Connect supply hoses to water tank fill connection(s).
- Open hydrant valve slowly.
- Open tank fill valves: Turn switch (S35) to pos. "I".
Following cycle starts:
If the water tank content is less than 70%, the tank fill valves
will open.
If the water tank is full (95%), the automatic tank level
control closes the fill valves.
When the tank level drops to approx. 70%, the tank fill valves
will open automatically -
the water tank is filled up again.
- To fill up the tank completely, hold switch (S35) in position "I+"
until water flows out of the overflow.
- After filling procedure, turn switch (S35) back into position "0".
+-
