- 48 -
28.03.1996 / PT / Rev 00
Feuerlöschpumpe R600
Fire Pump R600
© 1996

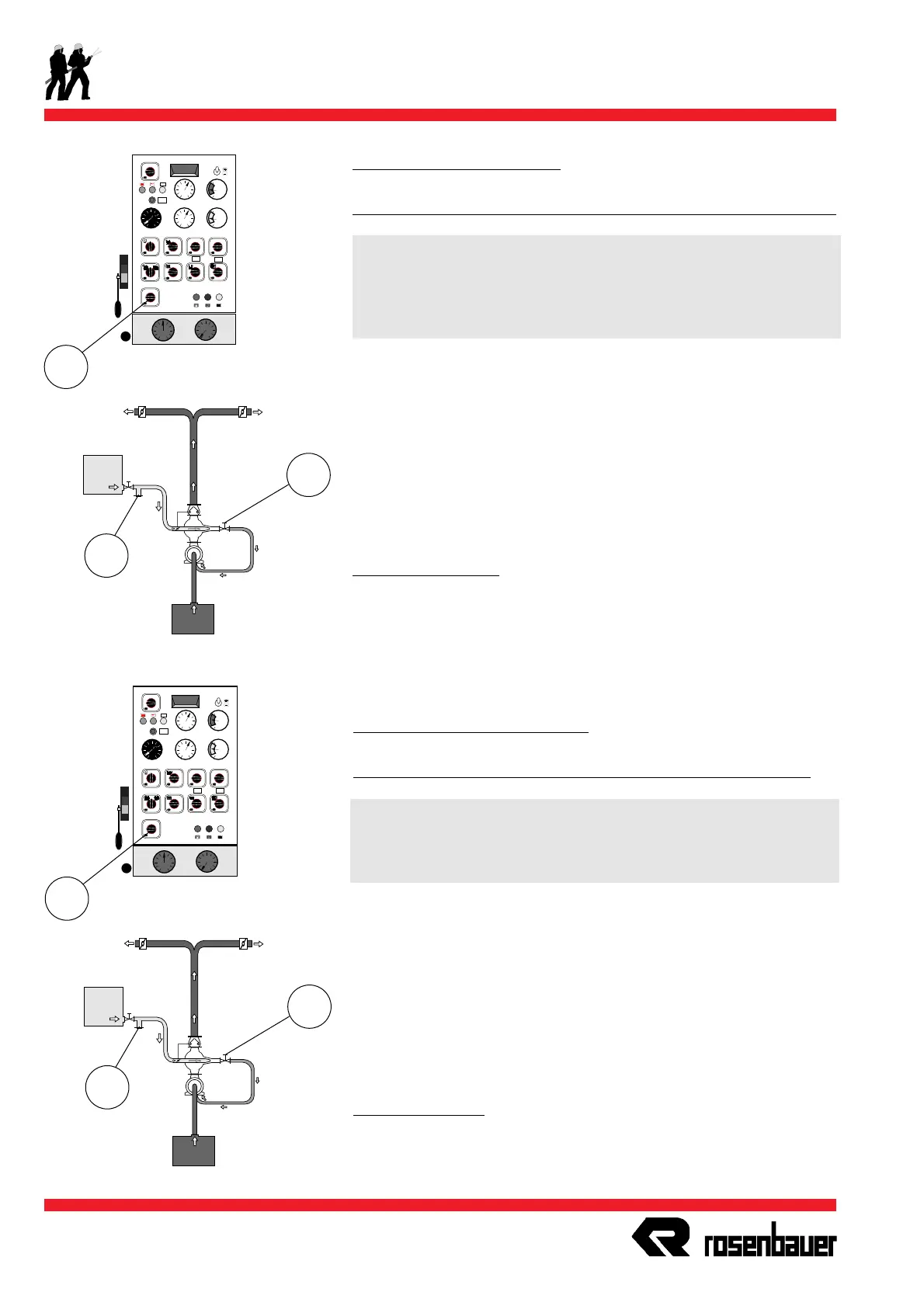

Spülen nach Schaumbetrieb
Vorgangsweise über den Schaummittelfremdsaug- spülanschluß:
WICHTIG !
Um jederzeit ein einwandfreies Funktionieren der Pumpenanlage
zu gewährleisten, ist es wichtig, die Pumpe, Entlüftungspumpe,
Rohrleitungen und Vormischer zu spülen.
- Pumpenanlage wie im Kapitel
"Tanksaugbetrieb" oder
"Ansaugen von offener Wasserstelle" beschrieben, betreiben.
- Saugschlauch am Schaummittelfremdsaug- und Spülanschluß
(J46) ankuppeln und das freie Ende in einen Behälter mit reinem
Wasser geben.
- Schaummittelfremdsaug- und Spülventil öffnen. *
- Schalter (S14) auf maximale Zumischrate einstellen. *
Wichtiger Hinweis:
Damit der Vormischer arbeitet muß das Treibwasserventil (J77)
offen sein.
Wartung
Maintenance
+-
0
0
0
0
0
0
2
2
5
5
7
7
I
0
START
OFF
RUN
I
0
I+
I
0
I
0
I
0
0
I
0
I
0
3%
6%
8%
DIESEL
MOTOR
STOP
0
I
ND
AUSGANG
LINKS
ND
AUSGANG
RECHTS
J77
J46
S14
Flushing after Foam Operation
Procedure via foam compound drafting/ flushing connection:
ATTENTION !
To ensure pump operation without malfunctions it is important to
flush pump, priming pump, pipes, and foam proportioner.
- Operate pump as mentioned in:
"Tank suction operation" or
"Drafting operation from open water source".
- Attach foam suction hose to the foam drafting/flushing connec-
tion (J46) and put opposite end into a container with clean
water.
- Open foam drafting/flushing valve. *
- Turn switch (S14) to maximal admixing rate. *
Important notice:
To keep the foam proportioner in operation, the induction valve
(J77) must be open.
+-
0
0
0
0
0
0
2
2
5
5
7
7
I
0
START
OFF
RUN
I
0
I+
I
0
I
0
I
0
0
I
0
I
0
3%
6%
8%
DIESEL
MOTOR
STOP
0
I
ND
AUSGANG
LINKS
ND
AUSGANG
RECHTS
J77
J46
S14
