SFC-6901 User Guide (v1.0) Supported SFP Modules • 41
Supported SFP Modules
This chapter summarizes the supported SFP modules for the SFC-6901.
SFP-FIBER-12G
The SFP-FIBER-12G is a single optical transceiver module that supports data rates up to 12Gbps for
single fiber communications.
Features
• SMPTE 297-2006 compatible for SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI
• Compliant with SFP MSA (Small Form-Factor Pluggable Multi-Source Agreement) and SFS-8472
• Compliant with SMPTE 297, SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, and SMPTE 2082
• 1310 DFB laser diode with CML logic interface
• Duplex LC receptacle
• Up to 10km on 9/125µm SMF
• Single 3.3V power supply
• Operating temperature range: 0°C to 70°C
• SFP package size: 56.5mm x 13.4mm x 8.6mm

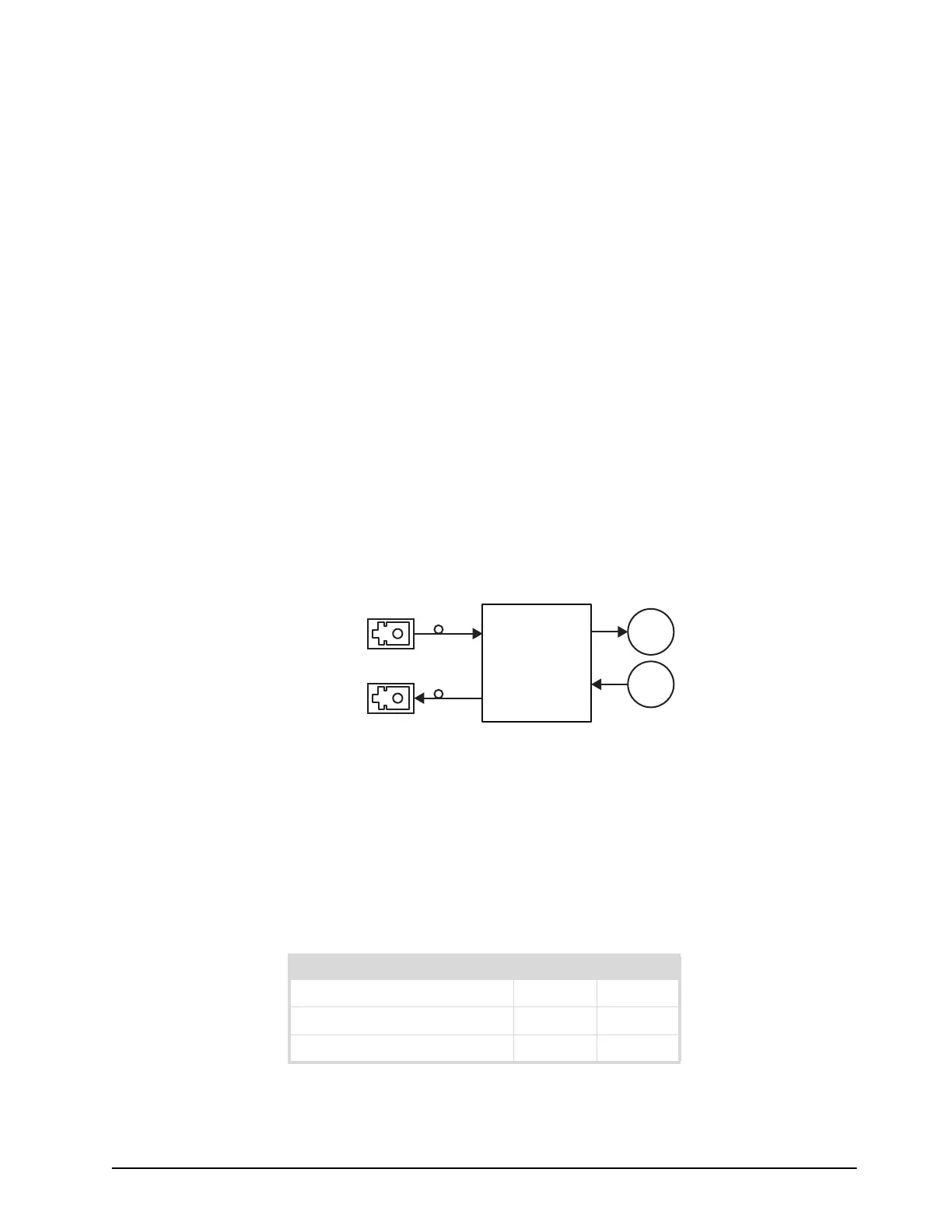

Simplified Block Diagram
Figure 8 SFP-FIBER-12G — High Level Block Diagram
Technical Specifications
Note that specifications are subject to change without notice.
Absolute Maximum Ratings
Exceeding any of these ratings may permanently damage the module. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
Table 18 Absolute Maximum Ratings
Parameter Min. Max.
Supply Voltage 0V +3.6V
Storage Temperature -40°C +85°C
Relative Humidity 5% 95%
OPTICAL
MODULE
FIBER IN
(1310nm)
FIBER OUT
(1310nm)
SDI
IN
SDI
OUT
