SFC-6901 User Guide (v1.0) Supported SFP Modules • 45
Physical Channel Position

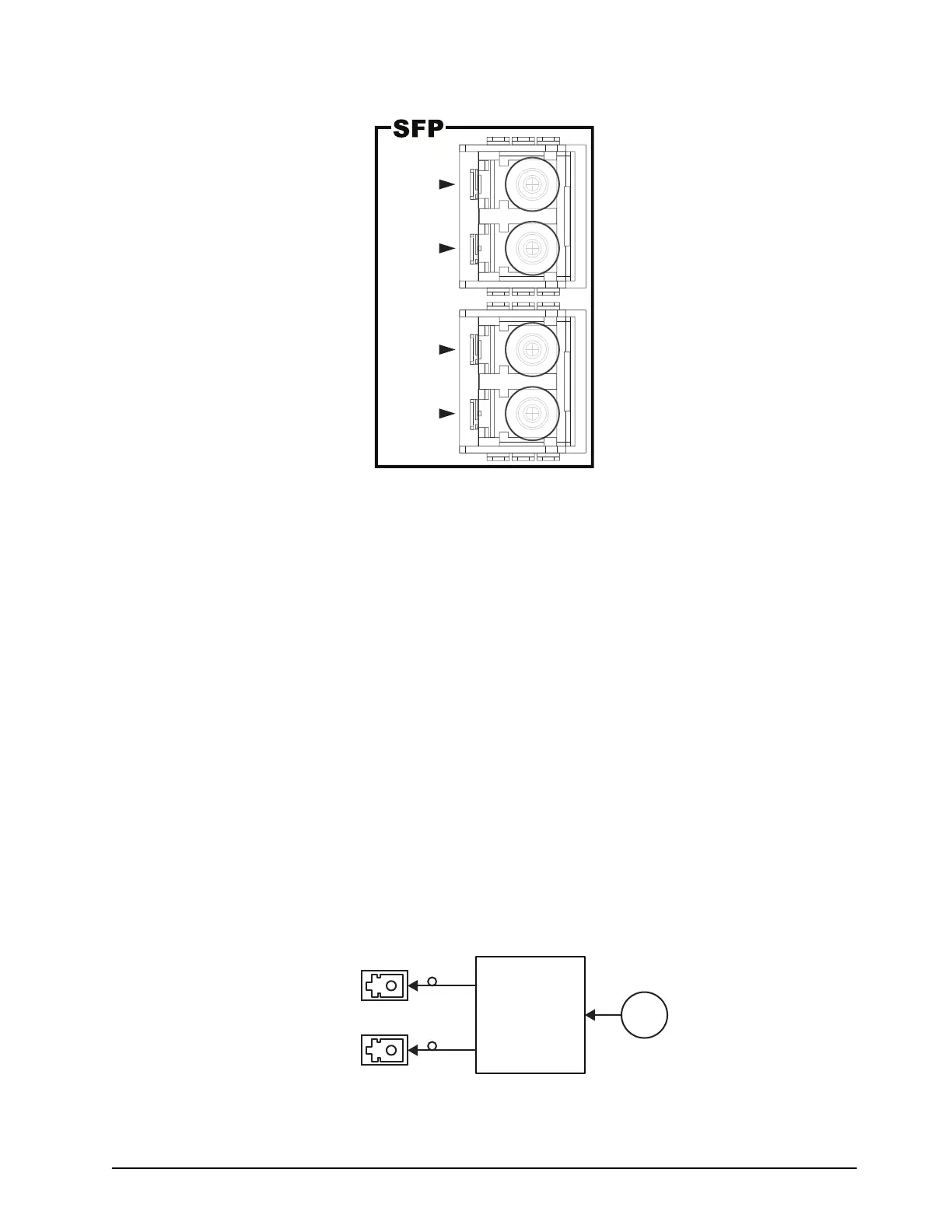

Figure 11 SFP-FIBER-12G-2R Package Outline, Front View — Channel Position
SFP-FIBER-12G-2T
The SFP-FIBER-12G-2T is a dual optical transmitter module that supports data rates up to 12Gbps
for single fiber communications.
 The SFP-FIBER-12G-2T is non-MSA compliant.
Features
• SMPTE 297-2006 compatible for SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI
• Compliant with SFS-8472
• Compliant with SMPTE 297, SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, and SMPTE 2082
• 1310 DFB laser diode with CML logic interface
• Duplex LC receptacle
• Up to 10km on 9/125µm SMF
• Single 3.3V power supply
• Operating temperature range: 0°C to 70°C
• SFP package size: 56.5mm x 13.4mm x 8.6mm
Simplified Block Diagram
Figure 12 SFP-FIBER-12G-2T — High Level Block Diagram
RX
RX
RX
RX
1B
1A
2A
2B
OPTICAL
MODULE
FIBER IN
(1310nm)
FIBER IN
(1310nm)
SDI
OUT
