9) GEAR SELECTION
The Element 75 magnetic drill is fitted with a 2 speed gearbox. The gear is used to reduce the
output speed when using larger cutters.
Slide Selector Position
Speed Controller Setting
Level 1
Level 6
/\
200/min
500/min
\/
70/min
180/min

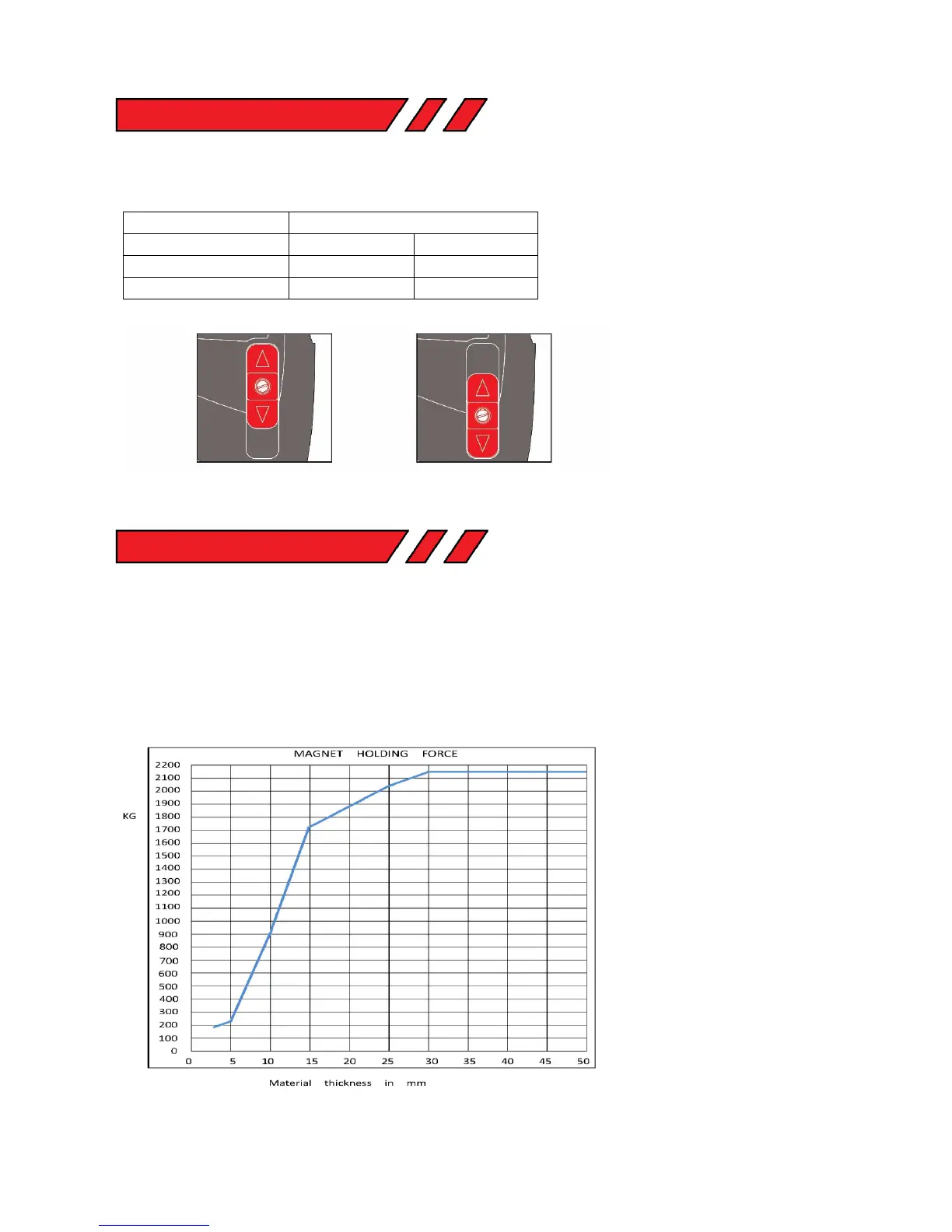

10) MAGNET DETECTION
It is advised that when working on thin material a packing piece should be used to increase the
material thickness under the magnet. Working on thin material without a packing piece will reduce
the magnet holding force.
It is advised that the drill is to be operated on ferrous material 12mm thick and above. Damage to
the magnet base, such as pitting, will affect the strength of the magnet holding force.
Slide Selector Positon Up
Slide Selector Positon Down
