Rotabroach Element 75 - Electrical Wiring Diagram

Element 75 Manual Original Instructions Aug 2016
13

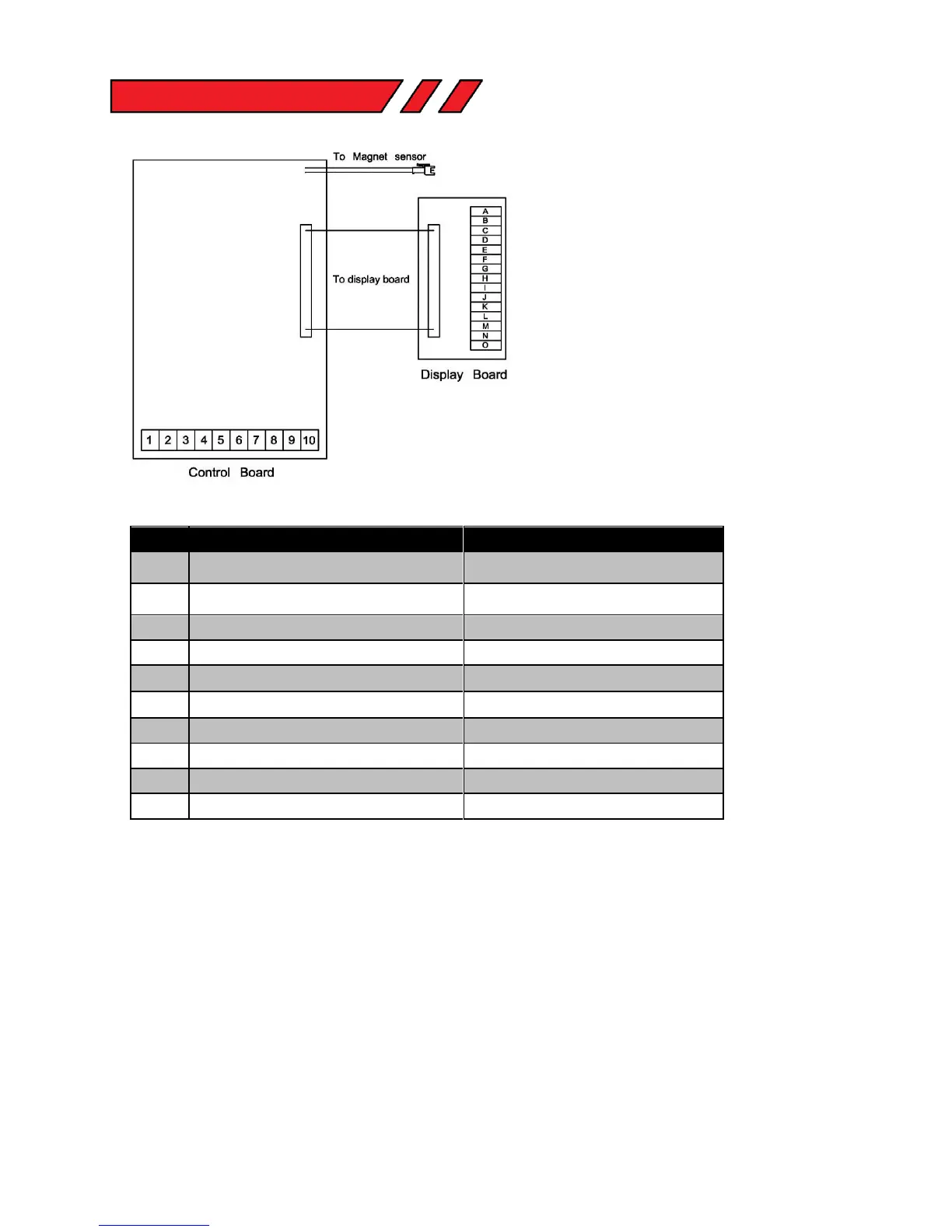

15) WIRING DIAGRAM
No
Function
Wire Colour
1
Mains Live Input
Brown
2
Speed controller module Lead wire
White
3
Speed controller module Lead wire
Red
4
Mains Neutral Input
Blue
5
Magnet Positive Output
230V Red，110V Blue
6
Magnet Negative Output
Black
7
Field coil Lead wire
Blue
8
Field coil Lead wire
Green
9
Carbon brush Lead wire
Black
10
Carbon brush Lead wire
Brown
