15

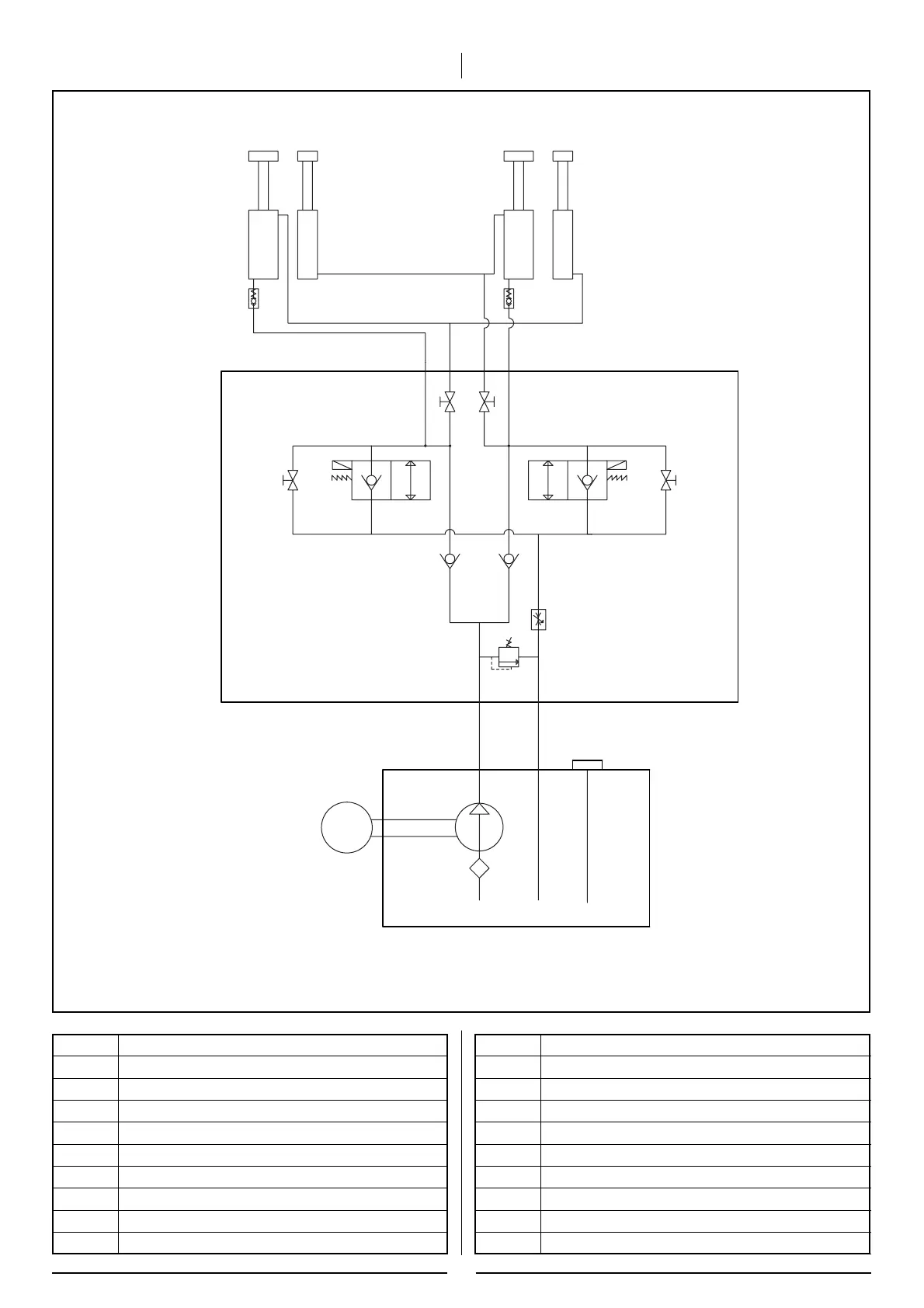

HYDRAULSCHEMA
P
T
77
3
2
1
M
RF
5
6
KRETS A
KRETS B
6
5
4
B2
B1
A2
A1
A1 A2
B2 B1
OM-A2
OM-B2
OM-A1
OM-B1
HYDRAULIC PLAN
pict. - fig.
10
1
2
3
4
5
6
7
OM
RF
M
Sugfilter
6,5 Liters pump
Oljenivåsticka
Övertrycksventil
Tvåvägsventil
Hydraulventil sänkning
Slangbrottsventil
Manuellt öppningsbar ventil
Flödesbegränsningsventil
Trefasmotor 3KW
1
2
3
4
5
6
7
OM
RF
M
Suction filter
6.5l. pump
Oil level dipstick
Full force valve
Unidirectional valve
Lowering electro valve (eo)
Parachute valve
Manual operator
Flow regulator valve
Three phase motor 3 KW
VENTILBLOCK
TANK
